Volume In Volume Profile Not Correct

View Count: 429

[2022-12-29 19:02:19] #1 [Go To First Post]
Stav - Posts: 104
Hi SC, Not sure why the total volume traded per price is not always correct on my footprint(Please see attached image) I have the following setting:- Column 2 Numbers Bar Text : Volume Column 2 Background Type: Volume Profile Column 2 Background Coloring Method Type: Based On Dominant AskVolBidVol - Actual Column 2 Text Coloring Method: None E.g., 65 bid Vol + 62 ask vol = 127 not 128, 68 bid vol + 98 ask vol = 166 not 170, 99 bid vol + 77 ask vol = 176 not 172. Not sure why this is. Kind Regards Stephen


Attachment Deleted. ESH23-CME[M] Renko 5t #9 2022-12-29 13_41_46.113.png / V - Attached On 2022-12-29 18:43:51 UTC - Size: 88.62 KB - 81 views

[2022-12-29 20:17:16] #2 [Go To First Post]
John - SC Support - Posts: 36350
Check to make sure you do not have any volume filtering setup for the chart. Refer to the following: Chart Settings: Volume Filter (Chart >> Chart Settings >> Data Limiting >> Volume Filter Settings menu) If there is no filtering, then we would like for you to delete all the data and redownload it by selecting Edit >> Delete All Data and Download. Let us know if redownloading the data does not fix this. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-12-29 20:44:21] #3 [Go To First Post]
Stav - Posts: 104
Hi John, Exclude >= set to 0 Exclude <= set to 0 Filter Trade Completely set to No I have deleted all data and download but still problem persists. Kind Regards Stephen

[2022-12-29 20:45:41] #4 [Go To First Post]
Stav - Posts: 104

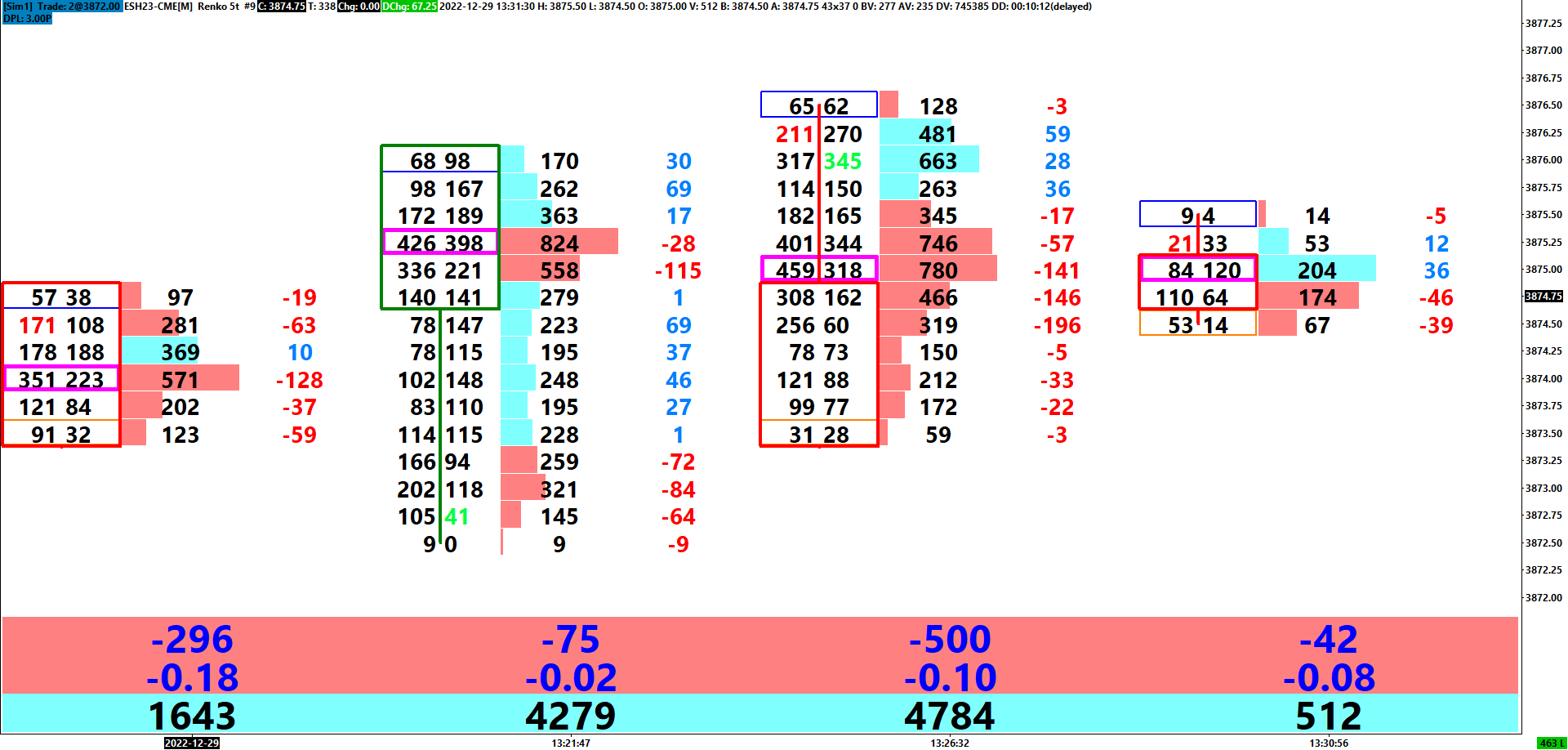

Hi John, Latest screen shot of footprint. Stephen


ESH23-CME[M] Renko 5t #9 2022-12-29 15_43_07.599.png / V - Attached On 2022-12-29 20:45:29 UTC - Size: 86.13 KB - 79 views

[2022-12-29 21:12:00] #5 [Go To First Post]
John - SC Support - Posts: 36350
Please get us a copy of your chart by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-12-30 12:17:53] #6 [Go To First Post]
Stav - Posts: 104
Hi John, Please see attached chartbook - Chartbook5 with just one study, the footprint highlighting the total volume sums error. Thank you most kindly for your help. Kind Regards Stephen


Chartbook5.Cht - Attached On 2022-12-30 12:17:39 UTC - Size: 4.84 KB - 121 views

[2022-12-30 16:12:21] #7 [Go To First Post]
John - SC Support - Posts: 36350
We are not able to see any issue when we open your Chartbook. Check your setting for Global Settings >> Data/Trade Service Settings >> Common Settings >> Intraday Data Storage Time Unit. This needs to be set to 1 Tick in order to ensure that the data in the Numbers Bars is correct. If this is not already 1 tick, then change it to be 1 Tick and then you will need to redownload the data for the symbols in your charts by selecting Edit >> Delete All Data and Download. You just need to do the redownload once for each symbol, not for each chart. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-12-30 19:31:05] #8 [Go To First Post]
Stav - Posts: 104
Hi John, Thank you very much. Did as instructed and all bid/ask volumes total correct. Much appreciated. Kind Regards Stephen

[2022-12-30 19:32:51] #9 [Go To First Post]
John - SC Support - Posts: 36350
Very good. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing
