Cumulative delta numbers bars colour shading
View Count: 292
| [2024-10-08 19:06:38] |
| User650826 - Posts: 9 |
|
Hi, I'm new to SC. I've downloaded a chartbook as part of a course. On the footprint charts there are 3 Numbers bars calculated values for each chart. All looks fine apart from the Delta day colour shading which is permanently red if negative for the day or permanently blue if positive for the day. It should be colour shading to spot divergence between cumulative delta and price. I've tried to solve the issue looking at the formulas in the study settings but I failed.. Please could you help me? I can upload the chartbook for your review if needed. My mind is blowing. Thanks
|
| [2024-10-08 20:58:52] |
| John - SC Support - Posts: 36203 |
|
Please get us an image of what you are seeing by following these instructions: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) Please let us know the specific item you are questioning. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-10-08 21:47:57] |
| User650826 - Posts: 9 |
|
https://www.sierrachart.com/image.php?Image=1728423535884.png Delta day - Cumulative Sum of Volume ask bid volume difference day. I would like the numbers shading ( 3 colours for red and 3 colours for blue) to spot divergence between cumulative delta and price using the same colours for delta and volume in the picture. Thanks |
| [2024-10-08 22:05:39] |
| John - SC Support - Posts: 36203 |
|
That field is coloring as you want. What you need to keep in mind is that the coloring is based on the highest and lowest values for that particular subgraph. The values you are viewing at that time are all relatively close in value, therefore they are all colored the same color. If you scroll back in time, you will see the colors change. But, since this is a cumulative value, as the day goes on the numbers are going to tend toward a particular value, so later in the day you will typically see the same coloring for the shown values. Refer to the following for the description of how the background coloring is done: Numbers Bars: Calculated Values Background Coloring Logic For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-10-09 17:55:54] |
| User650826 - Posts: 9 |
|

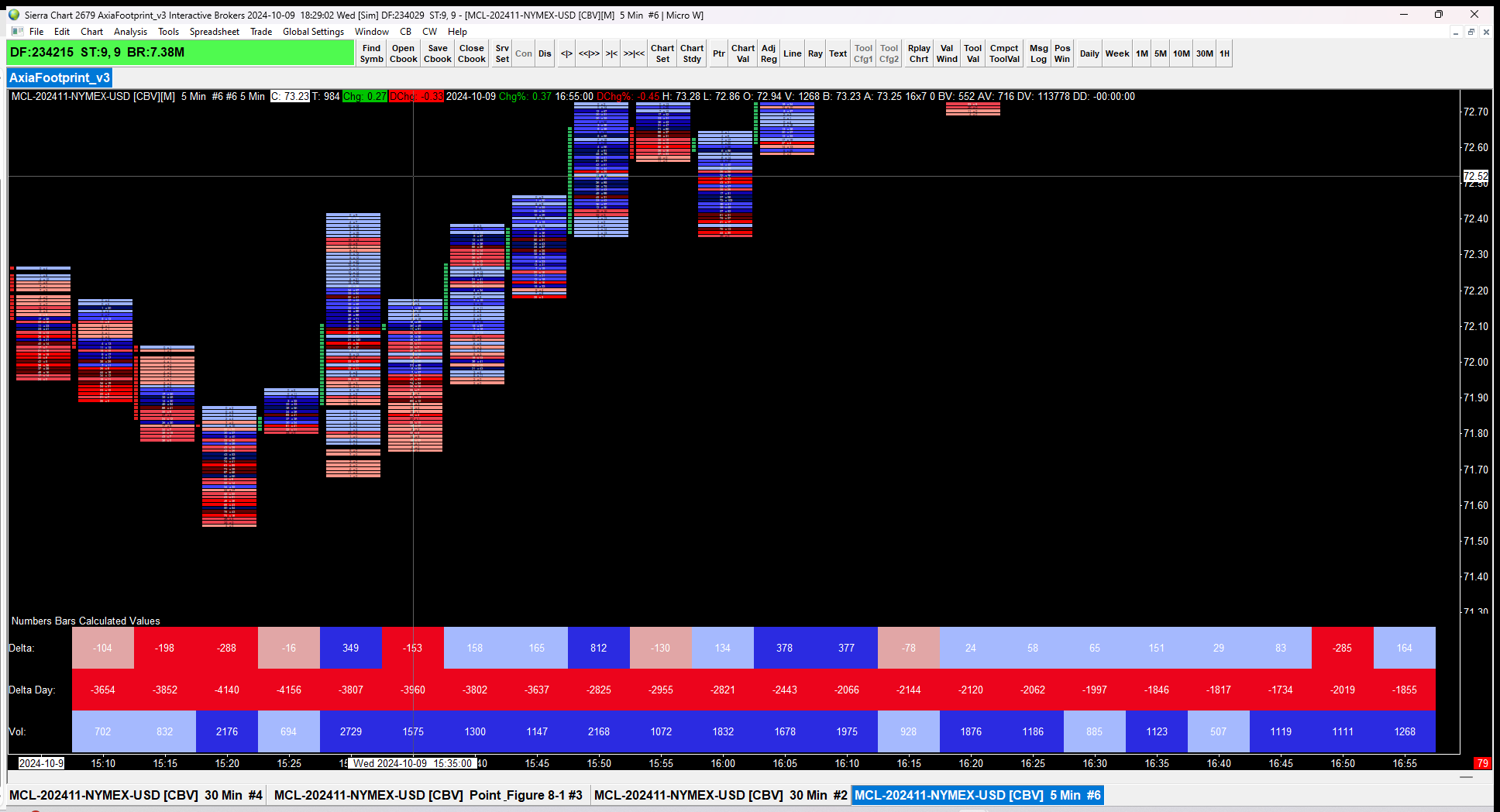

Thank you for helping john but how you can see from the picture there is not shading at all from 3654 to 1855. On the course video I can see Delta 5450 blue, 5478 intense blue, 5409 blue, 5364 blue, 4817 light blue, 4831 light blue. can I upload the chartbook for you to review please? I simply need help from the support service. https://www.sierrachart.com/image.php?Image=1728498543946.png Date Time Of Last Edit: 2024-10-09 18:32:26
|
Private File |
| [2024-10-09 18:39:17] |
| John - SC Support - Posts: 36203 |
|
Please get us a chartbook with just that chart in it by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-10-09 19:15:26] |
| User650826 - Posts: 9 |
|
Attached 5 min footprint chart. Thanks for being patient with me.
|
Attachment Deleted. Private File |
| [2024-10-09 20:01:12] |
| John - SC Support - Posts: 36203 |
|
The chartbook is empty - it does not have a chart in it. Please try again by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-10-09 20:57:22] |
| User650826 - Posts: 9 |
|
John IM not sure ive done it right. Cant find the 5 min footprint anymore. ive uploaded a 30 min footprint which it looks like the cumulative delta works fine (shading). if I change the bar period to 5 min doesnt work anymore. please can you make the same footprint chart but for 5 minute time frame. tanks
|
Attachment Deleted. Private File |
| [2024-10-09 21:41:53] |
| John - SC Support - Posts: 36203 |
|

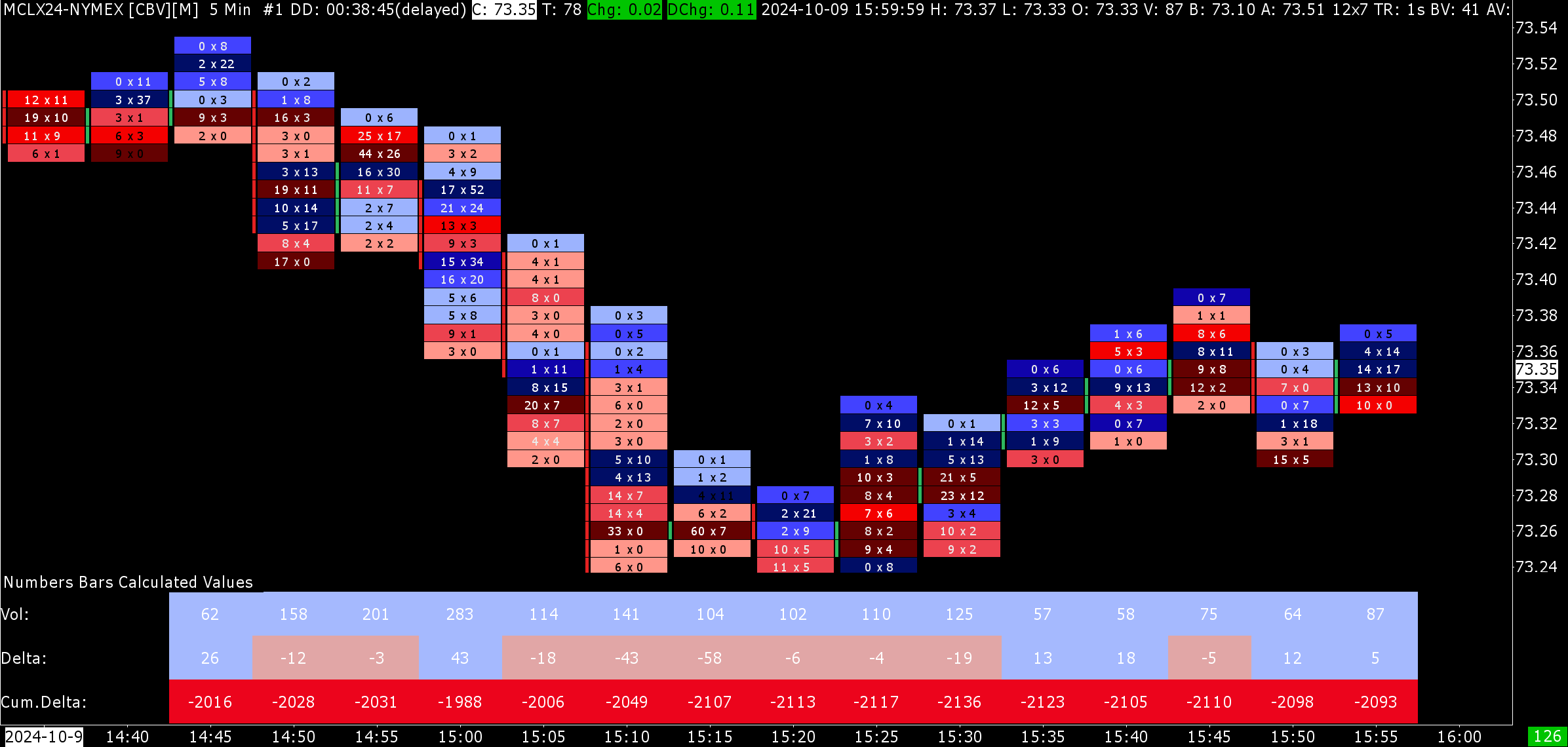

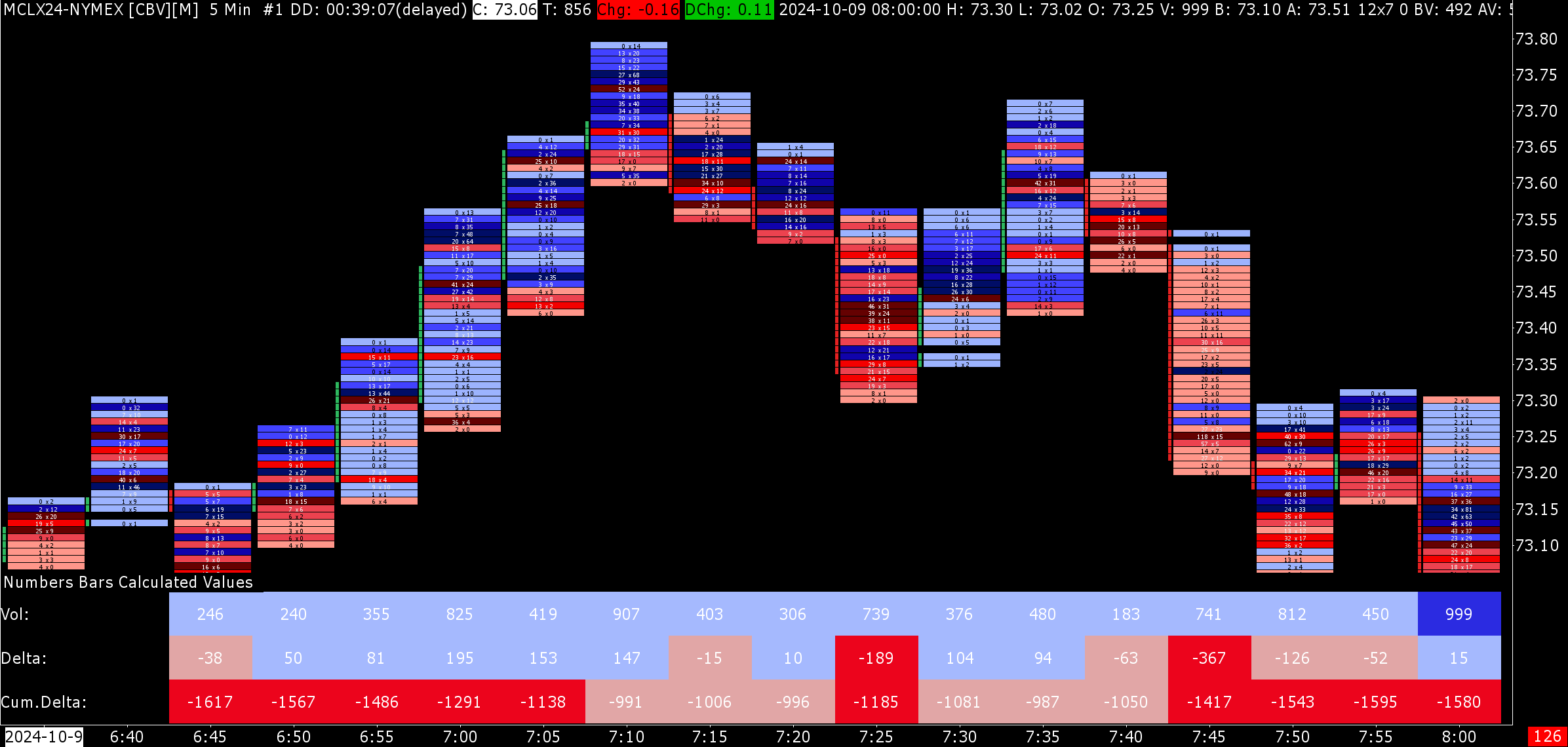

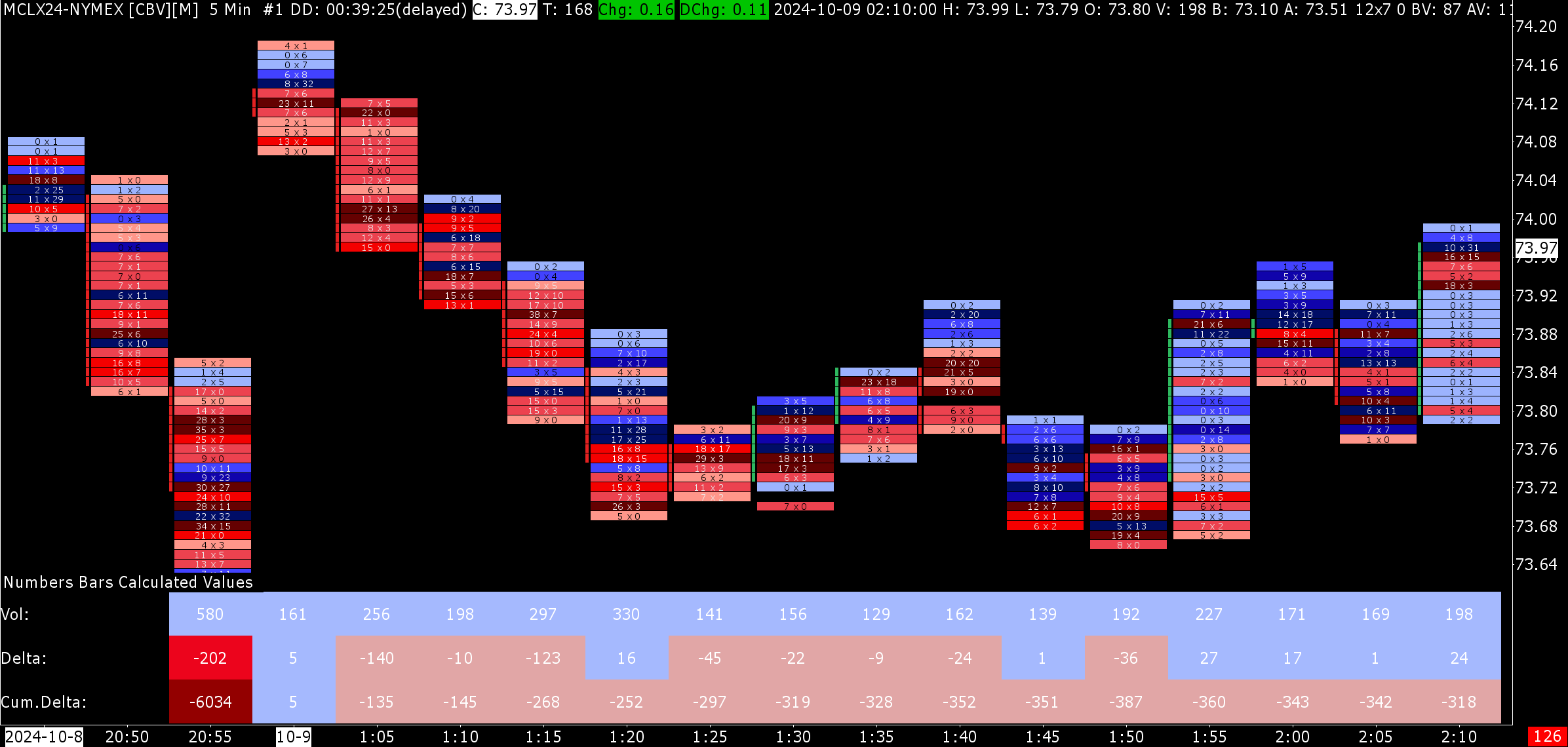

We are not seeing any issue with the chart. We changed it to 5 minute bars and the Cumulative Delta - Day in the Numbers Bars Calculated Values have the color highlighting as we expect. Attached are a few images. - EndOfDay.png: This shows the data at the end of the current day. The background coloring is all the same red color as the data is all around -2000. - EarlyDay.png: This shows the different coloring occurring around 07:00 due to the smaller values at that time. - StartOfTradingDay.png: This shows the coloring at the start of your defined trading day (01:00 according to the Session Times). You will see a blue background where the Cumulative Delta started positive, then changes to pink for the negative values. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
 EndOfDay.png / V - Attached On 2024-10-09 21:40:49 UTC - Size: 150.07 KB - 36 views EarlyDay.png / V - Attached On 2024-10-09 21:40:53 UTC - Size: 167.71 KB - 29 views StartOfTradingDay.png / V - Attached On 2024-10-09 21:40:58 UTC - Size: 186.56 KB - 28 views |
| [2024-10-13 10:37:29] |
| User650826 - Posts: 9 |
|

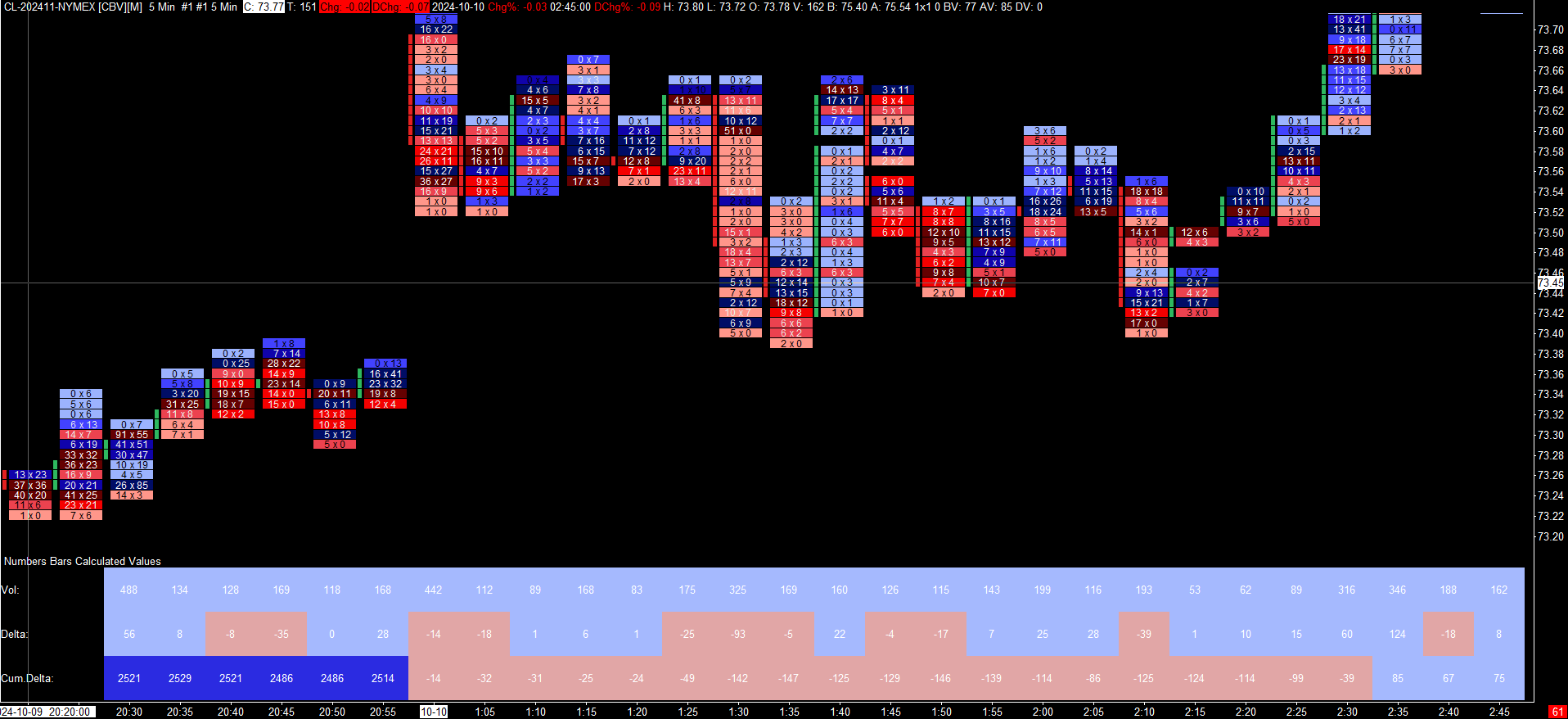

Hi John, just to let you know that i solved the issue switching to the symbol CL from MCL. For whatever reason the cumulative delta wouldn't display correctly on micro contracts. See picture for reference. Thank you https://www.sierrachart.com/image.php?Image=1728815500683.png Date Time Of Last Edit: 2024-10-13 10:37:47
|
| [2024-10-15 05:47:47] |
| User650826 - Posts: 9 |
|
Hi, please can you help me to fix the issue with cumulative delta colour shading and make it working for micro contracts as well? Is there any multiplier that need to be changed for micro contracts?
|
| [2024-10-15 15:09:34] |
| John - SC Support - Posts: 36203 |
|
It does not make any sense that it works for CL, but not for MCL. Please get us an image of what you see for the MCL from that exact same time as your last image (where it switches over the trading day). For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-10-15 17:47:32] |
| User650826 - Posts: 9 |
|

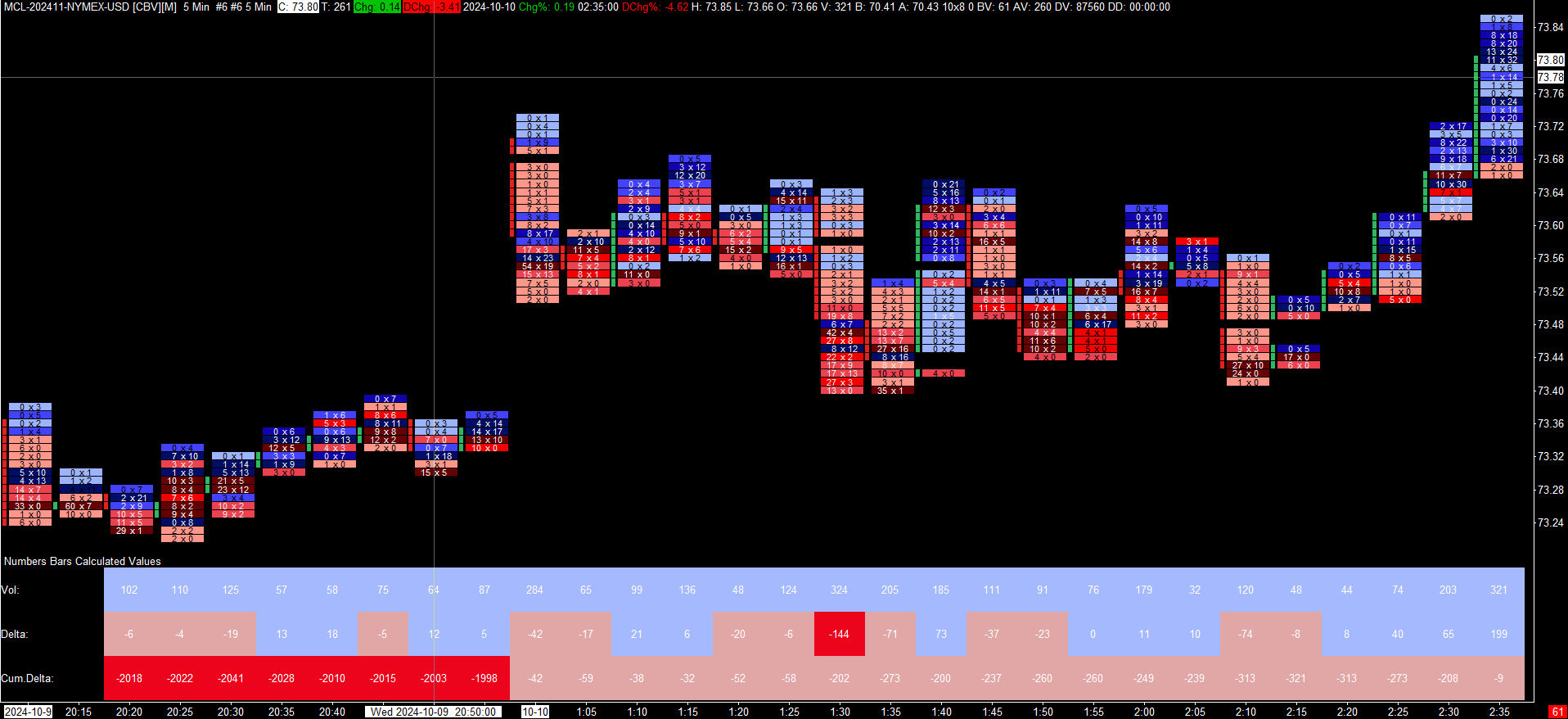

Attached same picture but MCL https://www.sierrachart.com/image.php?Image=1729014322532.png |
| [2024-10-15 18:11:08] |
| John - SC Support - Posts: 36203 |
|
MCL is working fine according to that image. You can see the Dark Red where the numbers are much lower (around -2000) and then changes to pink when the new trading day starts and the values are in the tens and low hundreds.
