[User Discussion] - Zig Zag Alesrts

View Count: 387

[2024-04-04 12:05:24] #1 [Go To First Post]
User360283 - Posts: 504
I want to generate a Zig Zag a;ert when the slope of SG! changers from up to down and from down to up. Please help Thanks

[2024-04-04 15:43:29] #2 [Go To First Post]
John - SC Support - Posts: 36238
You need to use the Zig Zag Oscillator subgraph for this. When the oscillator changes from negative to positive, or positive to negative is when you have an inflection point in the Zig Zag. Therefore, to get an alert when a Zig Zag changes direction, you would use a formula like the following: =OR(AND(ID1.SG9[-1] < 0, ID1.SG9 > 0), AND(ID1.SG9[-1] > 0, ID1.SG9 < 0)) Where ID1 is the ID of the Zig Zag study and SG9 is the Zig Zag Oscillator subgraph. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2024-04-08 00:57:12] #3 [Go To First Post]
User360283 - Posts: 504
Thanks for your help. How can I have the alert draw a vertical line I tried color bar but it is not what I want Thaks

[2024-04-08 13:58:19] #4 [Go To First Post]
User360283 - Posts: 504
Suggestion There should be several standard visual arterial including a vertical line and others that are available sitar to the Alert Sounds so that a study alert would also generate a visual indication as well as a sound. This would eliminate the need to code two studies for one condition

[2024-04-08 19:22:36] #5 [Go To First Post]
Sawtooth - Posts: 4120
How can I have the alert draw a vertical line Use the formula in post #2 on the Alerts tab of the Color Bar Based On Alert Condition study, then use the Background draw style, set to Width 2. This is the best available. Unfortunately, there is no Vertical Line draw style.

[2024-04-08 20:53:28] #6 [Go To First Post]
User360283 - Posts: 504
How about Sierra creating a new study that draws a full line? I think it would be widely appreciated. Thanks

[2024-04-09 09:39:53] #7 [Go To First Post]
User360283 - Posts: 504
I can't find any "wide". How about simply adding a Vertical Line option? Thanks

[2024-04-09 13:50:16] #8 [Go To First Post]
Sawtooth - Posts: 4120

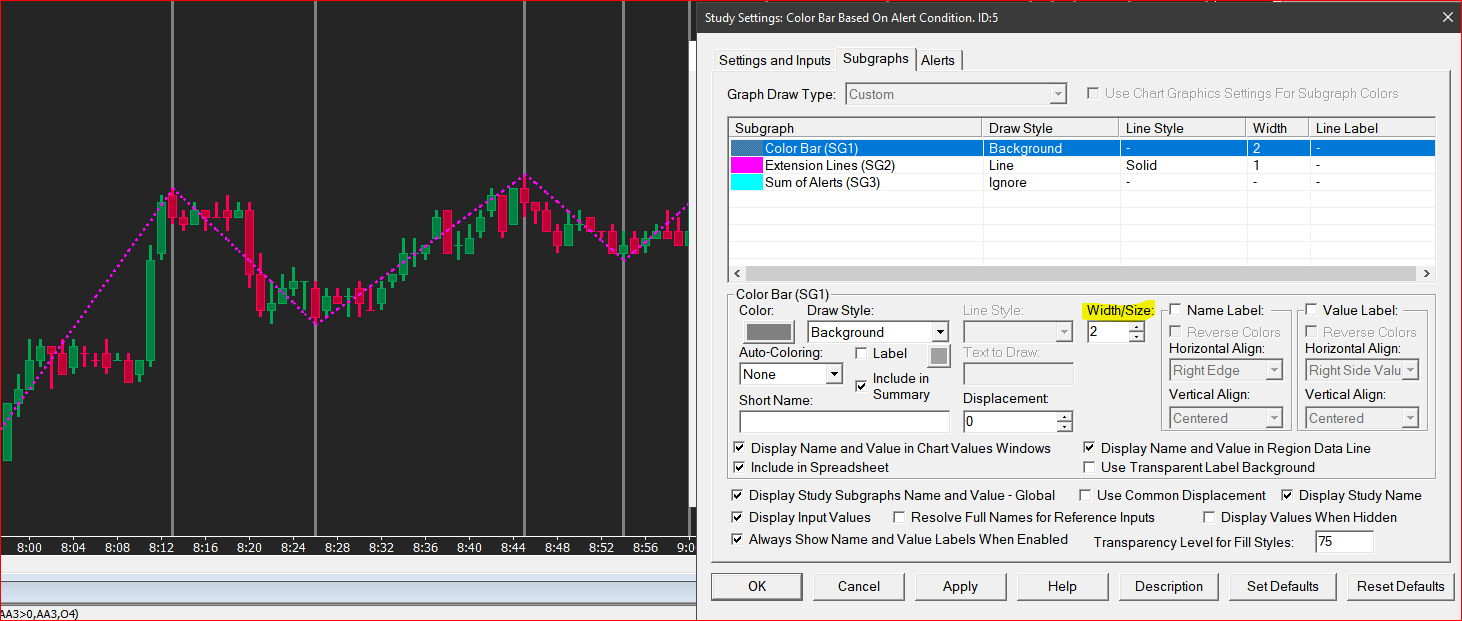

I can't find any "wide". See attached. Note: I am not SC Engineering; I am only a user.


ZZ Vertical lines.PNG / V - Attached On 2024-04-09 13:50:11 UTC - Size: 62.7 KB - 52 views
