Vwap not starting where I specify
View Count: 281
| [2024-01-23 20:50:20] |
| krypto101 - Posts: 33 |
|

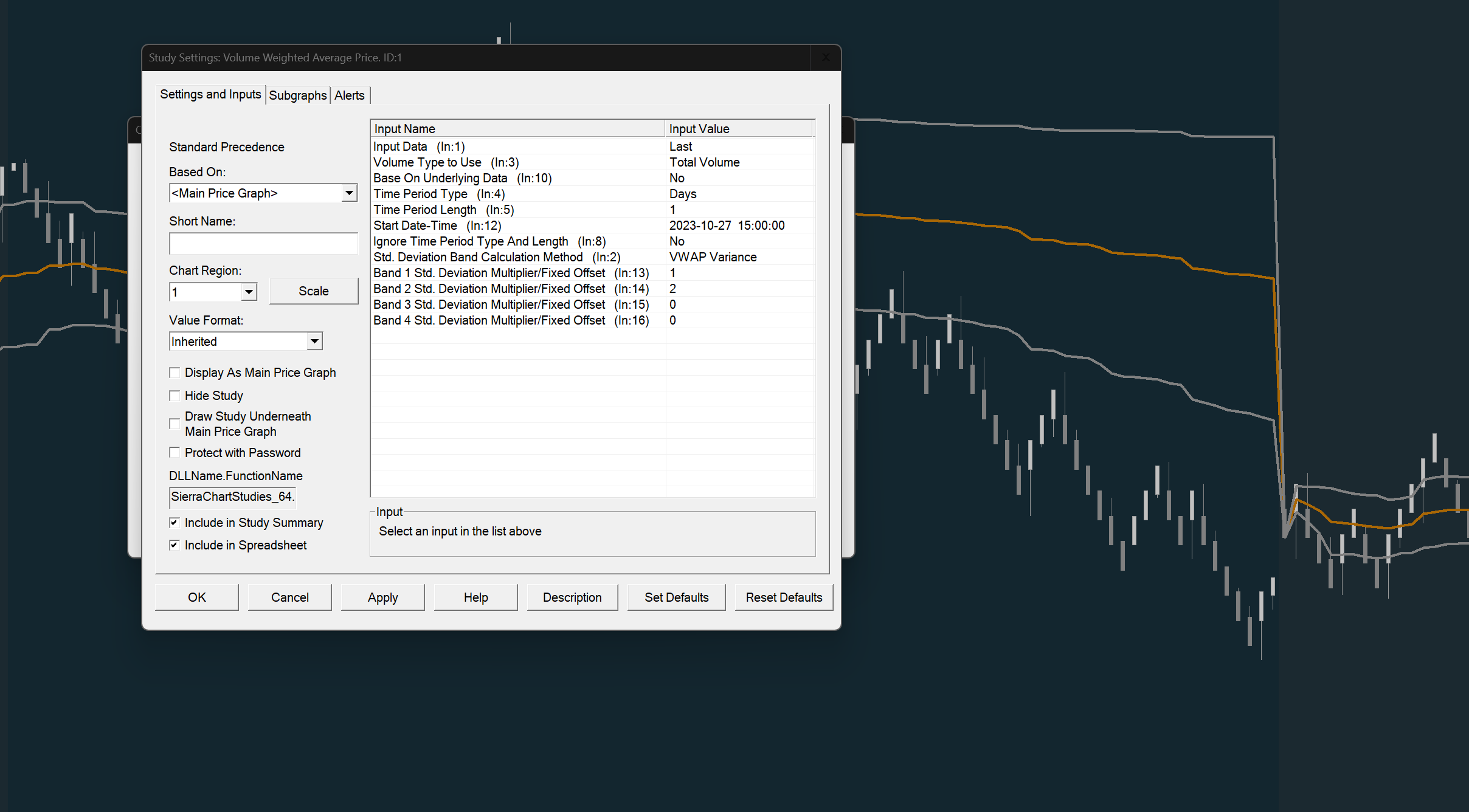

Hi, Trying to use Vwap Bands and I like it to start at the beginning of ETH Globex (3:00PM PT) for the ES Mini and continue through out the RTH pit session. I messed around with the study "time" but no luck, Vwap starts at the end of the previous pit session at 1:15PM PT. |
 654689.png / V - Attached On 2024-01-23 20:49:55 UTC - Size: 363.78 KB - 57 views 56353653.png / V - Attached On 2024-01-23 20:49:59 UTC - Size: 66.07 KB - 52 views |
| [2024-01-23 21:41:52] |
| John - SC Support - Posts: 36284 |
|
Use the "Volume by Price" study and set the Input for "Draw Mode" to "POC, VAH, VAL Lines Only" and then in the Subgraphs set the Draw Style for the "POC", "VAH", and "VAL" to be "Hidden". Then set the Volume by Price time as you want in order to get the VWAP as you want it. Refer to the information here: Volume By Price Study: Draw Mode For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-24 09:23:57] |
| krypto101 - Posts: 33 |
|

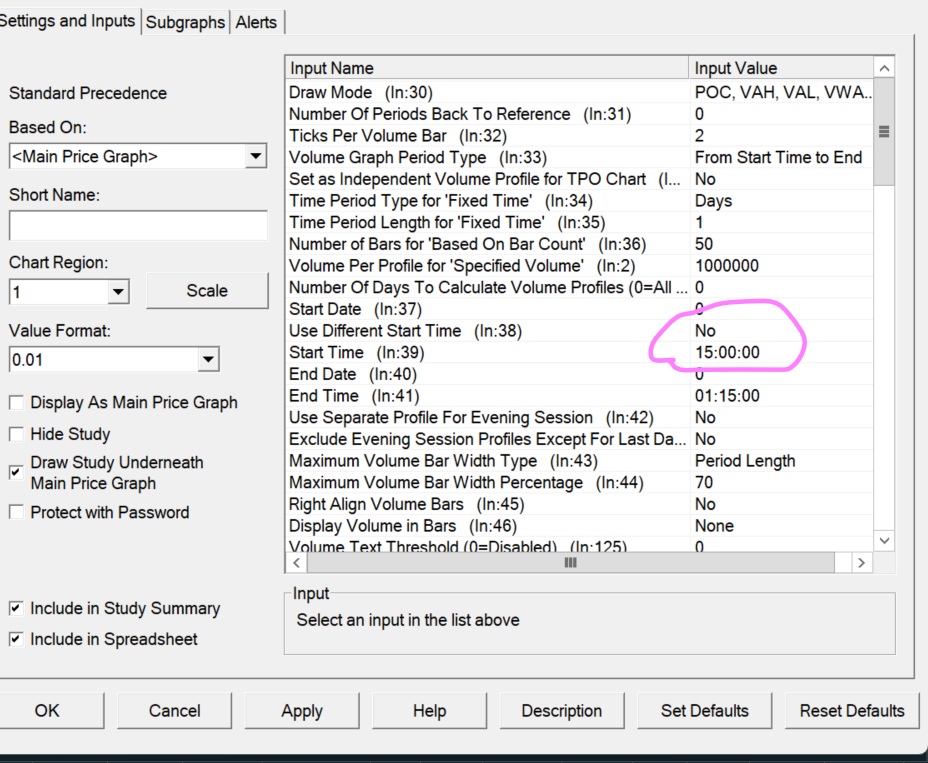

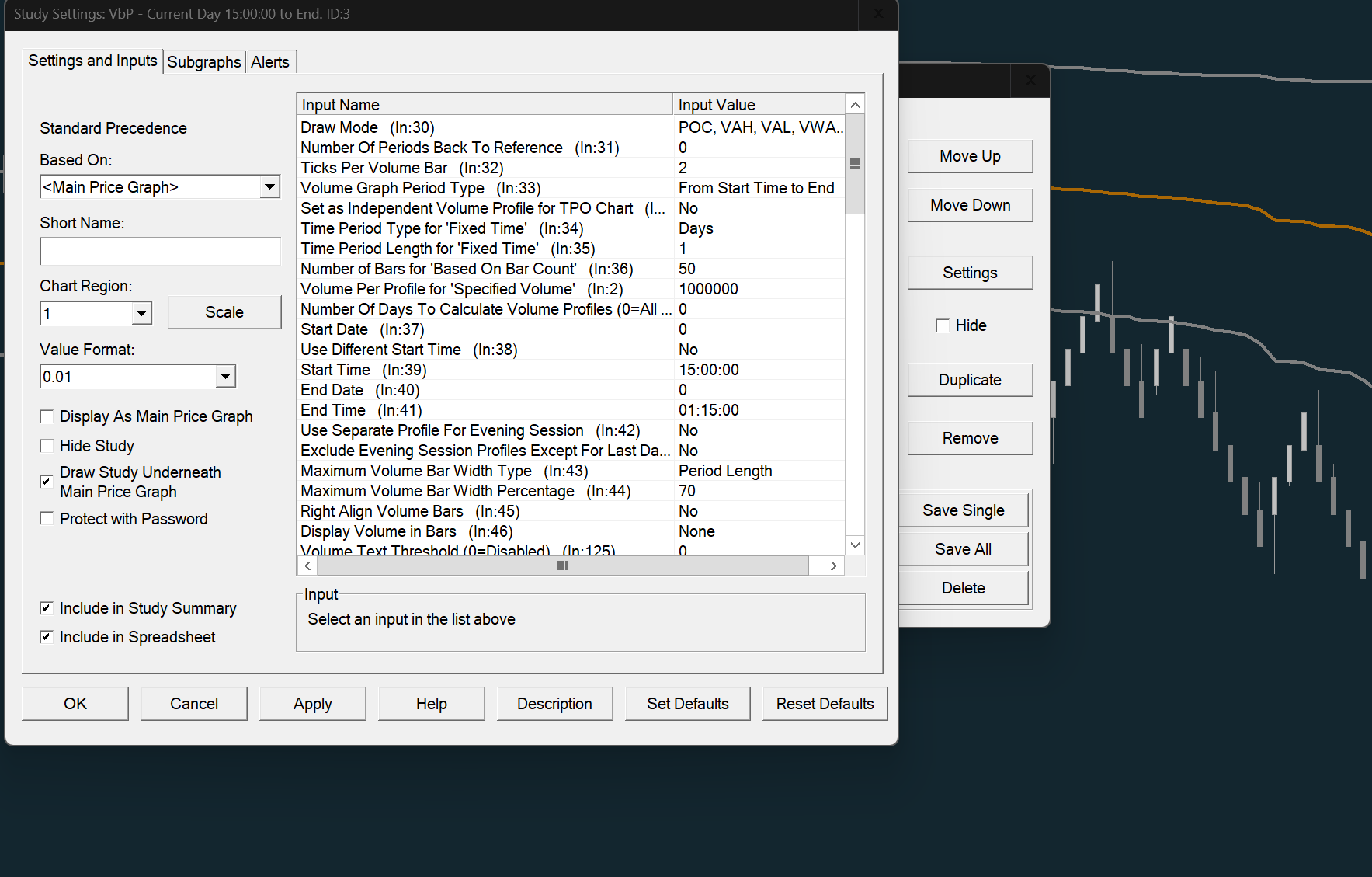

Interesting hack but I must be doing something wrong. The Draw Type was set to POC,VAH,VAL lines only and made hidden. The Vol Graph Period Type was set to: "From start time to end time" I've tried different graph options but no luck with making Vwap conform to those set times Date Time Of Last Edit: 2024-01-24 09:25:00
|
| 657413658.png / V - Attached On 2024-01-24 09:23:51 UTC - Size: 413.5 KB - 53 views |
| [2024-01-24 16:22:24] |
| John - SC Support - Posts: 36284 |
|
You have the start time set to 15:00, but we do not see that time in your screenshot. You would need to scroll back a bit and see where it is starting.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-24 19:00:07] |
| krypto101 - Posts: 33 |
|

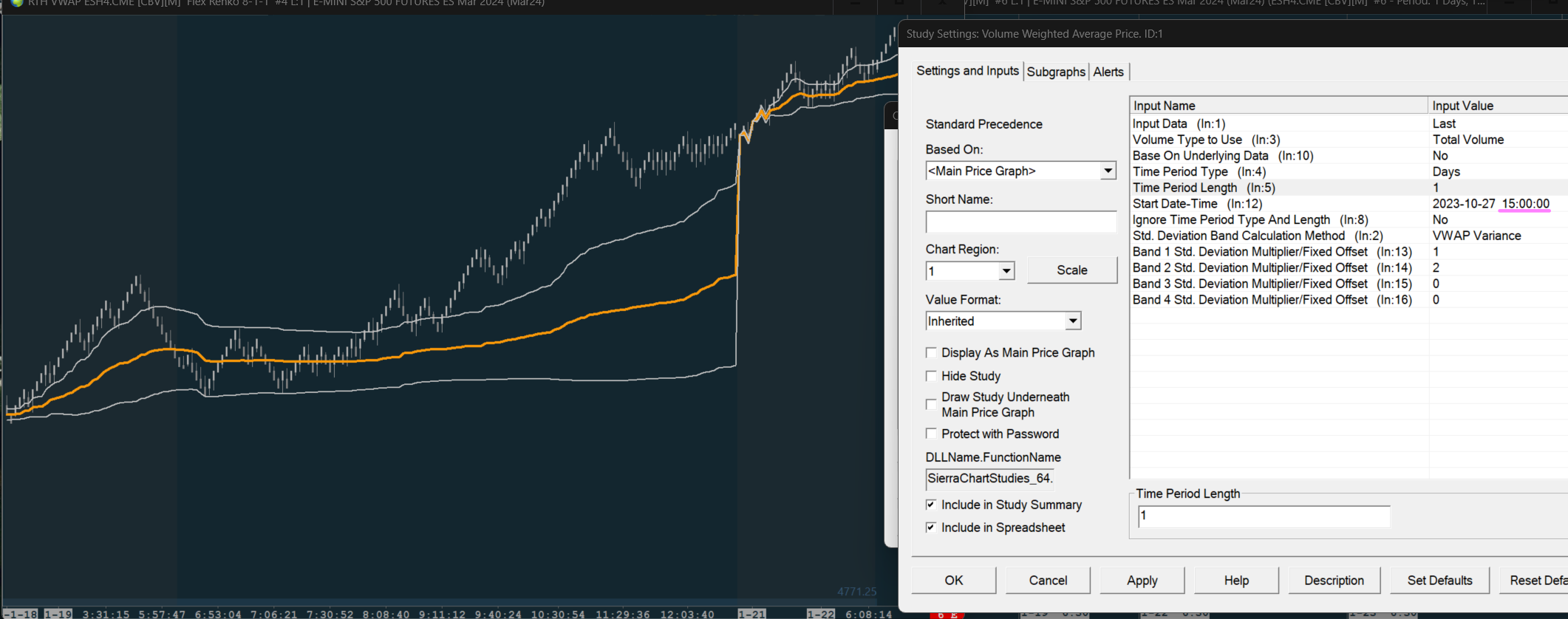

Here ya go, starts at 15:00
|
| [2024-01-24 21:46:07] |
| John - SC Support - Posts: 36284 |
|
You state that the VWAP is not starting at 15:00 in your chart, but the chart image you gave us did not go back to 15:00, so we could not see that it actually did not start at that time. Please scroll your chart back so that 15:00 is visible and then get us an image so we can see what is occurring with your VWAP. Please get us an image by following these instructions: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-26 10:25:21] |
| krypto101 - Posts: 33 |
|

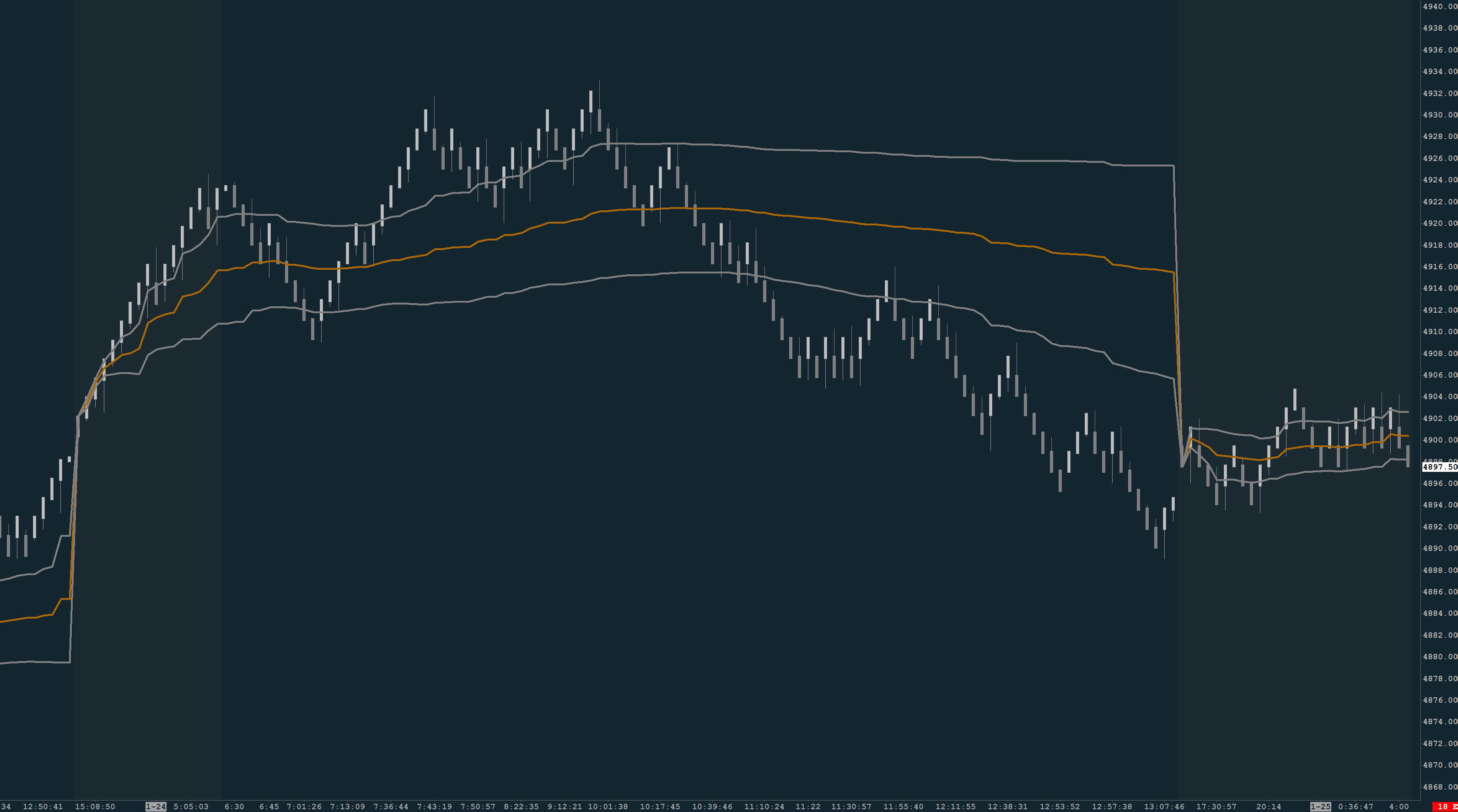

Vol by Price doesn't seem to control where the Vwap study starts and ends
|
| 151515.png / V - Attached On 2024-01-26 10:19:03 UTC - Size: 104.31 KB - 46 views Screenshot 2024-01-26 022006.png / V - Attached On 2024-01-26 10:21:29 UTC - Size: 142.89 KB - 43 views Screenshot 2024-01-26 021941.png / V - Attached On 2024-01-26 10:22:17 UTC - Size: 160.33 KB - 41 views |
| [2024-01-26 16:07:34] |
| John - SC Support - Posts: 36284 |
|
The Volume by Price does not control the "Volume Weighted Average Price" study. We are telling you to use the "Volume by Price" with the setup as we mentioned above, which will give you a VWAP line from the Volume by Price study. You would need to remove the "Volume Weighted Average Price" study. Please do this in combination with what we told you in Post 3 and let us know if you are still not getting the VWAP line starting where you want (from the VbP study). For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
