Number bars calculated values 2 not painting according to % volume
View Count: 520
| [2021-06-29 18:13:58] |
| Alexander Prevalsky - Posts: 4 |
|

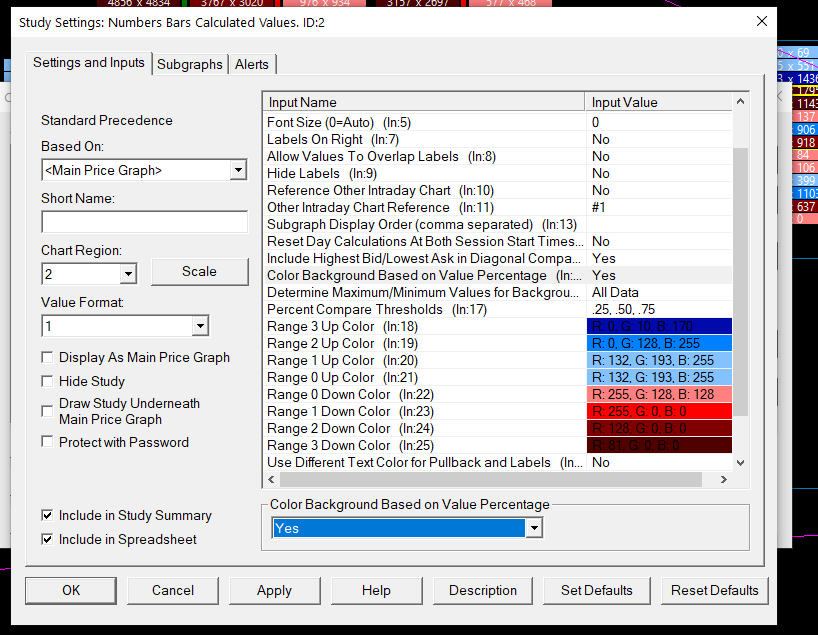

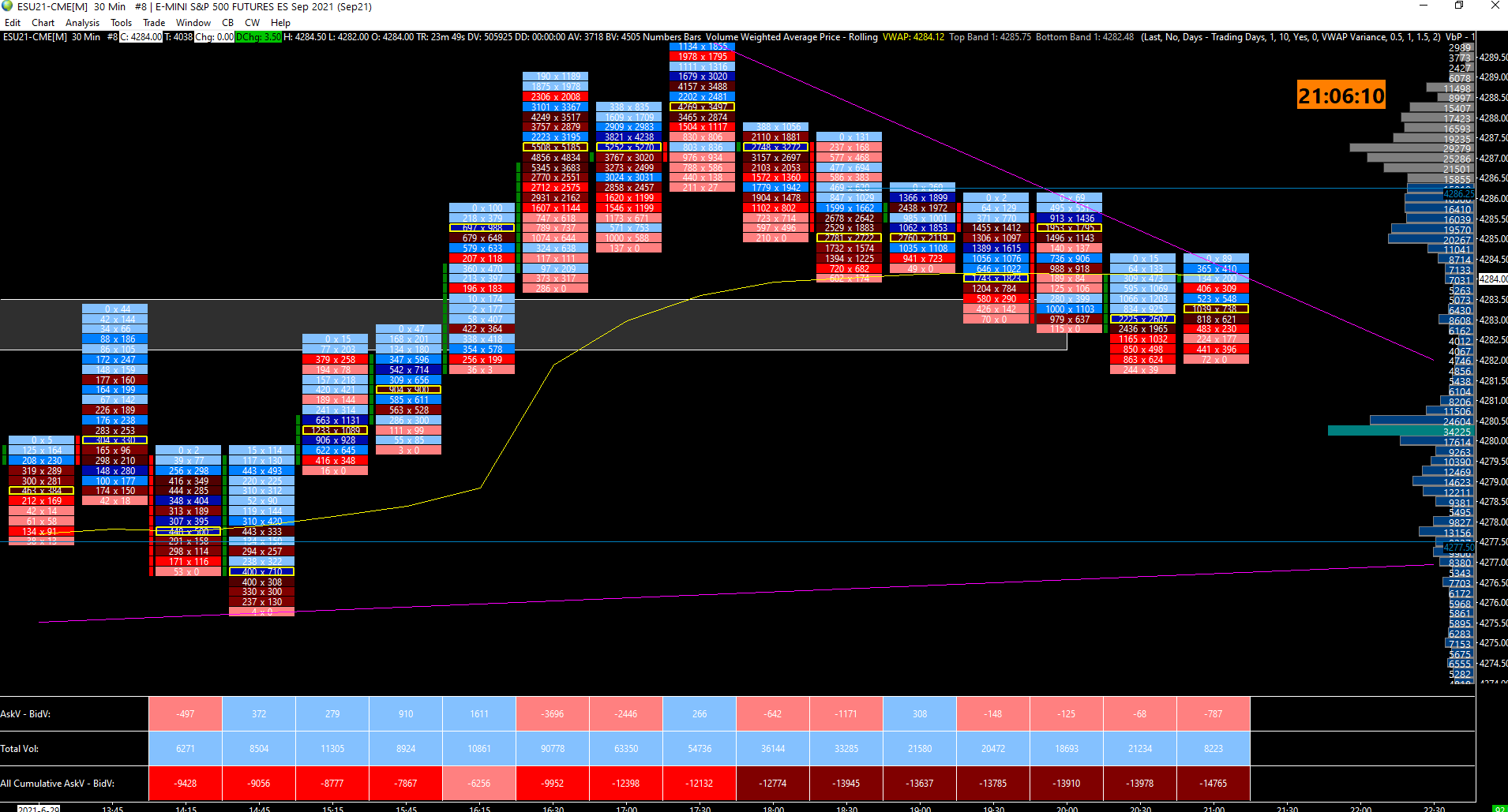

Hello, I am having trouble with the number bars calculated values 2 indicator not painting the proper color based on volume %. A 63 350 volume bar and a 8223 are both painted the same color. I am attaching a screenshot of how the indicator looks like as well as the settings I am running currently. How do I resolve this? |
 Screenshot 2021-06-29 210657.png / V - Attached On 2021-06-29 18:11:41 UTC - Size: 197.71 KB - 177 views Screenshot 2021-06-29 210703.png / V - Attached On 2021-06-29 18:11:48 UTC - Size: 83.33 KB - 171 views |
| [2021-06-29 18:24:06] |
| John - SC Support - Posts: 38222 |
|
First of all, your Range 0 Up Color and your Range 1 Up Color are the same color. Second, there must be a bar that has a Total Volume that is much larger than 90778 somewhere in the chart. As the values that are showing are in the 0-50% range. You would need to look through and find the highest value to understand where these fall in the scale. Also, keep in mind, the range does not start at 0, it will depend on the lowest value for that subgraph. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-06-29 19:52:11] |
| Alexander Prevalsky - Posts: 4 |
|

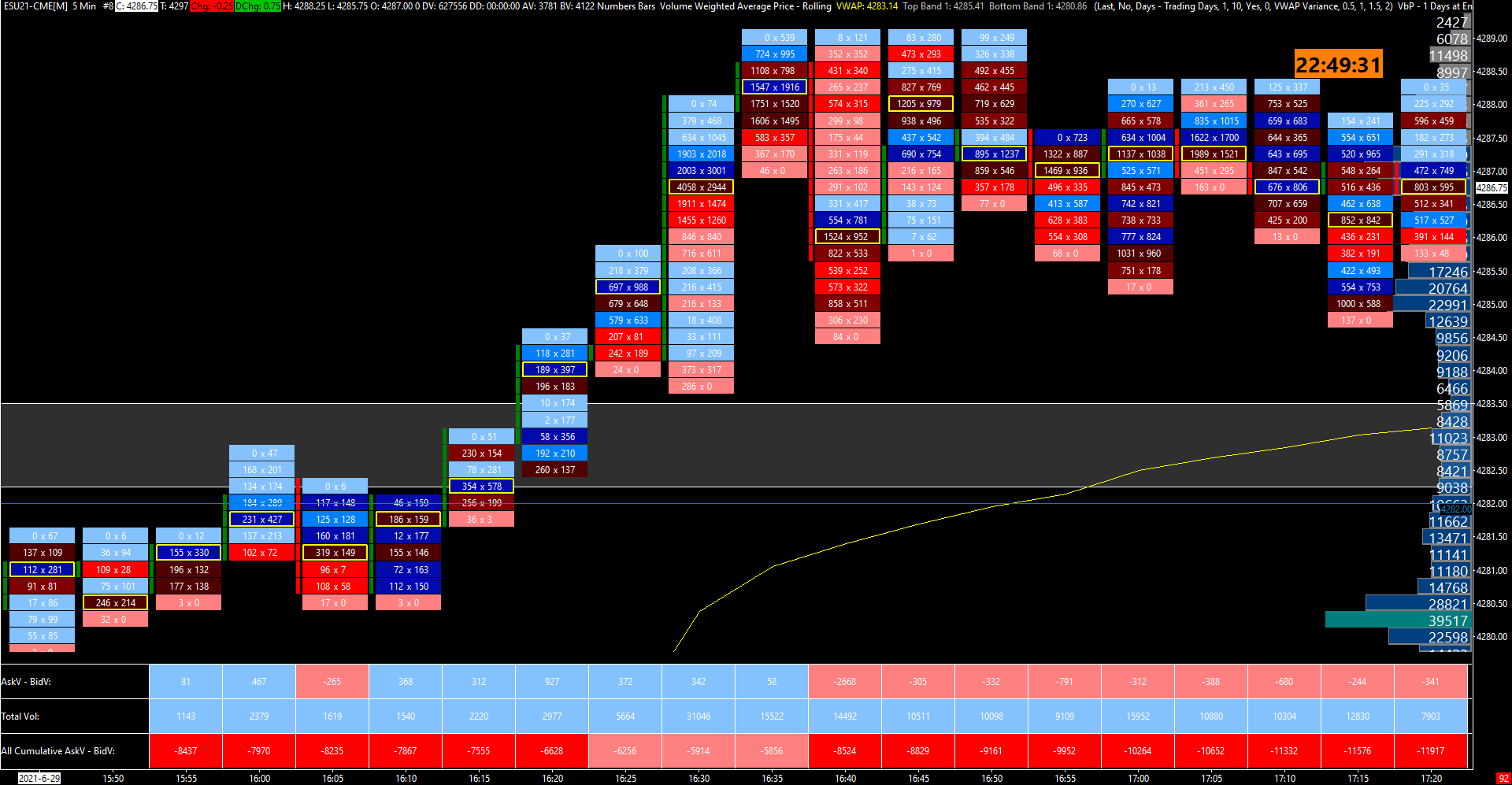

Hello, Thank you for the reply. I understand, but here's another example, at today's open (16:30) with 5 minute rotations this time. The bar prior the open has 6 times less volume (5664 vs. 31046), the 5 min bar following the open has 2x less. They are all colored the same. I specifically changed the 25-50% color to a darker blue, yet there is no difference. The open volume, thus far, has been the highest so according to my color scale, it should be darkest. http://www.sierrachart.com/image.php?Image=1624996172310.png Edit: I tried changing the data used from "All data" to "Daily Data" and it now shows colors properly. If I understand right, it was previously taking into account the data from previous days and current day altogether, while right now it only accounts for current day data (based on the session time I have input in my chart settings). Did I get it right? Date Time Of Last Edit: 2021-06-29 19:59:35
|
| [2021-06-29 20:02:34] |
| John - SC Support - Posts: 38222 |
|
Edit: I tried changing the data used from "All data" to "Daily Data" and it now shows colors properly. If I understand right, it was previously taking into account the data from previous days and current day altogether, while right now it only accounts for current day data (based on the session time I have input in my chart settings). Did I get it right?
Correct. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
