#include "sierrachart.h"
SCDLLName("SomeTest")
SCSFExport scsf_TradingExample(SCStudyInterfaceRef sc)
{
  //Define references to the Subgraphs and Inputs for easy reference
  SCSubgraphRef BuyEntrySubgraph = sc.Subgraph[0];
  SCSubgraphRef BuyExitSubgraph = sc.Subgraph[1];
  SCSubgraphRef SellEntrySubgraph = sc.Subgraph[2];
  SCSubgraphRef SellExitSubgraph = sc.Subgraph[3];

  SCInputRef Enabled = sc.Input[0];

  if (sc.SetDefaults)
  {
    // Set the study configuration and defaults.

    sc.GraphName = "Trading Example";

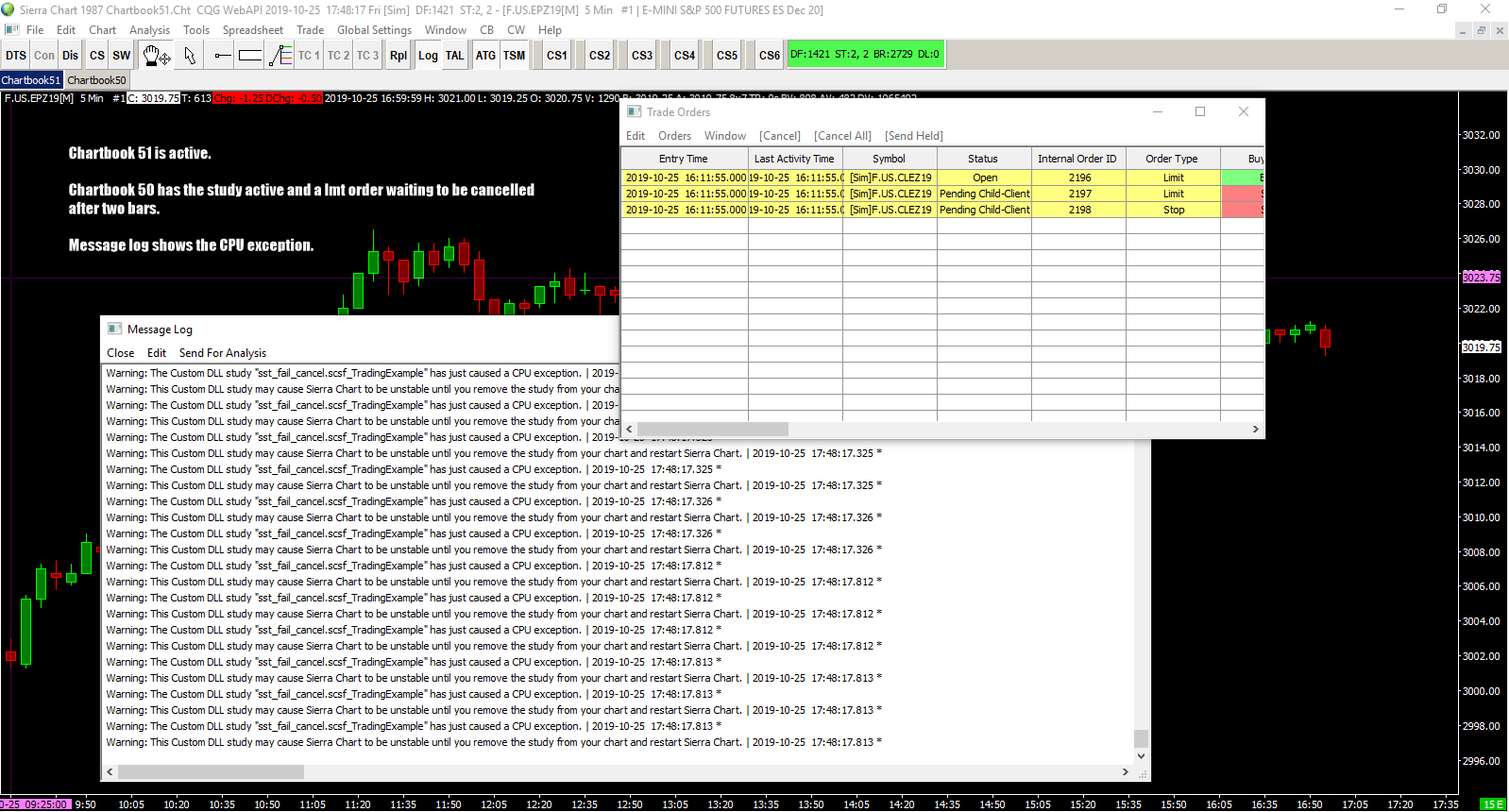

    sc.StudyDescription = "CPU exception when cancel order is executed and user is looking at another chartbook";

    BuyEntrySubgraph.Name = "Buy Entry";
    BuyEntrySubgraph.DrawStyle = DRAWSTYLE_ARROW_UP;
    BuyEntrySubgraph.PrimaryColor = RGB(0, 255, 0);
    BuyEntrySubgraph.LineWidth = 2;
    BuyEntrySubgraph.DrawZeros = false;

    BuyExitSubgraph.Name = "Buy Exit";
    BuyExitSubgraph.DrawStyle = DRAWSTYLE_ARROW_DOWN;
    BuyExitSubgraph.PrimaryColor = RGB(255, 128, 128);
    BuyExitSubgraph.LineWidth = 2;
    BuyExitSubgraph.DrawZeros = false;

    SellEntrySubgraph.Name = "Sell Entry";
    SellEntrySubgraph.DrawStyle = DRAWSTYLE_ARROW_DOWN;
    SellEntrySubgraph.PrimaryColor = RGB(255, 0, 0);
    SellEntrySubgraph.LineWidth = 2;
    SellEntrySubgraph.DrawZeros = false;

    SellExitSubgraph.Name = "Sell Exit";
    SellExitSubgraph.DrawStyle = DRAWSTYLE_ARROW_UP;
    SellExitSubgraph.PrimaryColor = RGB(128, 255, 128);
    SellExitSubgraph.LineWidth = 2;
    SellExitSubgraph.DrawZeros = false;

    Enabled.Name = "Enabled";
    Enabled.SetYesNo(0);
    Enabled.SetDescription("This input enables the study and allows it to function. Otherwise, it does nothing.");

    // This is false by default. Orders will be simulated.
    sc.SendOrdersToTradeService = false;

    // These variables are not used when trading another Symbol and/or Trade Account compared to what the chart is set to.
    sc.AllowMultipleEntriesInSameDirection = true;
    sc.MaximumPositionAllowed = 20000;
    sc.SupportReversals = true;
    sc.AllowOppositeEntryWithOpposingPositionOrOrders = true;
    sc.SupportAttachedOrdersForTrading = false;
    sc.UseGUIAttachedOrderSetting = false;
    sc.CancelAllOrdersOnEntriesAndReversals= true;
    sc.AllowEntryWithWorkingOrders = true;
    sc.CancelAllWorkingOrdersOnExit = true;

    //
    sc.AllowOnlyOneTradePerBar = false;

    //This needs to be set to true when a trading study uses trading functions.
    sc.MaintainTradeStatisticsAndTradesData = true;

    sc.ReceiveNotificationsForChangesToOrdersPositionsForAnySymbol = true;

    sc.AutoLoop = true;
    sc.GraphRegion = 0;

    return;
  }

  //These must be outside of the sc.SetDefaults code block since they have a dependency upon an actual chart object existing. They are not used in this example.
  sc.SupportTradingScaleIn = 0;
  sc.SupportTradingScaleOut = 0;


  int& r_BarIndexOfOrder = sc.GetPersistentInt(1);
  int& r_InternalOrderID = sc.GetPersistentInt(2);
  int& r_PerformedOrderModification = sc.GetPersistentInt(3);

  if (!Enabled.GetYesNo())
  {
    r_BarIndexOfOrder = 0;
    r_InternalOrderID = 0;
    r_PerformedOrderModification = 0;

    return;
  }

  if (sc.LastCallToFunction)
    return;//nothing to do

  if (sc.ChartIsDownloadingHistoricalData(sc.ChartNumber)
    || sc.IsFullRecalculation
    || sc.ServerConnectionState != SCS_CONNECTED
    )
    return;

  // Run the below code only on the last bar
  if (sc.Index < sc.ArraySize - 1)
    return;

  s_SCPositionData PositionData;
  sc.GetTradePosition(PositionData);

  if (PositionData.PositionQuantity == 0 && PositionData.WorkingOrdersExist == 0 && r_InternalOrderID == 0)
  {
    // Create an s_SCNewOrder object.
    s_SCNewOrder NewOrder;
    NewOrder.OrderQuantity = 1;
    NewOrder.OrderType = SCT_ORDERTYPE_LIMIT;
    NewOrder.TimeInForce = SCT_TIF_DAY;
    NewOrder.Price1  = sc.Low[sc.Index] - 100 * sc.TickSize;

    //Specify a Target and a Stop with 8 tick offsets. Only 1 Target and 1 Stop can be supported when trading a Symbol and Trade Account different than the chart the trading system study is applied to.
    NewOrder.Target1Offset = 8*sc.TickSize;
    NewOrder.Stop1Offset = 8*sc.TickSize;

    // If this is left at the default of 0, then it will be automatically set.
    NewOrder.OCOGroup1Quantity = 1;

    int Result = static_cast<int>(sc.BuyOrder(NewOrder));

    if (Result > 0)
    {
      r_BarIndexOfOrder = sc.Index;
      r_InternalOrderID = NewOrder.InternalOrderID;
    }

  }
  else if (r_InternalOrderID != 0)
  {
    s_SCTradeOrder ExistingOrderDetails;
    if (sc.GetOrderByOrderID(r_InternalOrderID, ExistingOrderDetails))
    {
      //If original submitted order is still working.
      if (IsWorkingOrderStatus(ExistingOrderDetails.OrderStatusCode) )
      {
        if (sc.Index >= r_BarIndexOfOrder + 2)
        {
          //Cancel the order
          sc.CancelOrder(r_InternalOrderID);
        }
      }
    }
  }

}
