// This source code is subject to the terms of the Mozilla Public License 2.0 at https://mozilla.org/MPL/2.0/
// © spacemanbtc

//@version=5
indicator("Fair Value Gap",shorttitle= "Fair Value Gap SpaceManBTC", overlay = true, max_boxes_count = 500, max_lines_count = 500, max_labels_count = 500)



//Fair Value Gap
//V1, 2022.4.12

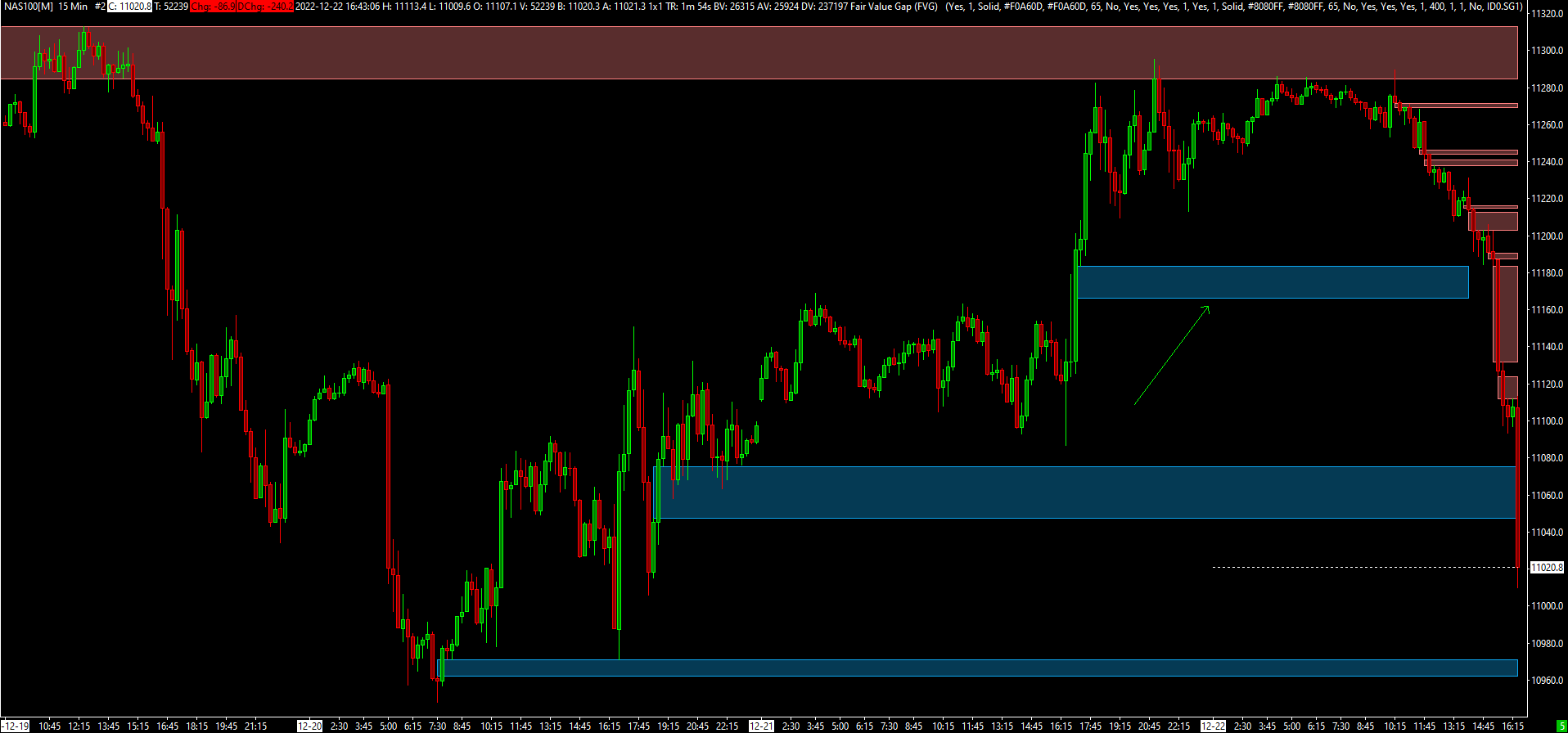

//This indicator displays the fair value gap of the current timeframe AND an optional higher time frame.

//What the script does is take into account the values of the current bar high/low and compare with 2 bars previous
//The "gap" is generated from the lack of overlap between these bars
//Bearish or Bullish gaps determined via whether the gap is above or below price, as they tend to be filled gaps can be used as targets.


// ———————————————————— Inputs {

// Standard practice declared input variables with i_ easier to identify
i_tf = input.timeframe("D", "MTF Timeframe", group = "MTF Settings")
i_mtf = input.string(defval = "Current TF",group = "MTF Settings", title = "MTF Options", options = ["Current TF", "Current + HTF", "HTF"])
i_tfos = input.int(defval = 10,title = "Offset", minval = 0, maxval = 500 ,group = "MTF Settings", inline = "OS")
i_mtfos = input.int(defval = 20,title = "MTF Offset", minval = 0, maxval = 500 ,group = "MTF Settings", inline = "OS")
i_fillByMid = input.bool(false, "MidPoint Fill",group = "General Settings", tooltip = "When enabled FVG is filled when midpoint is tested")
i_deleteonfill = input.bool(true, "Delete Old On Fill",group = "General Settings")
i_labeltf = input.bool(true,"Label FVG Timeframe",group = "General Settings")


i_bullishfvgcolor = input.color(color.new(color.green,90), "Bullish FVG", group = "Coloring", inline = "BLFVG")
i_mtfbullishfvgcolor = input.color(color.new(color.lime,80), "MTF Bullish FVG", group = "Coloring", inline = "BLFVG")
i_bearishfvgcolor = input.color(color.new(color.red,90), "Bearish FVG", group = "Coloring", inline = "BRFVG")
i_mtfbearishfvgcolor = input.color(color.new(color.maroon,80), "MTF Bearish FVG", group = "Coloring", inline = "BRFVG")
i_midPointColor = input.color(color.new(color.white,85), "MidPoint Color", group = "Coloring")
i_textColor = input.color(color.white, "Text Color", group = "Coloring")

// }

// ———————————————————— Global data {
//Using current bar data for HTF highs and lows instead of security to prevent future leaking
var htfH = open
var htfL = open

if close > htfH
htfH:= close
if close < htfL
htfL := close


//Security Data, used for HTF Bar Data reference


sClose = request.security(syminfo.tickerid, i_tf, close[1], barmerge.gaps_off, barmerge.lookahead_on)
sHighP2 = request.security(syminfo.tickerid, i_tf, high[2], barmerge.gaps_off, barmerge.lookahead_on)
sLowP2 = request.security(syminfo.tickerid, i_tf, low[2], barmerge.gaps_off, barmerge.lookahead_on)
sOpen = request.security(syminfo.tickerid, i_tf, open[1], barmerge.gaps_off, barmerge.lookahead_on)
sBar = request.security(syminfo.tickerid, i_tf, bar_index, barmerge.gaps_off, barmerge.lookahead_on)


// }




//var keyword can be used to hold data in memory, with pinescript all data is lost including variables unless the var keyword is used to preserve this data
var bullishgapholder = array.new_box(0)
var bearishgapholder = array.new_box(0)
var bullishmidholder = array.new_line(0)
var bearishmidholder = array.new_line(0)
var bullishlabelholder = array.new_label(0)
var bearishlabelholder = array.new_label(0)
var transparentcolor = color.new(color.white,100)



// ———————————————————— Functions {

//function paramaters best declared with '_' this helps defer from variables in the function scope declaration and elsewhere e.g. close => _close
f_gapCreation(_upperlimit,_lowerlimit,_midlimit,_bar,_boxholder,_midholder,_labelholder,_boxcolor,_mtfboxcolor, _htf)=>
timeholder = str.tostring(i_tf)
offset = i_mtfos
boxbgcolor = _mtfboxcolor
if _htf == false
timeholder := str.tostring(timeframe.period)
offset := i_tfos
boxbgcolor := _boxcolor
array.push(_boxholder,box.new(_bar,_upperlimit,_bar+1,_lowerlimit,border_color=transparentcolor,bgcolor = boxbgcolor, extend = extend.right))
if i_fillByMid
array.push(_midholder,line.new(_bar,_midlimit,_bar+1,_midlimit,color = i_midPointColor, extend = extend.right))
if i_labeltf



array.push(_labelholder,label.new(_bar+ offset,_midlimit * 0.999, text = timeholder + " FVG", style =label.style_none, size = size.normal, textcolor = i_textColor))

//checks for gap between current candle and 2 previous candle e.g. low of current candle and high of the candle before last, this is the fair value gap.
f_gapLogic(_close,_high,_highp2,_low,_lowp2,_open,_bar,_htf)=>

if _open > _close

if _high - _lowp2 < 0

upperlimit = _close - (_close - _lowp2 )
lowerlimit = _close - (_close-_high)
midlimit = (upperlimit + lowerlimit) / 2
f_gapCreation(upperlimit,lowerlimit,midlimit,_bar,bullishgapholder,bullishmidholder,bullishlabelholder,i_bullishfvgcolor,i_mtfbullishfvgcolor,_htf)

else

if _low - _highp2 > 0
upperlimit = _close - (_close-_low)
lowerlimit = _close- (_close - _highp2),
midlimit = (upperlimit + lowerlimit) / 2
f_gapCreation(upperlimit,lowerlimit,midlimit,_bar,bearishgapholder,bearishmidholder,bearishlabelholder,i_bearishfvgcolor,i_mtfbearishfvgcolor,_htf)



//Used to remove the gap from its relevant array as a result of it being filled.
f_gapDeletion(_currentgap,_i,_boxholder,_midholder,_labelholder)=>

array.remove(_boxholder,_i)
if i_fillByMid
currentmid=array.get(_midholder,_i)
array.remove(_midholder,_i)

if i_deleteonfill
line.delete(currentmid)
else
line.set_extend(currentmid, extend.none)
line.set_x2(currentmid,bar_index)
if i_deleteonfill
box.delete(_currentgap)


else
box.set_extend(_currentgap,extend.none)
box.set_right(_currentgap,bar_index)
if i_labeltf
currentlabel=array.get(_labelholder,_i)
array.remove(_labelholder,_i)
if i_deleteonfill
label.delete(currentlabel)


//checks if gap has been filled either by 0.5 fill (i_fillByMid) or SHRINKS the gap to reflect the true value gap left.
f_gapCheck(_high,_low)=>

if array.size(bullishgapholder) > 0

for i = array.size(bullishgapholder)-1 to 0
currentgap = array.get(bullishgapholder,i)
currenttop = box.get_top(currentgap)
if i_fillByMid
currentmid = array.get(bullishmidholder,i)
currenttop := line.get_y1(currentmid)


if _high >= currenttop
f_gapDeletion(currentgap,i,bullishgapholder,bullishmidholder,bullishlabelholder)
if _high > box.get_bottom(currentgap) and _high < box.get_top(currentgap)

box.set_bottom(currentgap,_high)

if array.size(bearishgapholder) > 0

for i = array.size(bearishgapholder)-1 to 0
currentgap = array.get(bearishgapholder,i)
currentbottom = box.get_bottom(currentgap)
if i_fillByMid
currentmid = array.get(bearishmidholder,i)
currentbottom := line.get_y1(currentmid)
if _low <= currentbottom
f_gapDeletion(currentgap,i,bearishgapholder,bearishmidholder,bearishlabelholder)

if _low < box.get_top(currentgap) and _low > box.get_bottom(currentgap)

box.set_top(currentgap,_low)


// pine provided function to determine a new bar
is_newbar(res) =>
t = time(res)
not na(t) and (na(t[1]) or t > t[1])

if is_newbar(i_tf)
htfH := open
htfL := open

// }



// User Input, allow MTF data calculations
if is_newbar(i_tf) and (i_mtf == "Current + HTF" or i_mtf == "HTF")
f_gapLogic(sClose,htfH,sHighP2,htfL,sLowP2,sOpen,bar_index,true)

// Use current Timeframe data to provide gap logic
if (i_mtf == "Current + HTF" or i_mtf == "Current TF")
f_gapLogic(close[1],high,high[2],low,low[2],open[1],bar_index,false)

f_gapCheck(high,low)
