Footprint chart configuration
View Count: 155
| [2025-02-03 18:26:22] |
| User686960 - Posts: 4 |
|

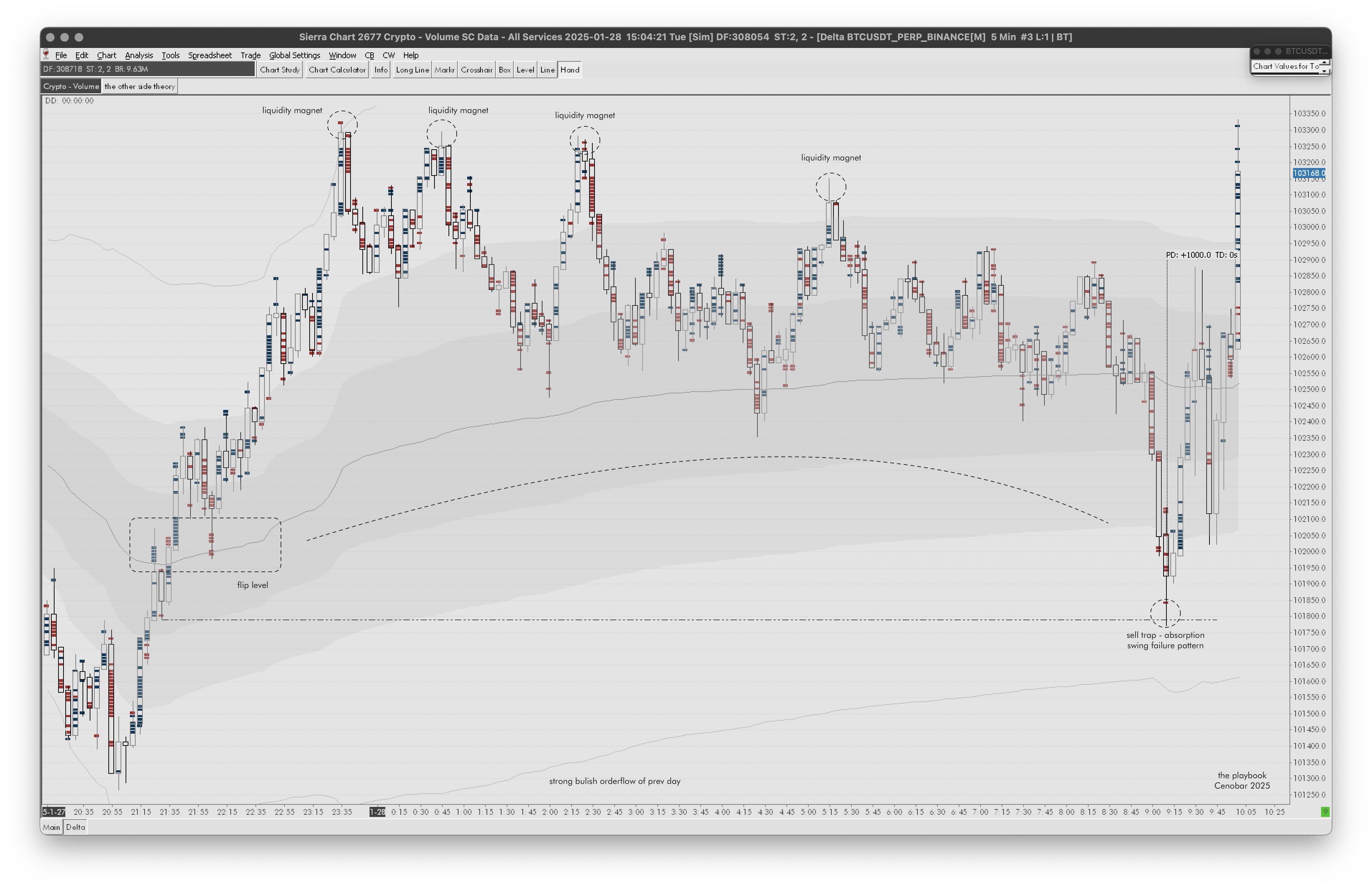

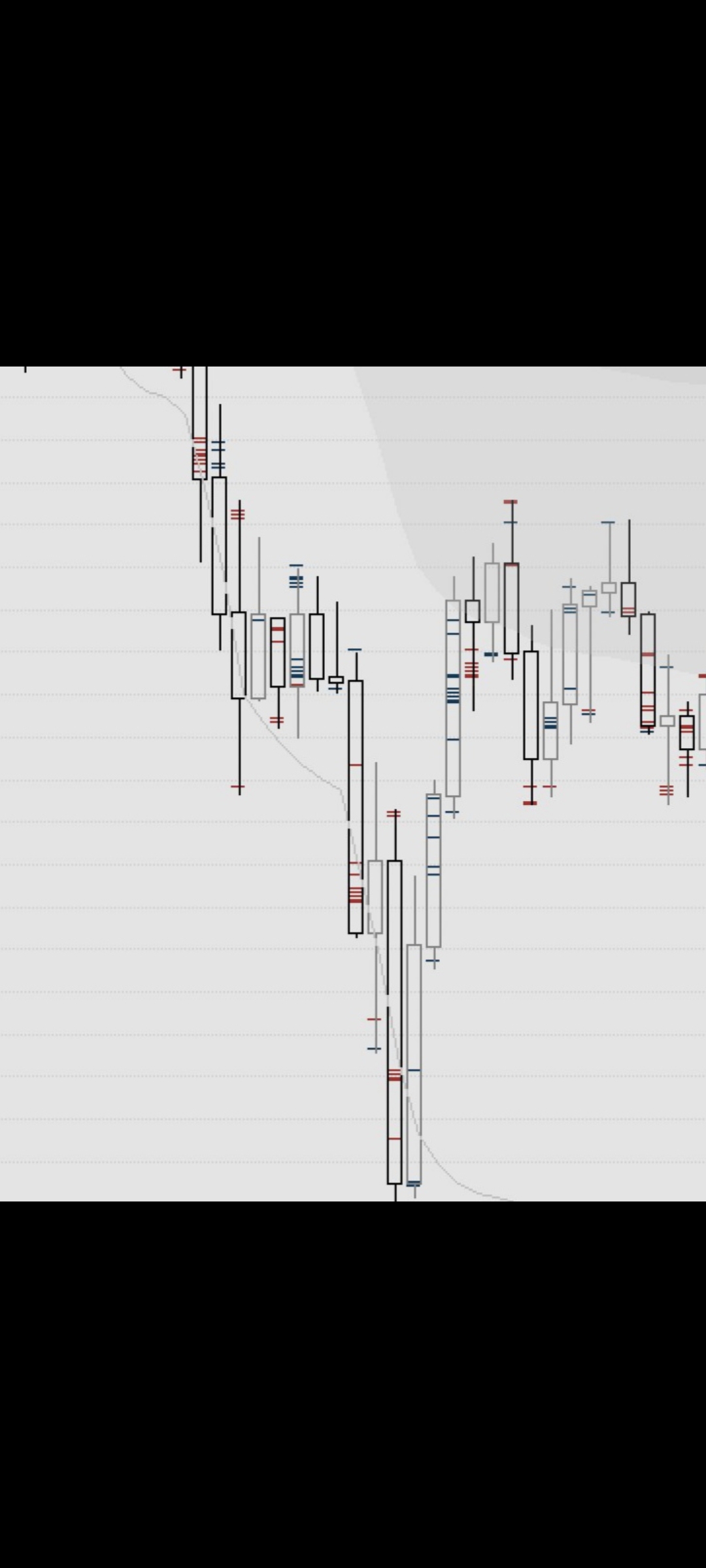

Hello, I want to create a footprint chart in Sierra Chart exactly like the one in this image. Can you guide me on the specific settings, studies, and configurations needed to replicate this? Thank you
|
 20250201_144827.jpg / V - Attached On 2025-02-03 18:26:13 UTC - Size: 605.03 KB - 33 views Screenshot_2025-02-01-17-16-04-401_com.miui.gallery.jpg / V - Attached On 2025-02-03 18:26:18 UTC - Size: 283.56 KB - 38 views |
| [2025-02-03 18:33:45] |
| John - SC Support - Posts: 38645 |
|
The general idea is accomplished by setting the following in the Numbers Bars study: - Column 1 Numbers Bars Text: None - Column 1 Background Type: Full Background - Column 1 Background Coloring Method: [select what you need] - Percent Compare Thresholds / Actual Value Compare Thresholds: [Use the appropriate ones and set as desired based on the selected background coloring] - Open and Close Marker Style: Candlestick Outline - Place Open Marker/Boxes in: Column 1 As noted above, you need to select the "Background Coloring Method" and the "Thresholds" based on the chosen coloring method to get what you want. You may need to also change some of the colors of the "Column 1 Range 0-3 Up/Down Color" to further get what you want. Refer to the following: Numbers Bars: Introduction For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
