Overnight TPO Volume Profile Greyed out
View Count: 120
| [2024-09-11 17:24:02] |
| Sihtric8 - Posts: 2 |
|

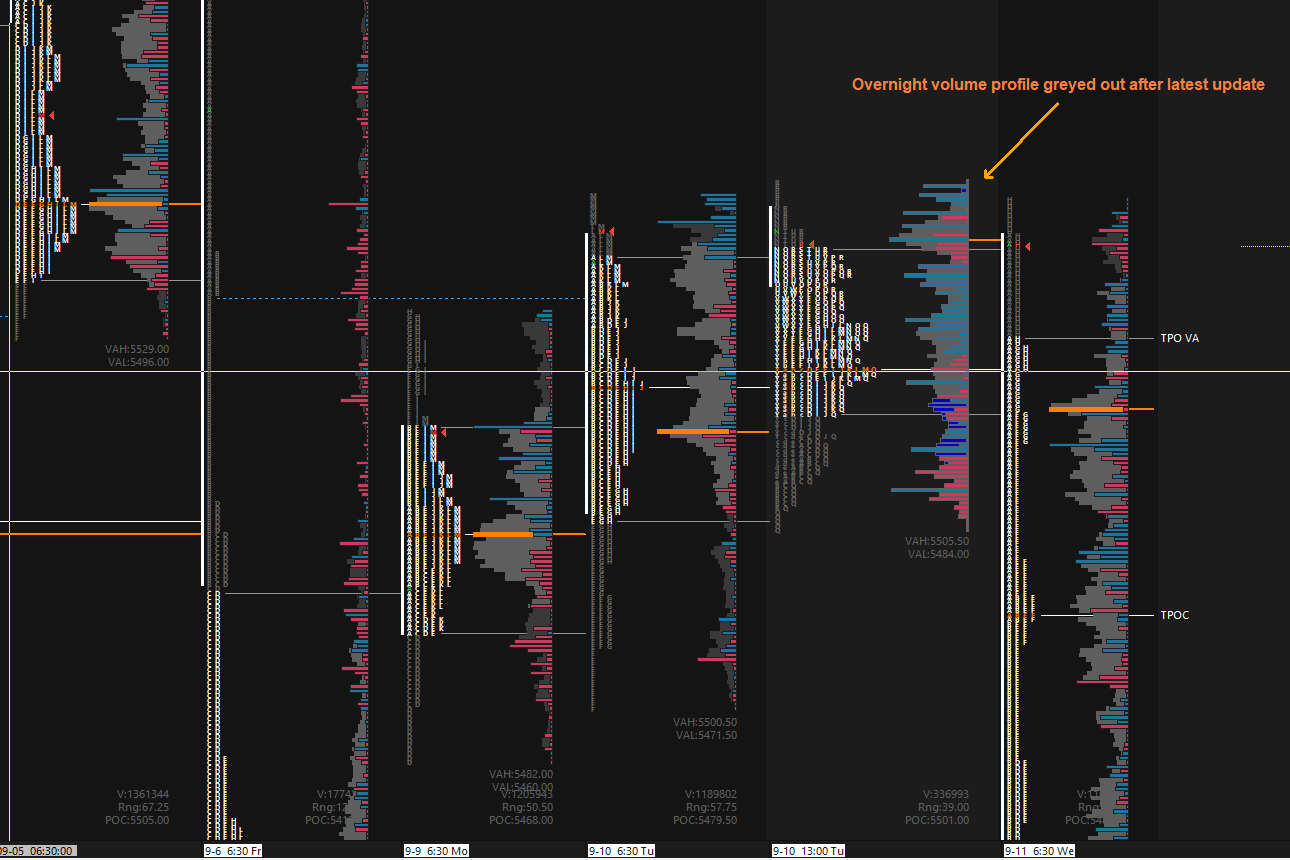

Hello, After updating to the latest version (2674), the overnight TPO volume profile is now greyed out. Tried re-starting to no effect. Attached is a screenshot. Can you advise? Thank you! |
 TPO Overnight Volume Profile.png / V - Attached On 2024-09-11 17:19:47 UTC - Size: 113.61 KB - 34 views |
| [2024-09-11 17:45:47] |
| John - SC Support - Posts: 36238 |
|
We can see a difference in the Outline color for the Overnight Volume by Price profile. This is controlled by Subgraph 11 (Evening Session Volume Bars Outline and Fill Colors), where the outline is controlled by the first color (the one to the left). Refer to the following: Volume By Price Study: Evening Session Volume Bars Outline and Fill Colors (SG11) Chart Studies: Subgraphs Tab >> Color For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-09-13 06:04:49] |
| Sihtric8 - Posts: 2 |
|

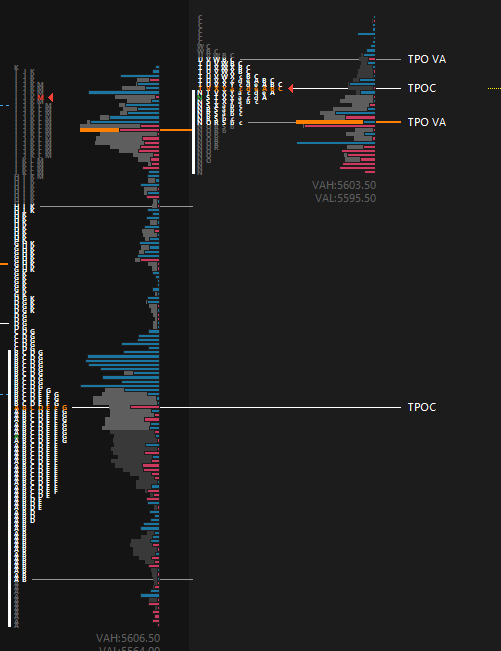

Seems something happened in the latest updates (even tried version 2677), as reverting back to version 2671, everything has gone back to normal for both the RTH and overnight session delta profile. See attached. Thanks. |
| TPO Overnight Volume Profile (2671).png / V - Attached On 2024-09-13 06:00:08 UTC - Size: 23.3 KB - 26 views |
| [2024-09-13 14:56:13] |
| John - SC Support - Posts: 36238 |
|
There was a change somewhere in the recent versions where the "Evening Session" colors are now being used when a Volume by Price profile is setup with a TPO profile. In the past, this was not the case. So in the recent versions you need to change the colors for Subgraph 11 to have the evening colors the same as your day session colors. In particular, the primary color (the one on the left) that controls the color of the outline. Also, make sure you save the settings as your default, or resave the Study Collection, depending on how you are doing this. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
