Question on DOM Graph on Chart
View Count: 113
| [2024-09-04 08:39:45] |
| maxm1987 - Posts: 115 |
|

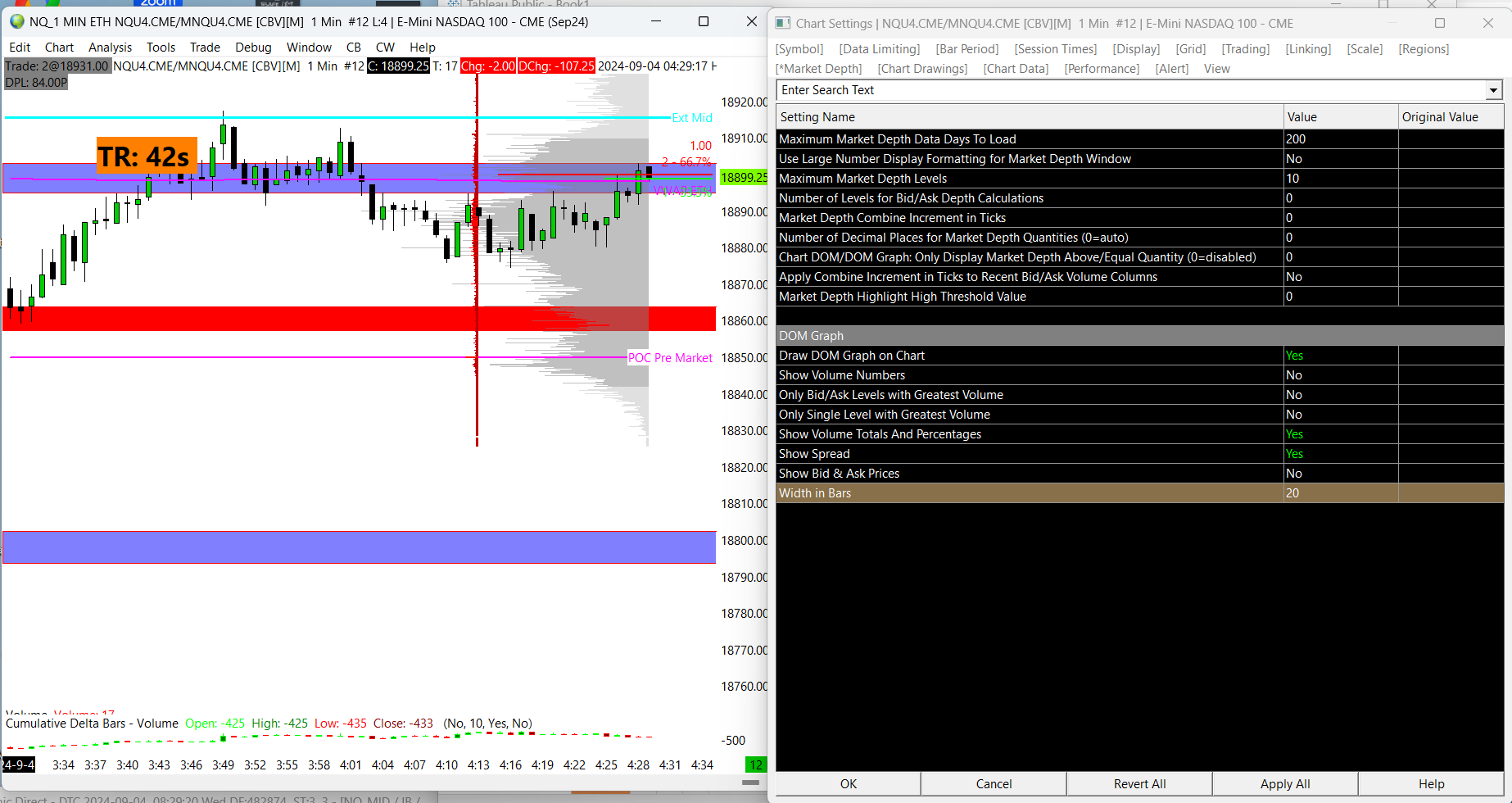

hi please see the screenshots. the first one is my current state but i want it to look more like in the second screenshot. I would like to make the bars that show the limit orders bigger and show more levels in general, so far it seems it only show one level. could you advise what i need to change in the settings to achieve that? |
dom.png| [2024-09-04 20:19:58] |
| John - SC Support - Posts: 36238 |
|
You do not have any exchanges activated that include Market Depth data, which is why you are only getting 1 level of the Market Depth data. Refer to the following: Real-Time Exchange Data Feeds Available From Sierra Chart: Adding Support for CME Market Depth Data Once you get that resolved, then you can change the thickness of the DOM Graph lines by changing the "Width" values for the "DOM Graph Ask Lines Begin Color" and "DOM Graph Bid Lines Begin Color". Refer to the following: Graphics Settings: DOM Graph Ask Lines Begin Color For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
