Volume Profile in TPO
View Count: 297
[2024-05-11 21:25:40] |
norseleo - Posts: 5 |
I have 3 questions: 1. How do I get the "total volume" to display next to the volume profile (to the left of) and not in the volume profile graph? 2. In addition and next to the VP, is there a way to have a VP for the active 30m time period? 3. How do I get a full volume profile to display on the right side of the window that will be a VP for whatever days are active on the screen? Thank you |

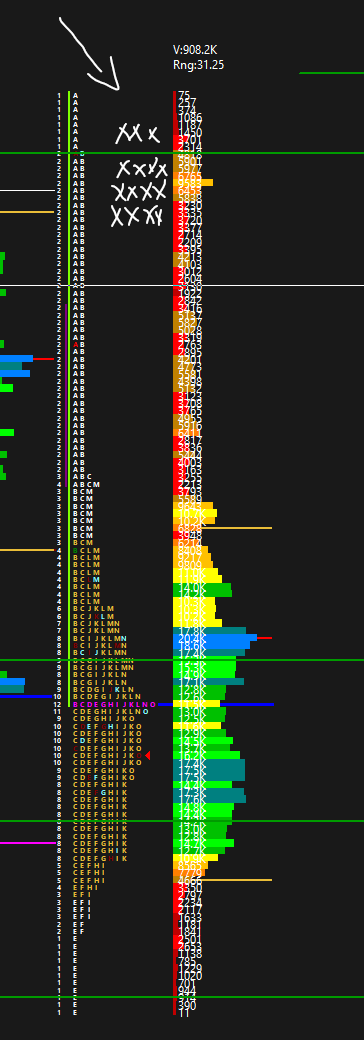

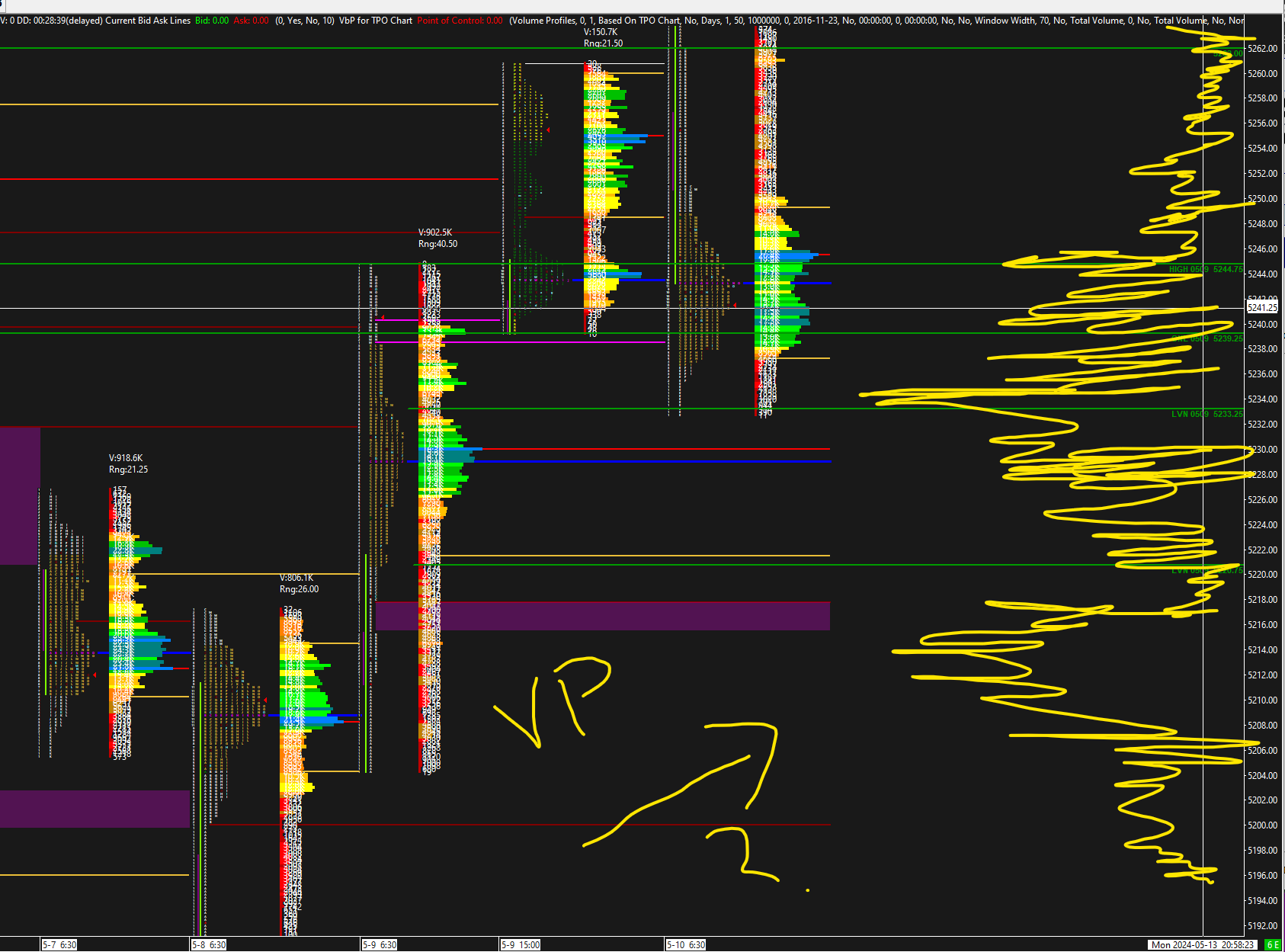

Screenshot 2024-05-11 140653.png / V - Attached On 2024-05-11 21:15:47 UTC - Size: 52.99 KB - 54 views Screenshot 2024-05-11 140357.png / V - Attached On 2024-05-11 21:15:51 UTC - Size: 315.44 KB - 51 views |
[2024-05-13 15:19:02] |
John - SC Support - Posts: 36238 |
1. If you are referring to the volume for each price level, then there is not an option to have it display as you want. You have two options, one is at the base of the bar and the other is at the end of the bar. Refer to the following: Volume By Price Study: Align Volume Numbers to Base of Volume Bars 2. There is not a way to have 30 minute Volume By Price profiles displayed along the other profile when you are displaying a TPO chart. With a TPO Chart, you can only have the 1 Volume by Price profile associated with each TPO period. You can have multiple profiles on the right side for whatever period, but it is only for a single period. 3. Refer to the following, only your "Volume Graph Period Type" would be "Visible Bars": Volume By Price Study: 30 Minute Volume Profile at End of TPO Profile Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
