Bar Delta Below Bar Study
View Count: 73
| [2024-04-18 23:20:20] |
| User130696 - Posts: 62 |
|

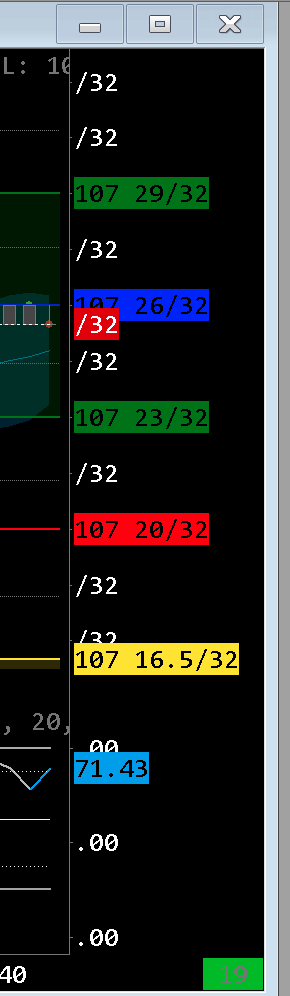

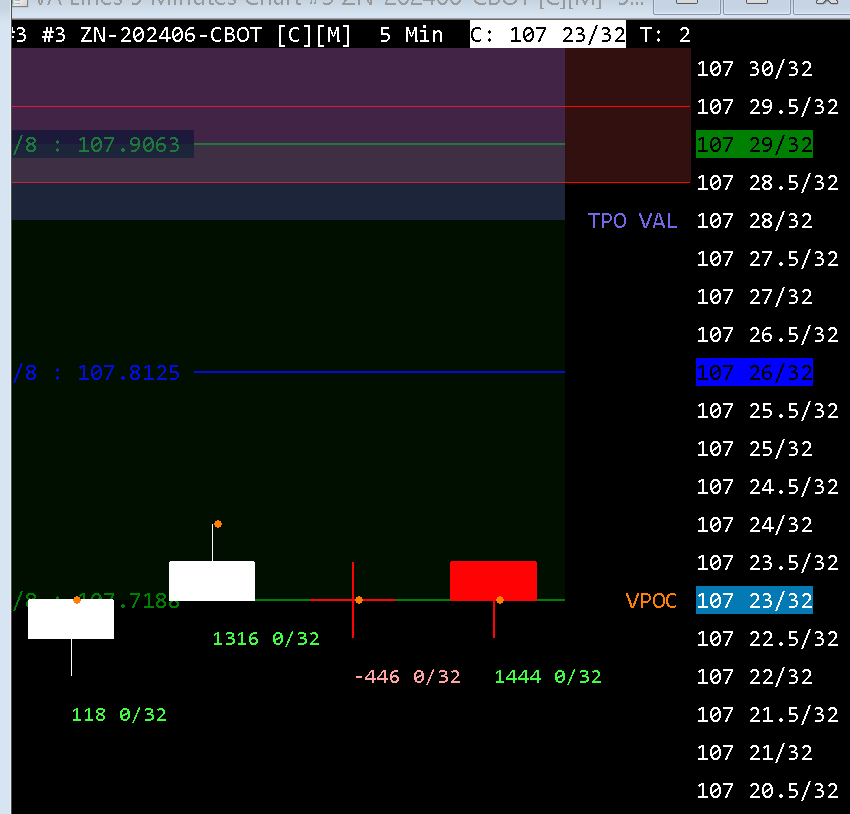

Hello, I am getting "0/32" post-fixed below the bar, as shown in the attached for Bar Delta Below Bar Study. How to remove "0/32" ? Another similar issue is in the price scale, which is also attached. How to remove "/32" in the price scale and display all prices to the most minor level. Please note resetting and tweaking scale settings did not fix the issue. Both of the above issues are demonstrated for symbol "ZN" futures. |
 Screenshot 2024-04-18 at 7.08.31 PM.png / V - Attached On 2024-04-18 23:14:50 UTC - Size: 39.84 KB - 16 views Attachment Deleted. Screenshot 2024-04-18 at 7.16.59 PM.png / V - Attached On 2024-04-18 23:20:04 UTC - Size: 20.79 KB - 12 views |
| [2024-04-19 14:24:19] |
| John - SC Support - Posts: 31292 |
|
I am getting "0/32" post-fixed below the bar, as shown in the attached for Bar Delta Below Bar Study. How to remove "0/32" ? You need to change the "Value Format" for the study that is showing that information to what you want. Refer to the following: Chart Studies: Settings and Inputs Tab >> Value Format Another similar issue is in the price scale, which is also attached. How to remove "/32" in the price scale and display all prices to the most minor level. Please note resetting and tweaking scale settings did not fix the issue.
You can change the Price Display Format for the Main Price Graph at the following setting: Chart Settings: Price Display Format (Chart >> Chart Settings >> Symbol >> Symbol Settings menu) But the ZN is traded in fractional amounts, so the n/32 is correct. If you want to display as a short format, then refer to the following setting: General Settings Window: Display Fractions In Short Format (Global Settings >> General Settings >> Charts >> Charts) We are not sure what you mean by "to the most minor level", but you can adjust the particular prices that are displayed. Refer to the following: Chart Scale and Scale Adjusting: Scale Increment (Scale Settings) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
