Adding volume text to each HLC bar
View Count: 272
| [2024-02-16 14:57:13] |
| rkg - Posts: 11 |
|

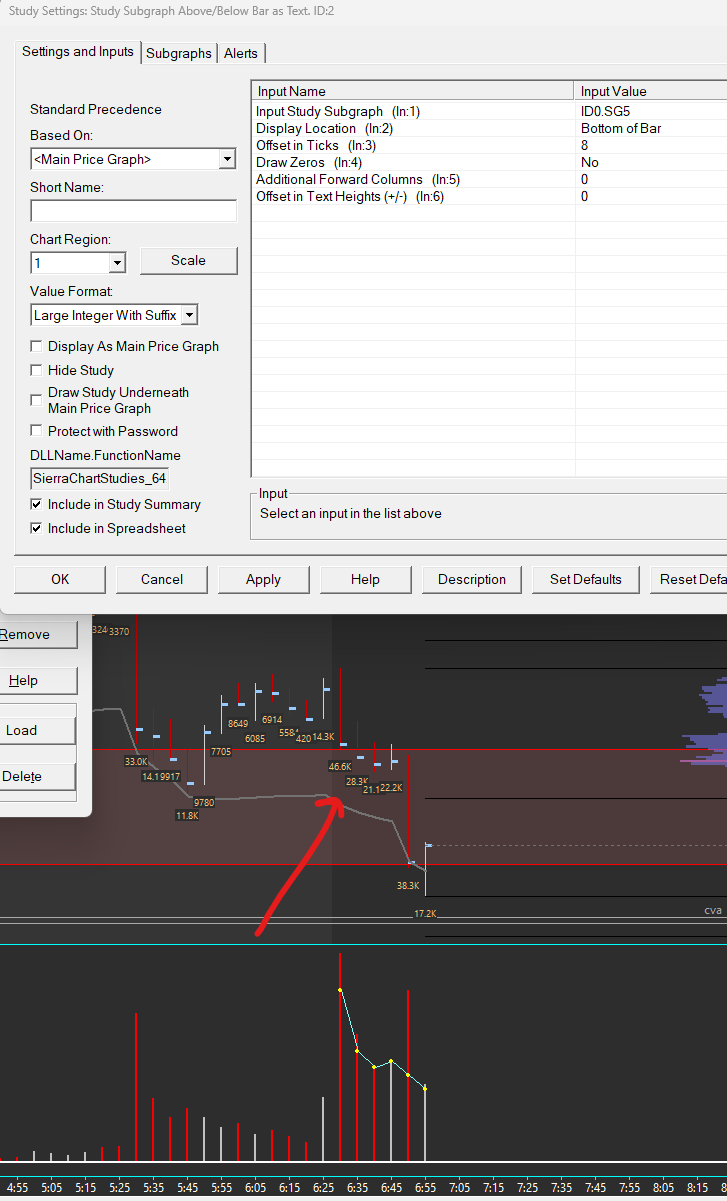

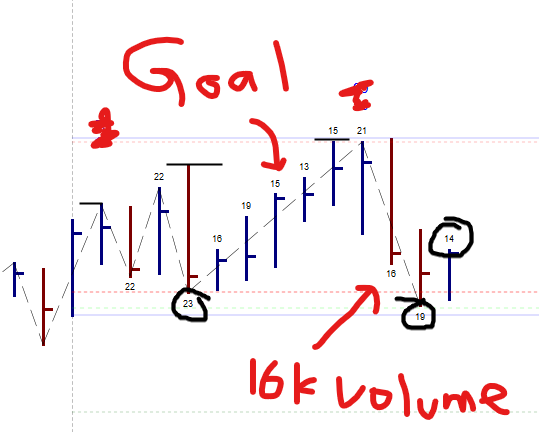

Hello, I am trying to add a small volume text to each volume bar as shown in attachment "#1". Currently, I have tried "Study Subgraph Above/Below Bar as Text" as shown in attachment "Current". I still would like to accomplish the following: 1) Reduce values to 10,000s. I.e. "8,000" volume displays as "8", "22.2k" volume displays as "22" 2) Show values above the bar if bar is a up bar 3) Show values below the bar is bar is a down bar |
Attachment Deleted.  Current.png / V - Attached On 2024-02-16 14:56:56 UTC - Size: 61.05 KB - 69 views |
| [2024-02-16 18:51:31] |
| John - SC Support - Posts: 36249 |
|
You would need 2 Color Bar Based on Alert Condition studies to do this. One to test if it is an "Up" bar and put the value on the high and the other to test if it is a "Down" bar and put the value at the low. Attached is a Study Collection that divides the volume by 1000 and puts the result on the High for Up bars. This should get you started. Refer to the following for how to use this: Study Collections: Using a Study Collection Provided by Sierra Chart Support For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
 VolumeDividedBy1000OnHigh.StdyCollct - Attached On 2024-02-16 18:50:51 UTC - Size: 32.71 KB - 299 views |
