How to apply a study on a additional symbol chart
View Count: 279
| [2024-01-29 19:09:13] |
| aseef - Posts: 49 |
|

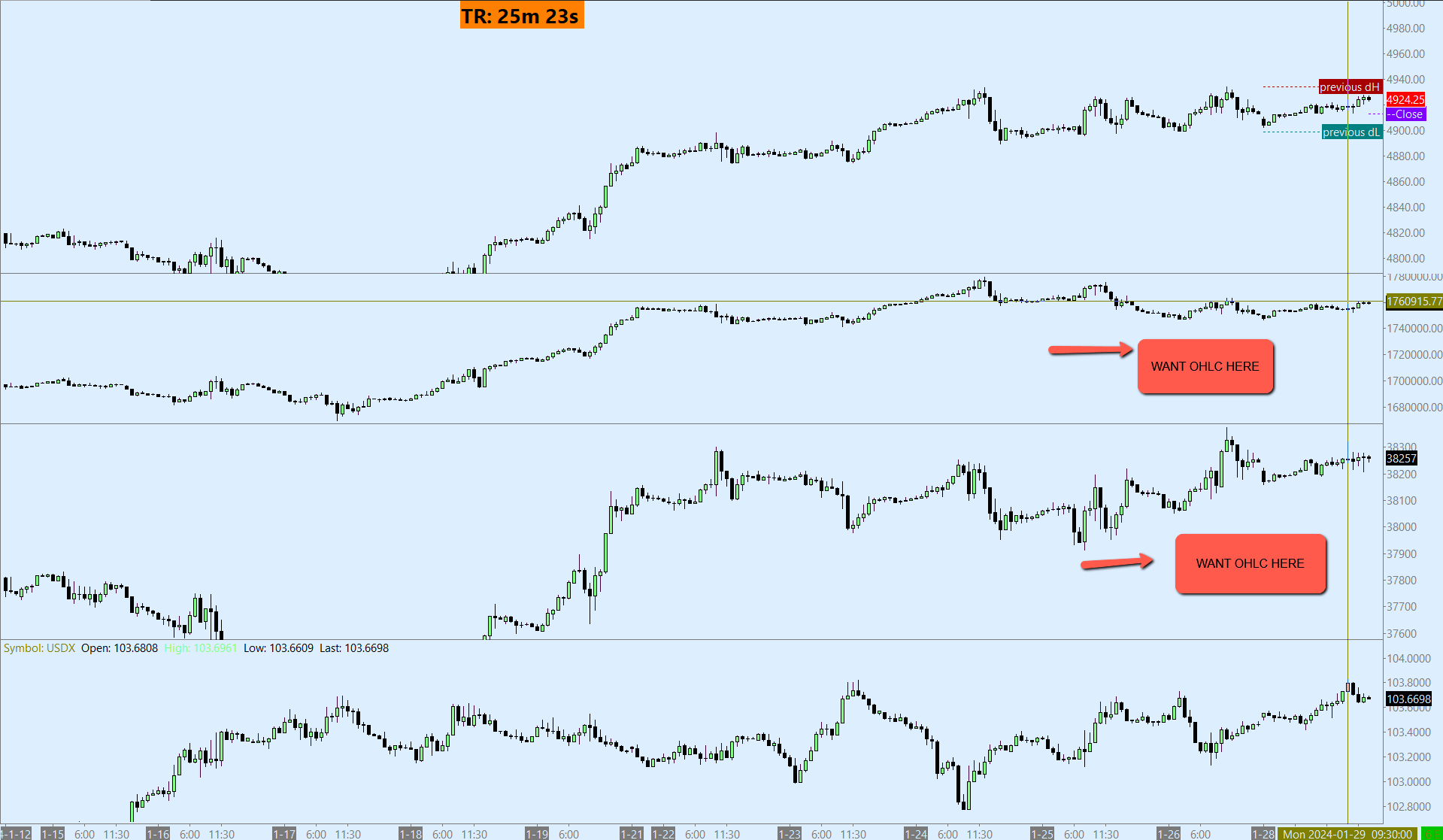

I have problem applying OHLC study on the addtiional symbol charts added to a chart. Please find the attached picture for reference.
|
| Attachment Deleted. |
OHLC.png| [2024-01-29 21:25:13] |
| John - SC Support - Posts: 36280 |
|
You can definitely do this. Just make sure the OHLC study you are using has the "Based On" set to the "Add Additional Symbol" study and that you put it in the same region. Refer to the following: Chart Studies: Settings and Inputs Tab >> Based On - Basing a Study on Another Study Chart Studies: Settings and Inputs Tab >> Chart Region For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-29 23:43:41] |
| aseef - Posts: 49 |
|
Thank you for your reply. I have applied the setting and able to see the OHLC on each chart. But there is a problem, the price scale is going locked instantly or in few seconds. Video attached for reference
|
Private File Attachment Deleted. |
| [2024-01-30 15:27:28] |
| John - SC Support - Posts: 36280 |
|
We can not say what might be causing that. Refer to the following for the various items that can be done to improve performance: High CPU Usage | Inactive User Interface | Poor Performance | Long Time to Load Chart Data | Charts Reloading Often For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-30 15:53:12] |
| aseef - Posts: 49 |
|
Thank you for your reply. My computer has very decent specs. To me it seems like it is a bug as on the main value scale is working fine and rest of the three "additional symbols" is it getting locked. Attached video for reference. the top chart is not an additional symbol it is the main chart.
|
Attachment Deleted. Private File |
| [2024-01-30 17:31:52] |
| John - SC Support - Posts: 36280 |
|
Please get us a copy of that chart by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-30 18:04:14] |
| aseef - Posts: 49 |
|
Please find the attached as requested. Thanks
|
 sample.Cht - Attached On 2024-01-30 18:04:04 UTC - Size: 6.9 KB - 156 views |
| [2024-01-30 18:48:53] |
| John - SC Support - Posts: 36280 |
|
The issue is that your OHLC studies are driving the scaling, and the Scale Setting for that study is "Same as Region", which means that you can not change the scale settings. All you need to do is to move the "Add Additional Symbol" studies to the top of the list of studies, in particular they need to be above the OHLC studies. Then you will be able to adjust the scaling. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-01-31 00:34:53] |
| aseef - Posts: 49 |
|
Got it thanks.
|
