Colouring fast stos as it crosses the slow stos
View Count: 285
| [2023-10-26 16:17:47] |
| User478380 - Posts: 184 |
|
Hi Please see attached files. Thanks ! |

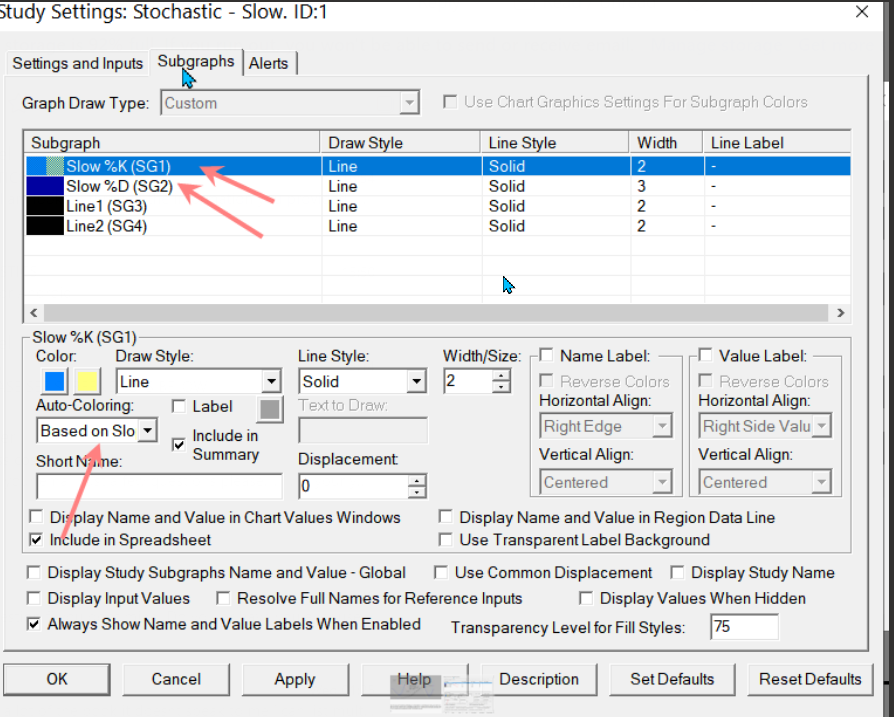

 SETTINGS.png / V - Attached On 2023-10-26 16:17:28 UTC - Size: 224.23 KB - 87 views |
| [2023-10-26 17:20:31] |
| John - SC Support - Posts: 36300 |
|
You would have to use the "Color Bar Based on Alert Condition" study to do what you want. Refer to the information at the following link, in particular the section on "Coloring Subgraphs of Other Studies": Color Bar Based on Alert Condition Your alert condition would look like the following: =ID1.SG1 < ID1.SG2 For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2023-10-26 17:46:50] |
| Sawtooth - Posts: 4120 |
|
You can also do it with a single instance of the Color Bar Based On Above/Below Study study, without a formula: - Set the 'Based On' to the Stochastic Slow study - Set the Chart Region to the same as the Stochastic study. - Set the 'Input Data' to the Slow %K - Set the 'Study Reference' to the Slow %D - Set the 'Output Input Data Values Instead Of 1.0' to Yes - Set the Draw Style to Line. - Be sure this study is below the Stochastic study in the Studies to Graph list. |
