SuperTrend indicator - please help to avoid printing the vertical line between bands

View Count: 987

[2023-08-10 16:27:21] #1 [Go To First Post]
HumblyTrading - Posts: 179

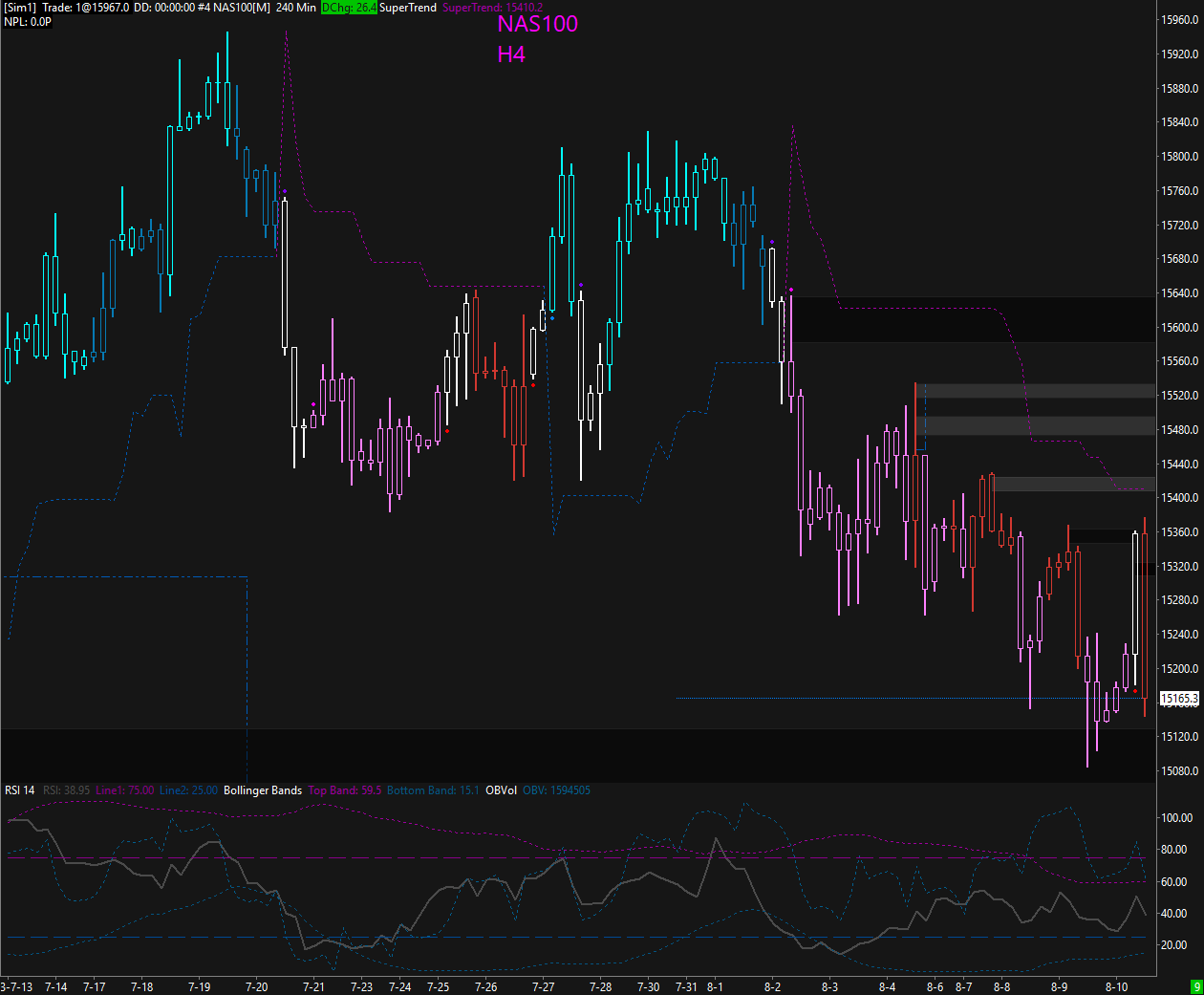

Hello SC Team, Would you mind pointing me in the right direction on this please? I would like to use the SuperTrend indicator as in my chart, however, I would like to avoid the vertical lines printing between the blue and red bands above and below price when the shift occurs. Is there a way to avoid that? Thank you, Mike https://www.sierrachart.com/image.php?Image=1691684663511.png

[2023-08-10 17:33:10] #2 [Go To First Post]
John - SC Support - Posts: 36309
There is not really a solution for that in particular. You can try setting the "Draw Style" to "Dash", which will eliminate that line, but we do not think you will like the way the data is displayed then. Refer to the following: Chart Studies: Dash (ACSIL: DRAWSTYLE_DASH) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-08-10 17:53:12] #3 [Go To First Post]
HumblyTrading - Posts: 179
Thank you - I did try that before and you are right, it hinders the visual usefulness. Also, thank you in general for trying to support so many of us in the forum! Mike

[2023-08-10 17:55:41] #4 [Go To First Post]
John - SC Support - Posts: 36309
Also, thank you in general for trying to support so many of us in the forum! Thank you, that is very nice of you to say. It is greatly appreciated. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2023-08-10 17:55:52

[2023-08-11 07:12:07] #5 [Go To First Post]
User476926 - Posts: 56
I use Kiwi Trailing Stop (rather than Supertrend) and the solution is: Add but Hide the Kiwi study, select use 2 subgraphs in Kiwi study (Up/Down). Add Study Round Subgraph to Tick Size - twice. Then use one Round Subgraph for Up trend (ref Kiwi SG1 for Up) Use the other one for Down trend (Kiwi SG2 for Down). I use a Stair Step line rather than Dash - but you can then display 2 individual Stair Step lines rounded to Tick Size and colour as you see fit. There will be no vertical lines if you hide the Kiwi study.

[2023-08-11 18:54:53] #6 [Go To First Post]
HumblyTrading - Posts: 179
Thank you That is a great approach and I'll make use of that on other studies, I'm sure. I think Kiwi is close enough for my purposes as well. Thank you again Mike

[2023-08-12 13:57:35] #7 [Go To First Post]
JohnR - User831573 - Posts: 306
Another solution, is to make the SuperTrend study use 2 graphs. One for values in Uptrend and the other for downtrend. It currently only uses subgraph[0]. The source is in ACS_Source\Studies4.cpp JohnR

[2023-08-12 14:25:37] #8 [Go To First Post]
HumblyTrading - Posts: 179
Thank you for that idea. I will try to work it out via a spreadsheet study.
