[User Discussion] - stochastic fast study cosmetic
View Count: 417
| [2023-06-21 12:34:53] |
| User278398 - Posts: 291 |
|

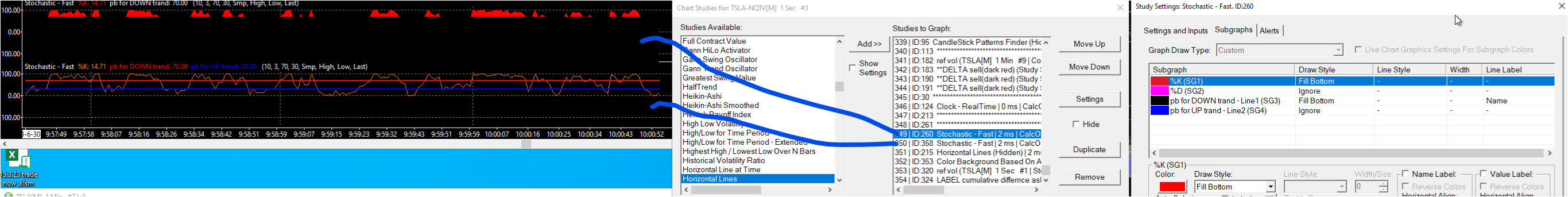

hello, 1. how can i display the line sg1 only it go upper then line sg3(the line sg1 under line sg3 i want that will be hide)? 2. how can i display the background which form between line sg1 and line sg3 and only if line sg1 it go upper then line sg3? 3.how can i display the background and dissplay line sg1, if line sg1 ibetween line sg3 and line sg4? regards. |
| [2023-06-25 11:04:25] |
| User278398 - Posts: 291 |
|
?
|
| [2023-07-02 12:30:23] |
| User278398 - Posts: 291 |
|
hi, i mange to get the upper color that i need(red color in pic). but i didnt mange to get the blue background (betwwn sg1 to sg4)... what i need to check in the draw style for sg1 sg3 sg4 to get what i need ? regards. |
| [2023-07-02 12:36:49] |
| User278398 - Posts: 291 |
|
i refer to this link, but still didnt mange to get what i need Chart Studies: Filling the Area Between Two Study Subgraphs within Same Study |
| [2023-07-02 16:06:30] |
| Sawtooth - Posts: 4120 |
|
i didnt mange to get the blue background (betwwn sg1 to sg4)
The Fill Top / Fill Bottom draw styles can only use consecutive subgraphs.IOW, SG1-SG2, SG3-SG4 In your case, use the Study Subgraphs Reference study. |
| [2023-07-03 08:19:57] |
| User278398 - Posts: 291 |
|

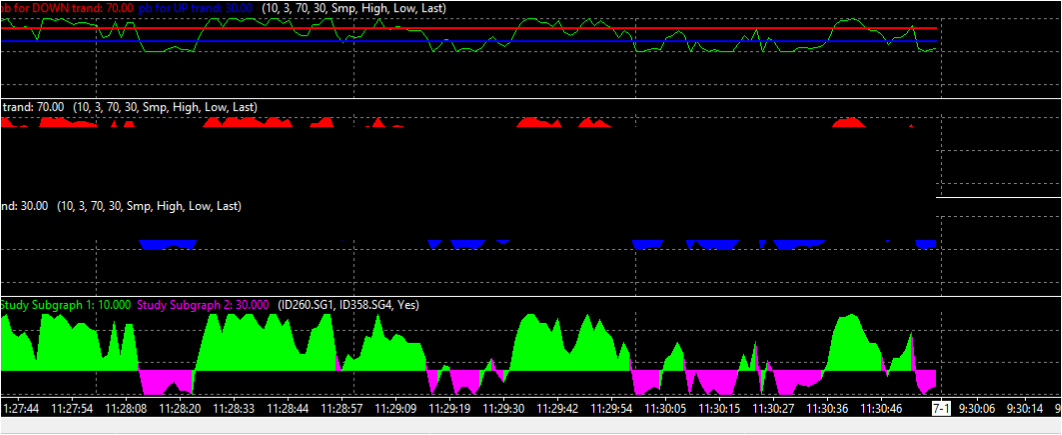

region 1: stoch fast region2: only the upper fill area (in red) region3: only the bottom fill area (in blue) region4: study subgraph reference study .... i didnt sucses to get what i need with "study subgraphs reference". can u send me a study collection which "study subgraphs reference" can combine between region 2 and 3 (i want to display in one region the red area and the blue area) ? regards. |
| [2023-07-03 13:44:26] |
| Sawtooth - Posts: 4120 |
|
i didnt sucses to get what i need with "study subgraphs reference".
Change the 'Red' study to Region4Change the 'Blue' study to Region4 Move both 'Red' and 'Blue' studies below the Region4 study, in the Studies to Graph list. Move Region1 study below the Region4 study, in the Studies to Graph list. Note: The position of studies in the Studies to Graph list determines which studies over-print the ones above. |
| [2023-07-06 10:10:47] |
| User278398 - Posts: 291 |
|

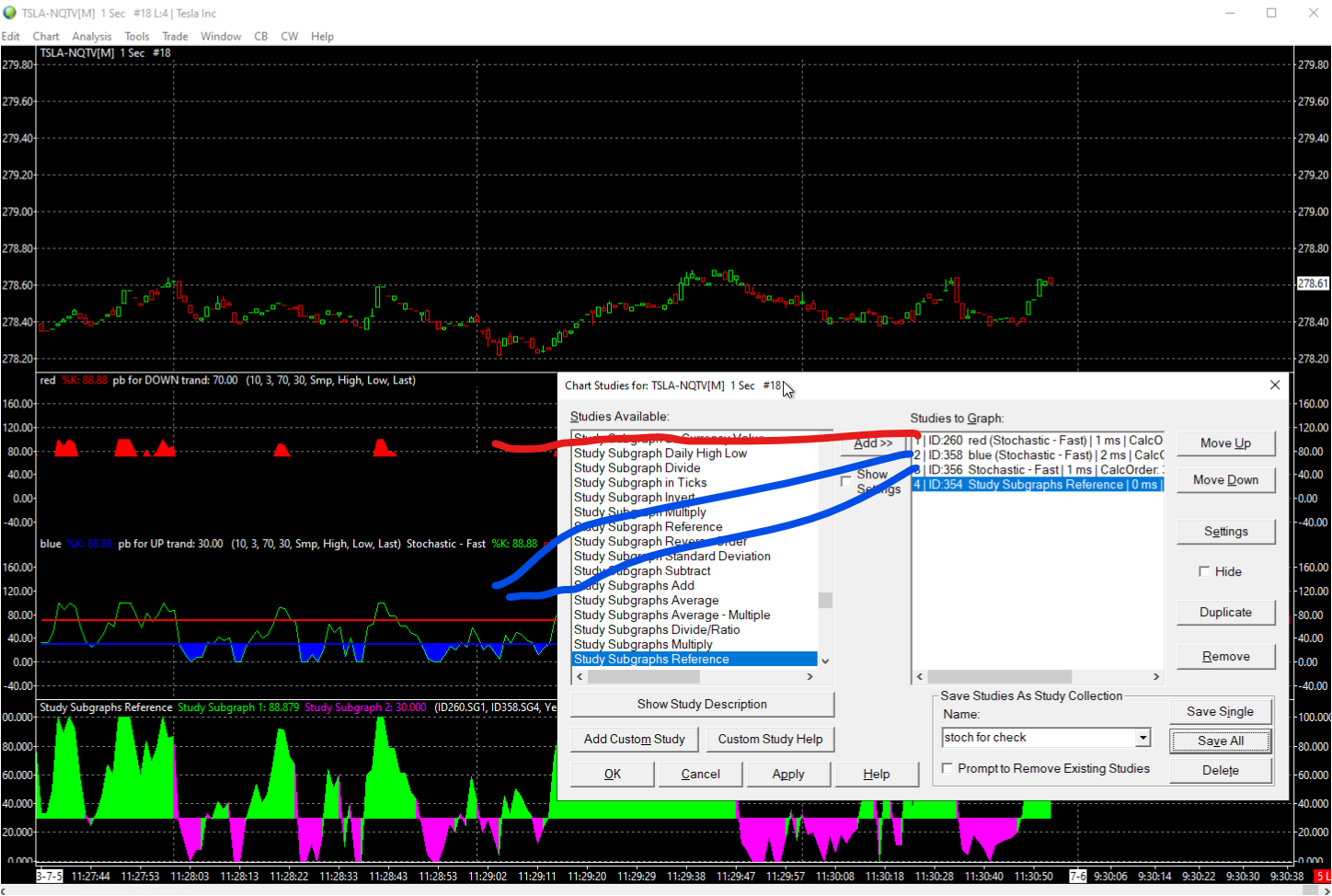

i didnt mange get in one region what u explain to me. i upload a study collection for your checking. can u check and fix it that in one region i can see "red and "blue" ? regards. |
 stoch for check.StdyCollct - Attached On 2023-07-06 10:05:17 UTC - Size: 65.3 KB - 95 views |
| [2023-07-06 16:06:36] |
| Sawtooth - Posts: 4120 |
|

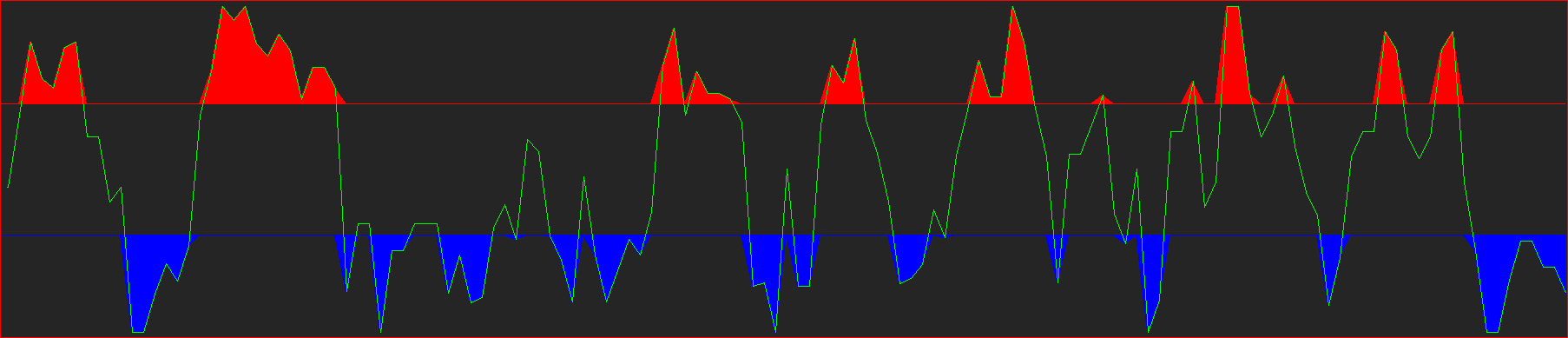

See attached pic. Is this what you want? |
 Stoch fills.PNG / V - Attached On 2023-07-06 16:06:33 UTC - Size: 32.99 KB - 83 views |
| [2023-07-09 08:09:21] |
| User278398 - Posts: 291 |
|
amazing. yes |
| [2023-07-09 14:10:29] |
| Sawtooth - Posts: 4120 |
|
It was more difficult than I thought. You'll need to add two instances of the Spreadsheet Formula study: - One to create a %K overbought only line. - One to create a %K oversold only line. - Set the Chart Region to same as the Stochastic - Fast study, and Hide these studies. You'll need to add two instances of the Study Subgraphs Reference study: - One to fill from the overbought only line to the 70 line. - One to fill from the oversold only line to the 30 line. - Set the Chart Region to same as the Stochastic - Fast study. For an example of the formulas and references, open a blank chart and apply the attached Study Collection. |
| Stoch fills+.StdyCollct - Attached On 2023-07-09 14:10:19 UTC - Size: 80.53 KB - 202 views |
| [2023-07-10 07:20:55] |
| User278398 - Posts: 291 |
|
GENIUS !!! thank you very very much for your effort |
