Multiple profiles, cant get one to be far right

View Count: 425

[2023-06-15 12:02:15] #1 [Go To First Post]
Jimmyz83 - Posts: 51

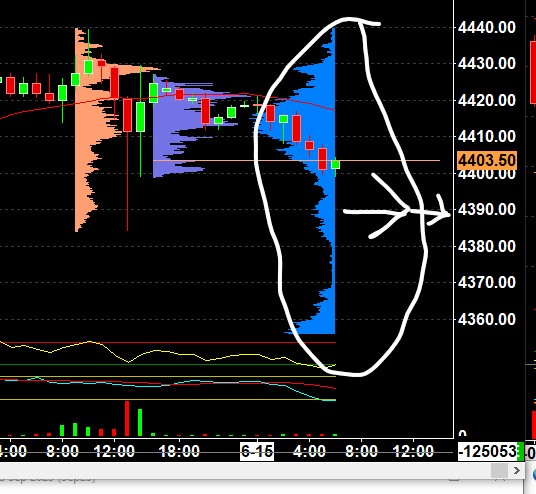

I have a monthly profile I am trying to move to the far right, I have that selected in the settings for the profile, but it only moves it to the far right of the current candle stick. I want it moved to the far right of the window so it is not underneath the candle stick. Can you help, Thanks Pic Attached


Screenshot 2023-06-15 065633.jpg / V - Attached On 2023-06-15 12:01:31 UTC - Size: 75.72 KB - 122 views

[2023-06-15 12:55:40] #2 [Go To First Post]
ivory - Posts: 95
There are two options that have to be set, off the top of my head: Right Align Volume Bars and Align to Far Right. There are additional options that you could experiment with: Allow Side-by-Side Profiles on Right Side and Include Fill Space in Developing Period Width.

[2023-06-15 13:15:39] #3 [Go To First Post]
Jimmyz83 - Posts: 51

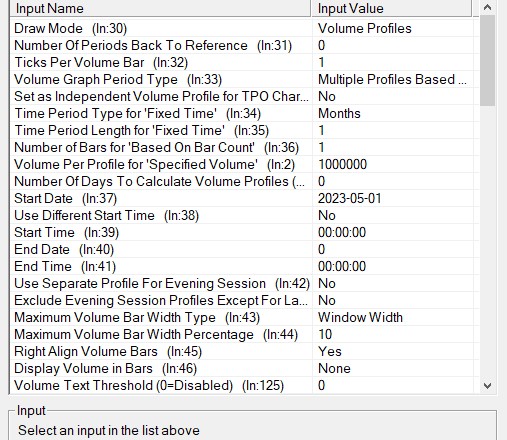

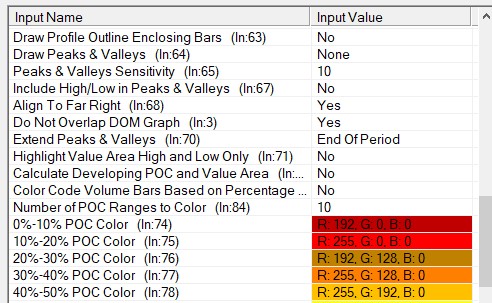

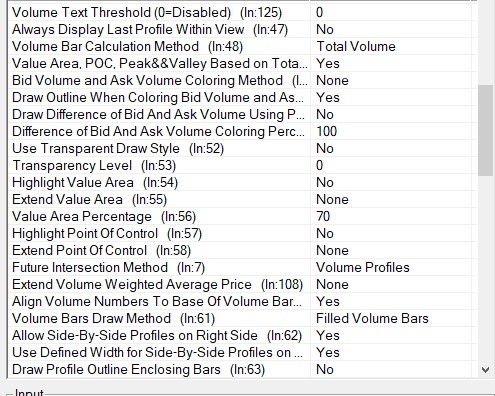

I have every one of your options selected and the profile is still in the same place and not at the edge of the window. I attached screen shots of the setting. Any other options or reasons why it will not go there?


Screenshot 2023-06-15 081350.jpg / V - Attached On 2023-06-15 13:14:49 UTC - Size: 94.17 KB - 115 views Screenshot 2023-06-15 081411.jpg / V - Attached On 2023-06-15 13:14:56 UTC - Size: 95.51 KB - 102 views Screenshot 2023-06-15 081427.jpg / V - Attached On 2023-06-15 13:15:04 UTC - Size: 69.41 KB - 103 views

[2023-06-15 13:25:25] #4 [Go To First Post]
User731023 - Posts: 138
Allow side by side to no. You have yes now.

[2023-06-15 13:29:24] #5 [Go To First Post]
Jimmyz83 - Posts: 51
I changed to no and nothing has changeD

[2023-06-15 14:36:08] #6 [Go To First Post]
John - SC Support - Posts: 36238
Since you are using a Volume Graph Period Type that includes multiple profiles, you would need to set the Input for "Always Display Last Profile within View" to "Yes" along with "Right Align Volume Bars" to "Yes". Refer to the following on this: Volume By Price Study: Always Display Last Profile Within View For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-06-15 14:43:23] #7 [Go To First Post]
Jimmyz83 - Posts: 51
Works!! Thanks so much for taking the time to help.

[2024-06-27 14:17:52] #8 [Go To First Post]
User212833 - Posts: 15
Awesome!! It owrked for me too Give me credit for not submitting a new ticket and using search function. I would have never suspected it was the "Always Display.." option
