Current Price Line & Study subgraph Add glitch

View Count: 516

[2023-03-28 20:37:24] #1 [Go To First Post]
User773081 - Posts: 26

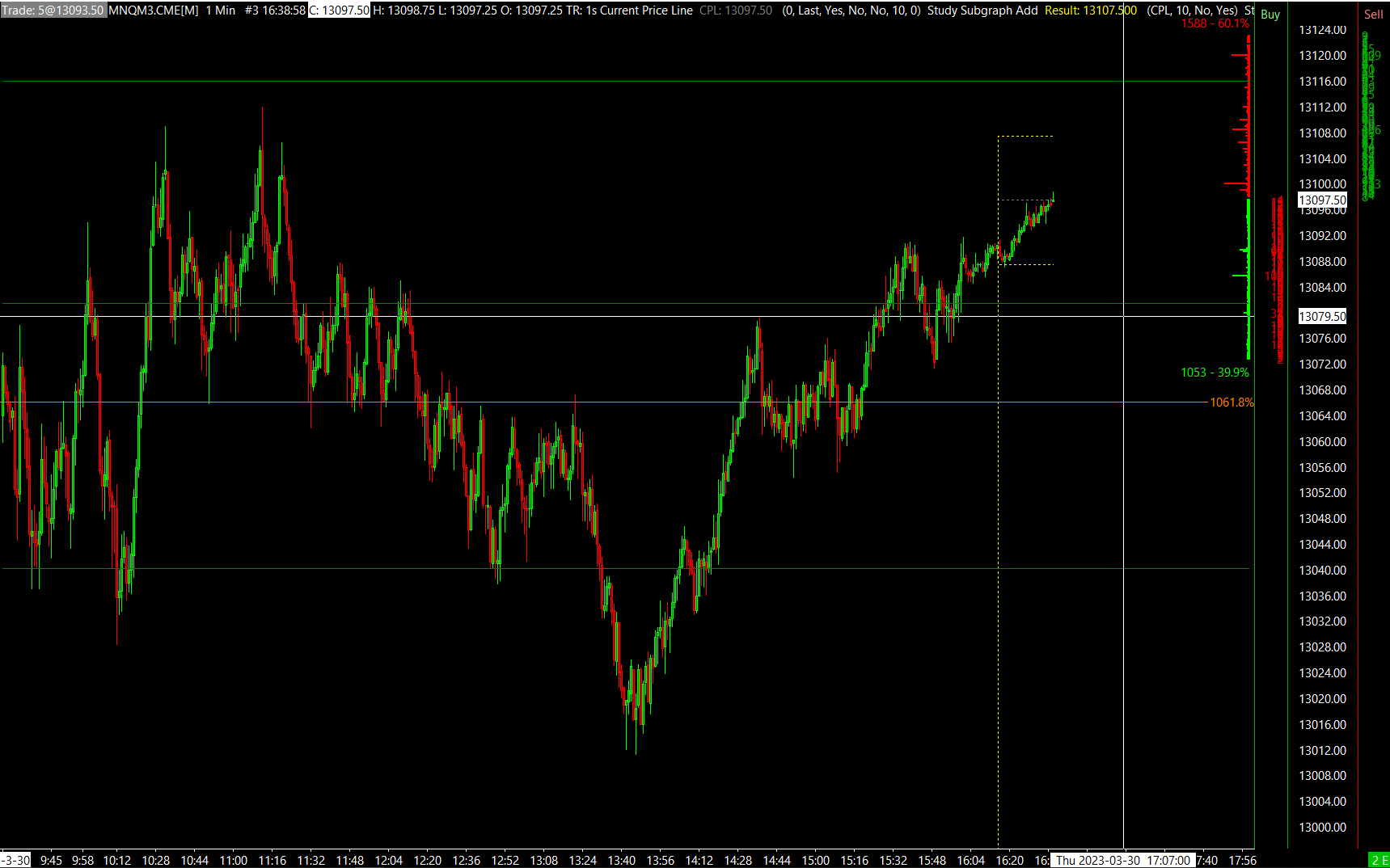

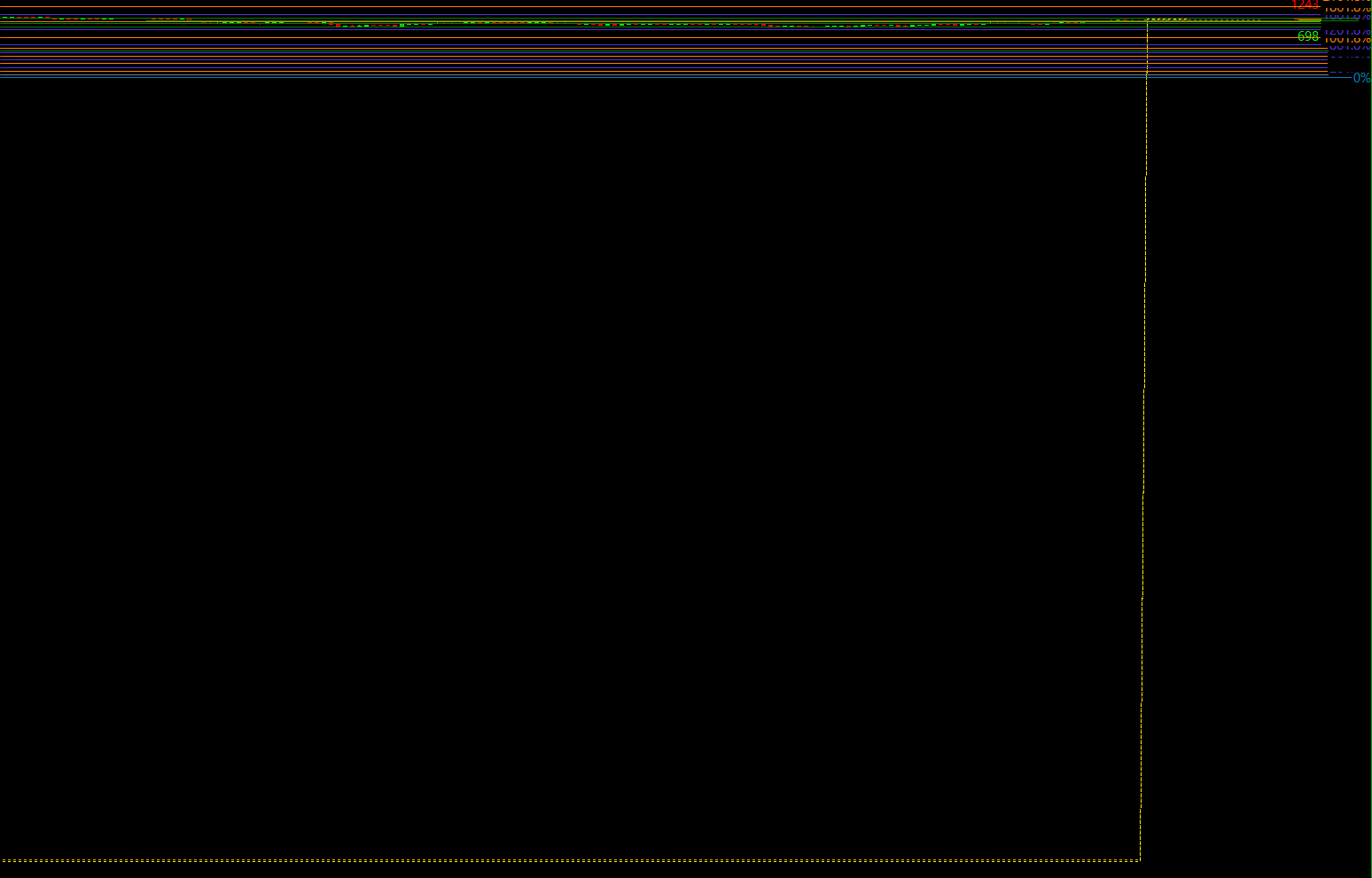

https://prnt.sc/H2vE4pkXfWUS https://prnt.sc/H6yo8U1FQ3pS Hello, I am using the Current Price Line & Study sub-graph Add studies(The dotted lines, add and subtract 10 points) but occasionally a portion of both those studies will drop to 0 which messes with automatic scaling. Is there any current fix for this? Date Time Of Last Edit: 2023-03-28 20:38:28


Untitled.png / V - Attached On 2023-03-28 20:33:50 UTC - Size: 54.98 KB - 80 views Untitled2.png / V - Attached On 2023-03-28 20:36:14 UTC - Size: 36.1 KB - 75 views

[2023-03-28 20:57:39] #2 [Go To First Post]
John - SC Support - Posts: 36350
Check the amount of time for which you have the Current Price Line study displayed. Make sure it covers enough of a time frame that you should not see the Study Subgraph Add drop to zero. The other thing to do is to ensure that the Study Subgraph Add is lower in the list of studies in the study selection window. This is the general order in which the studies calculate, so you want to ensure that the Current Price Line is updated prior to the Study Subgraph Add. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-03-30 20:43:46] #3 [Go To First Post]
User773081 - Posts: 26

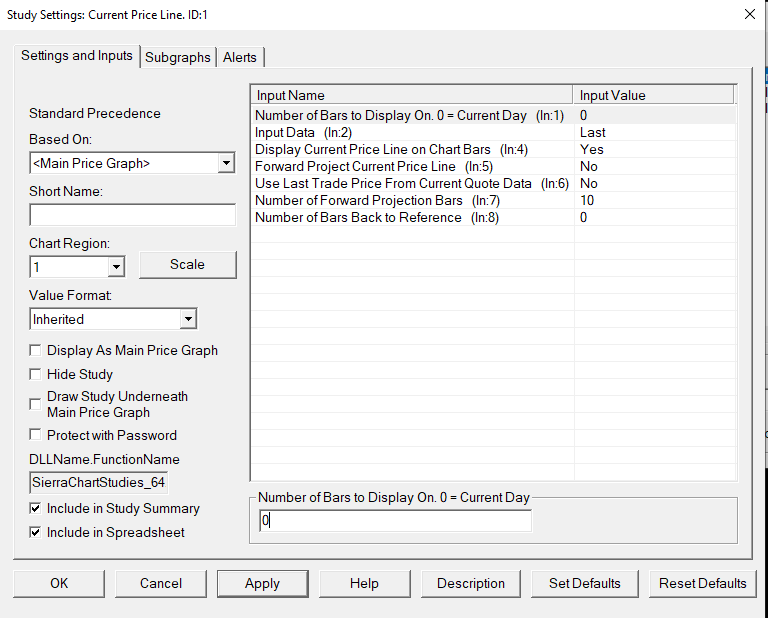

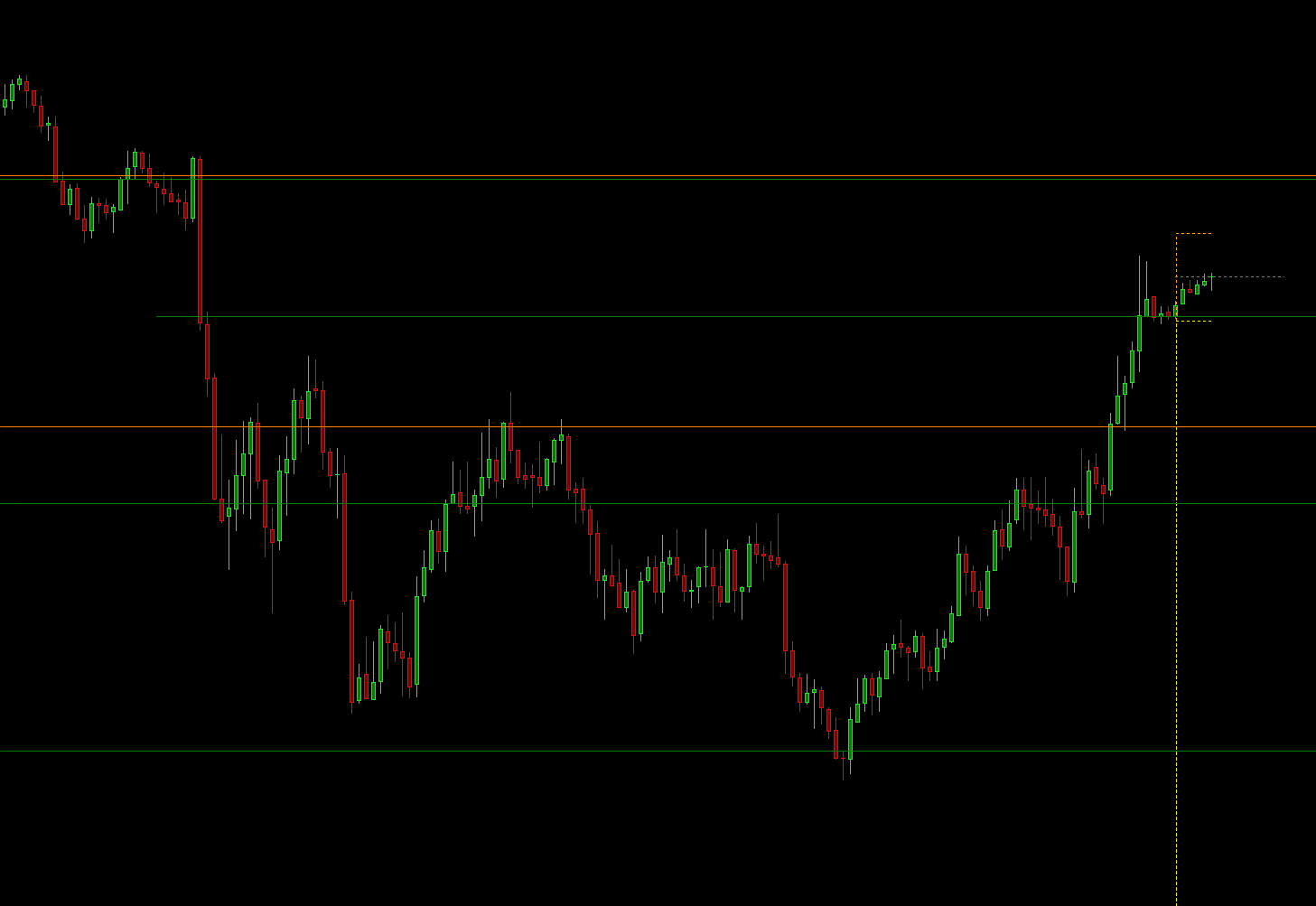

3. https://prnt.sc/xZgPZ4Np2wks 4. https://prnt.sc/qXhcBNWhPZ2O 5. https://prnt.sc/vCi3wF1NVr9g I've uploaded my study settings in the screenshot untitled3. untitled4 had the number of bars to display to 400, while untitled5 is set back to 0 which seems to be the only difference that was made changing any setting Current Price Line is at the top of the list as well. What else could fix this?


Untitled3.png / V - Attached On 2023-03-30 20:40:49 UTC - Size: 50.26 KB - 71 views Untitled4.png / V - Attached On 2023-03-30 20:40:59 UTC - Size: 126.81 KB - 77 views Untitled5.png / V - Attached On 2023-03-30 20:41:05 UTC - Size: 127.55 KB - 68 views

[2023-03-30 21:19:43] #4 [Go To First Post]
John - SC Support - Posts: 36350
Please get us that chart so we can take a look. Follow these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-03-31 14:48:09] #5 [Go To First Post]
User773081 - Posts: 26
Attached the chart, Thank you


Private File

[2023-03-31 17:50:24] #6 [Go To First Post]
John - SC Support - Posts: 36350
Set the Study Subgraph Add Input for Add to Zero Values In Based On Study to No. This should resolve what you are seeing. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-03-31 18:47:35] #7 [Go To First Post]
User773081 - Posts: 26
That fixed it. Highly appreciated Brother, Thank you
