Value area high/low extend
View Count: 741
| [2023-03-19 00:10:46] |
| fish4trout - Posts: 99 |
|

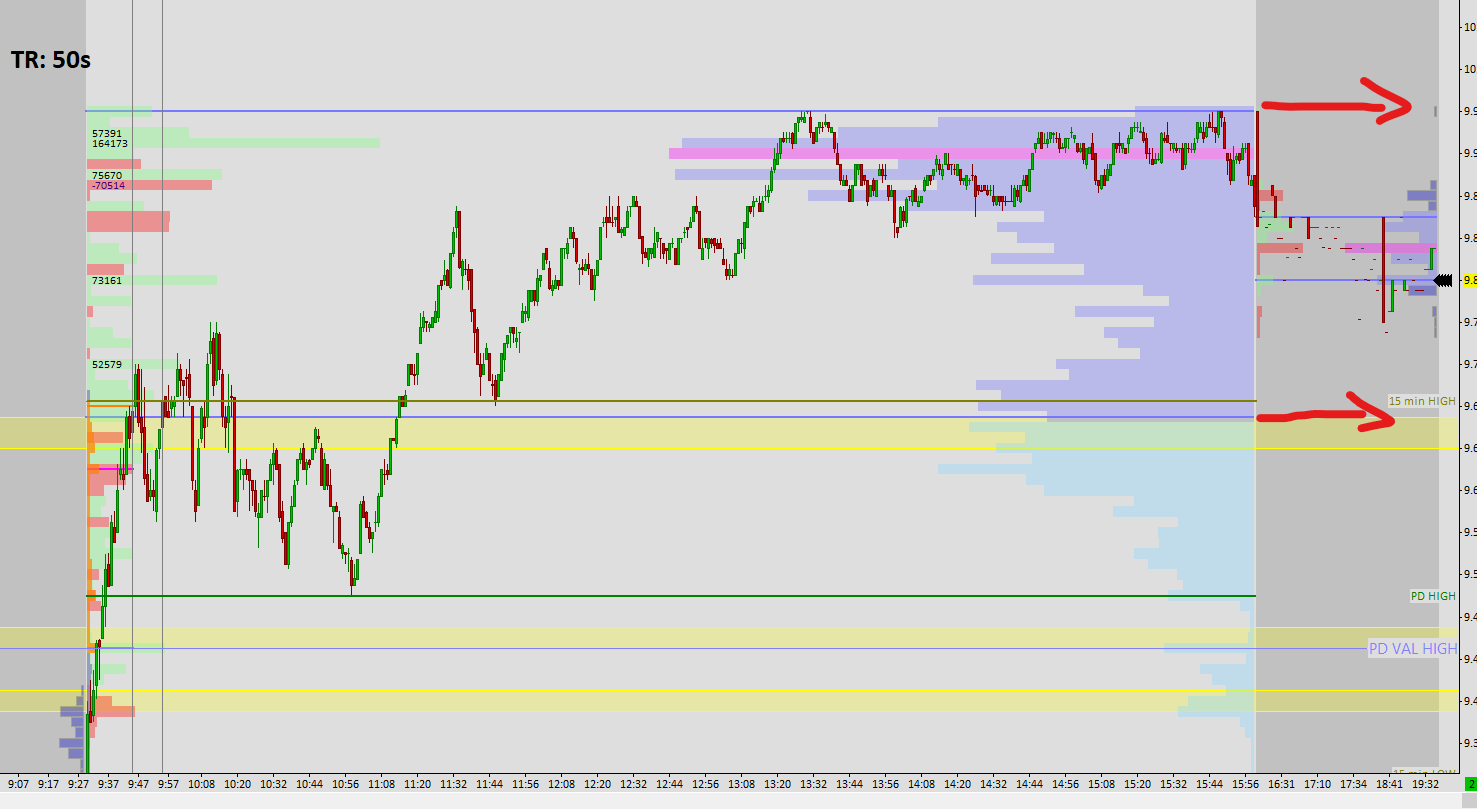

I have my volume profile right aligned, but I want to extend the value area high and low forward 1 day only (red lines in attached pic). I can't seem to figure out the right settings to do this?
|
 val area.png / V - Attached On 2023-03-19 00:10:32 UTC - Size: 46.04 KB - 122 views Attachment Deleted. |
| [2023-03-20 16:43:58] |
| John - SC Support - Posts: 36350 |
|
Set the Input on the Volume by Price study for Extend Value Area to End of Period. Refer to the following: Volume By Price Study: Extend Value Area For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2023-03-22 00:39:36] |
| fish4trout - Posts: 99 |
|
Thanks, but when I do that it extends value area to the left. I want the value area extended forward to next day (red arrows).
|
Attachment Deleted. val area 2.png / V - Attached On 2023-03-22 00:39:26 UTC - Size: 44.14 KB - 111 views |
| [2023-03-22 14:32:57] |
| John - SC Support - Posts: 36350 |
|
To have the lines in the next day, you would need to use the Volume Value Area Lines study and set the Input for Reference n Periods Back to 1. Refer to the following: Volume Value Area Lines For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2023-03-22 23:05:25] |
| fish4trout - Posts: 99 |
|
This worked thanks!
|
