Automatically align prices of separate charts
View Count: 518
| [2023-03-02 07:39:14] |
| User789676 - Posts: 6 |
|

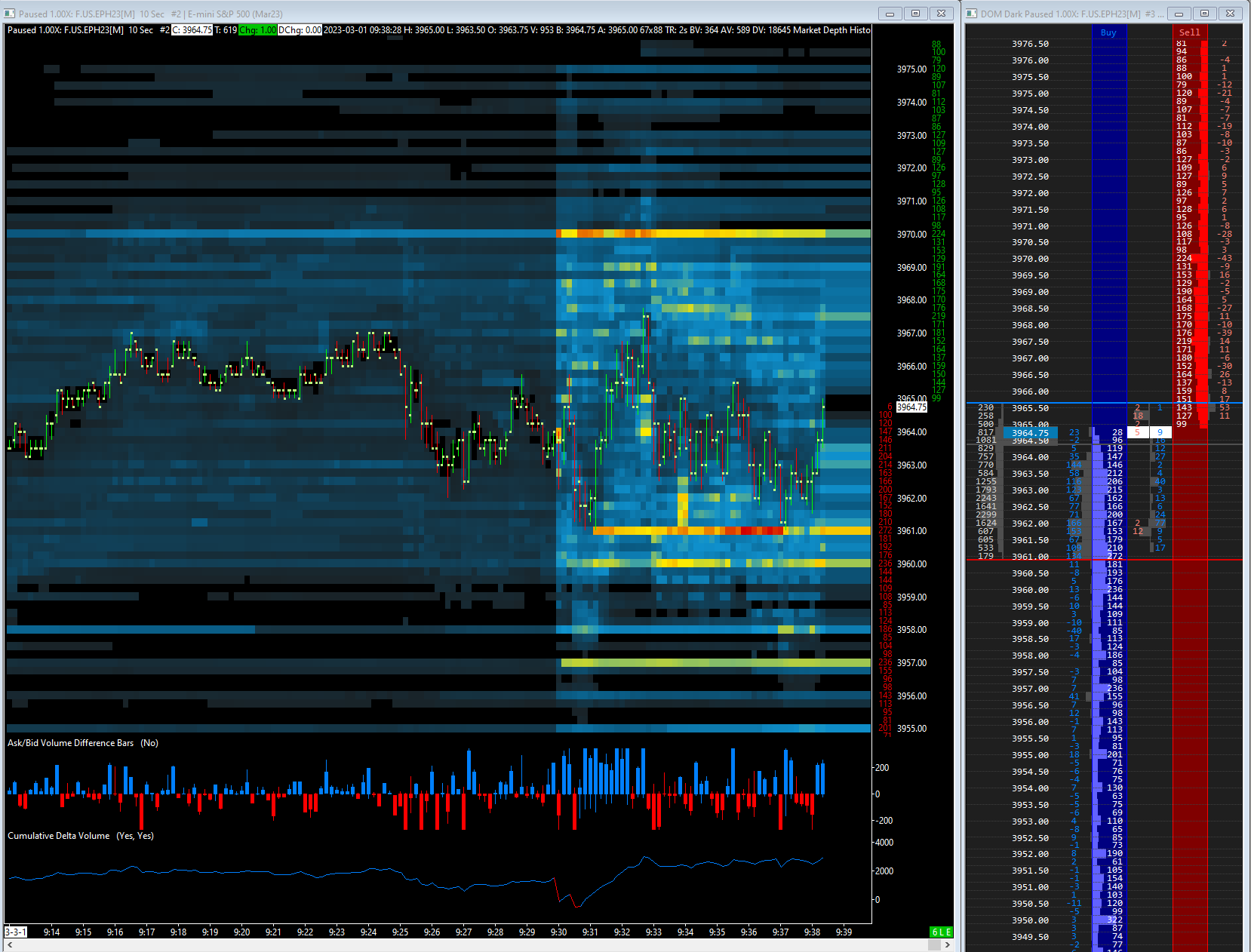

I would like to be able to link separate charts within the same chartbook by price. Jigsaw has this feature. For example, see in attached image, position of current price on the DOM is slightly lower than it is on the primary chart. Also, for scaling, prices on the DOM expand lower than those on primary chart. I realize I can open a DOM on the chart. However, I also want to use the DOM for its own, individual functions as its own chart. How can I automatically align these?
Date Time Of Last Edit: 2023-03-02 13:08:17
|
chart.png| [2023-03-02 17:28:35] |
| John - SC Support - Posts: 34254 |
|
You can use the Linking option for Vertical Scale. Refer to the information here: Chart Settings: Chart Linking (Chart >> Chart Settings >> Linking menu) Just be aware that the Trading DOM is special and only works with a Constant Range scale, so you will need to change the scale on the chart to be a Constant Range. On the initial setup, you will find that if you move the scale a bit, they will then come into alignment. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-07-03 08:45:56] |
| User601931 - Posts: 11 |
|
I noticed a small problem with the Linking option for vertical scale: If you have "Auto Hide Charts Title bar and Scrollbar" set, then the axis between the two charts will never line up correctly. Even if you manually move the scale, they can't line up. You have to turn off the "Hide Chart Title" option. I notice this between a chart & trading DOM window which are linked together. The chart is set to "Constant Range". |
| [2024-07-08 14:37:24] |
| Sierra_Chart Engineering - Posts: 16292 |
|
This is not something we would attempt to do anything about. You need to disable that option.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
