How to Post a Message for Support

Period OHLC Help.

View Count: 473

[2023-01-24 19:06:37] #1 [Go To First Post]
livetotrade - Posts: 17
Can somebody please help me how to input this indicator for previous monthly high and low to show on current month on chart? Thanks alot.

[2023-01-24 21:43:59] #2 [Go To First Post]
John - SC Support - Posts: 36350
Using the Period OHLC - Variable Period set the following Inputs: - Time Period Type: Months - Time Period Length: 1 - Use Current Period: No - Number of days to Calculate: must be greater than 31 Other items as you want them. This will give you the previous month's O/H/L/C displayed on the current month. Refer to the information here: Previous/Period OHLC-Variable Period For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-01-24 21:46:52] #3 [Go To First Post]
John - SC Support - Posts: 36350
Also, if you do not want to see the Open and Close lines, then set the Subgraph Draw Style for those to Hidden. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-01-25 16:45:47] #4 [Go To First Post]
livetotrade - Posts: 17
It only shows the line when i'm on daily chart or higher. Is there a way for it to show on 15 min chart or any other time frame? Thanks

[2023-01-25 17:50:41] #5 [Go To First Post]
John - SC Support - Posts: 36350
It should work fine on 15 min or any other intraday chart. What subgraphs are set to be displayed? For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-01-25 18:19:23] #6 [Go To First Post]
livetotrade - Posts: 17

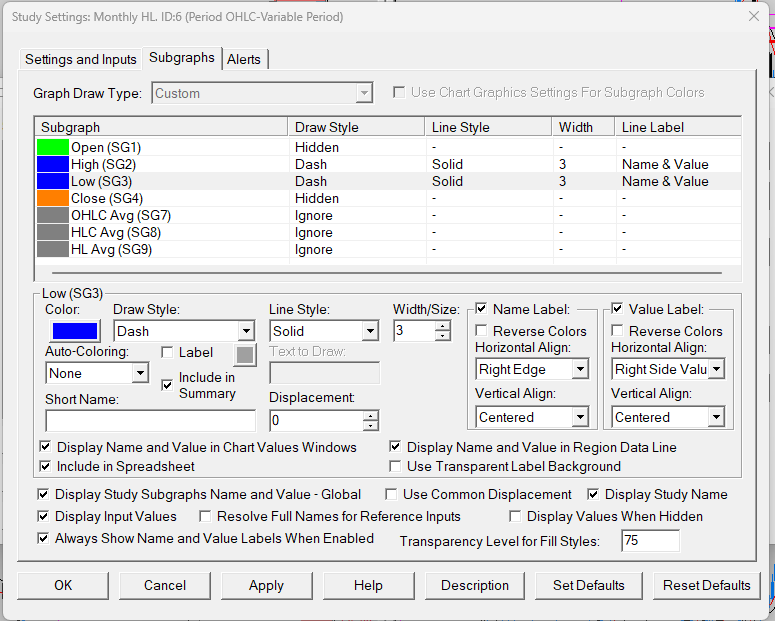

I screenshot in file attached (most default), i also changed to lines but did not work. Date Time Of Last Edit: 2023-01-25 18:19:39


Screenshot 2023-01-25 121609.png / V - Attached On 2023-01-25 18:16:36 UTC - Size: 56.72 KB - 92 views

[2023-01-25 21:40:46] #7 [Go To First Post]
John - SC Support - Posts: 36350
That is fine for the line setup, no issues with that. If you do not have anything showing on your chart at all, then get us a copy of that chart by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-01-26 02:49:26] #8 [Go To First Post]
livetotrade - Posts: 17
Here you go, thanks alot.


Chartbook1.Cht - Attached On 2023-01-26 02:49:13 UTC - Size: 3.63 KB - 205 views

[2023-01-26 15:38:47] #9 [Go To First Post]
John - SC Support - Posts: 36350
From what we see the main issue is that you are wanting information for the previous month, but you do not have all of the previous month's data loaded. Since this is January, you would need to ensure you have all of December's data loaded in the chart. Refer to the following for how to load more Intraday Data: Historical Intraday Data (Missing Data / Download Errors / Viewing More Data): Downloading/Viewing More Historical Intraday Data For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-01-27 16:33:23] #10 [Go To First Post]
livetotrade - Posts: 17
Thank you very much for your help. I got it fixed.
