Numbers Bars Misaligned with Overlay (Bar)
View Count: 487
| [2023-01-08 19:51:03] |
| localman - Posts: 38 |
|

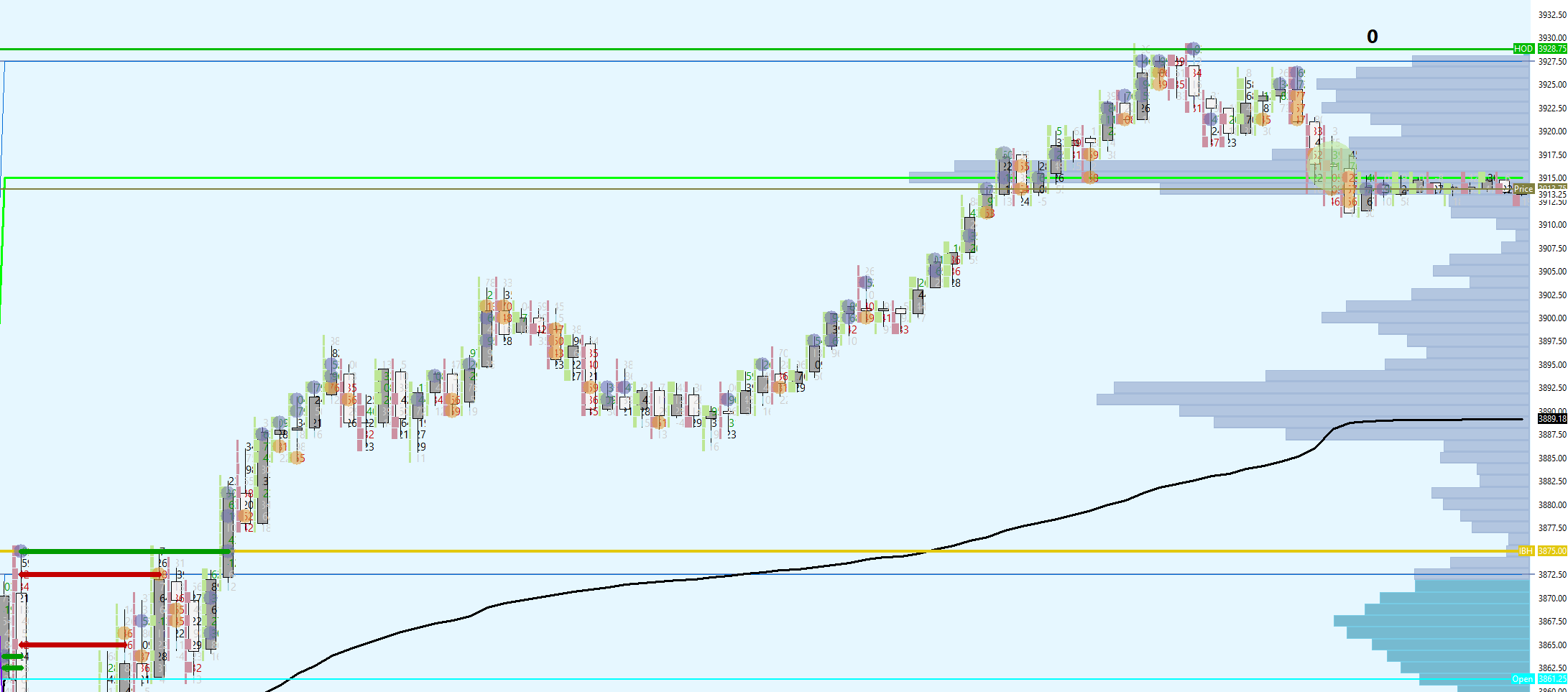

I am running a Numbers Bars chart with several studies on it one of which is Overlay (Bar). I'm not sure how but the O(B) has un-synced from the NB . Sometimes if I adjust the scale of the chart they will briefly align but then returns to being misaligned. I'm sure it's user error but just need to know what I've done wrong here though I don't recall making any changes that immediately caused this to happen. Thank you. |
 image_2023-01-08_144821862.png / V - Attached On 2023-01-08 19:48:26 UTC - Size: 99 KB - 105 views |
| [2023-01-08 20:07:19] |
| localman - Posts: 38 |
|

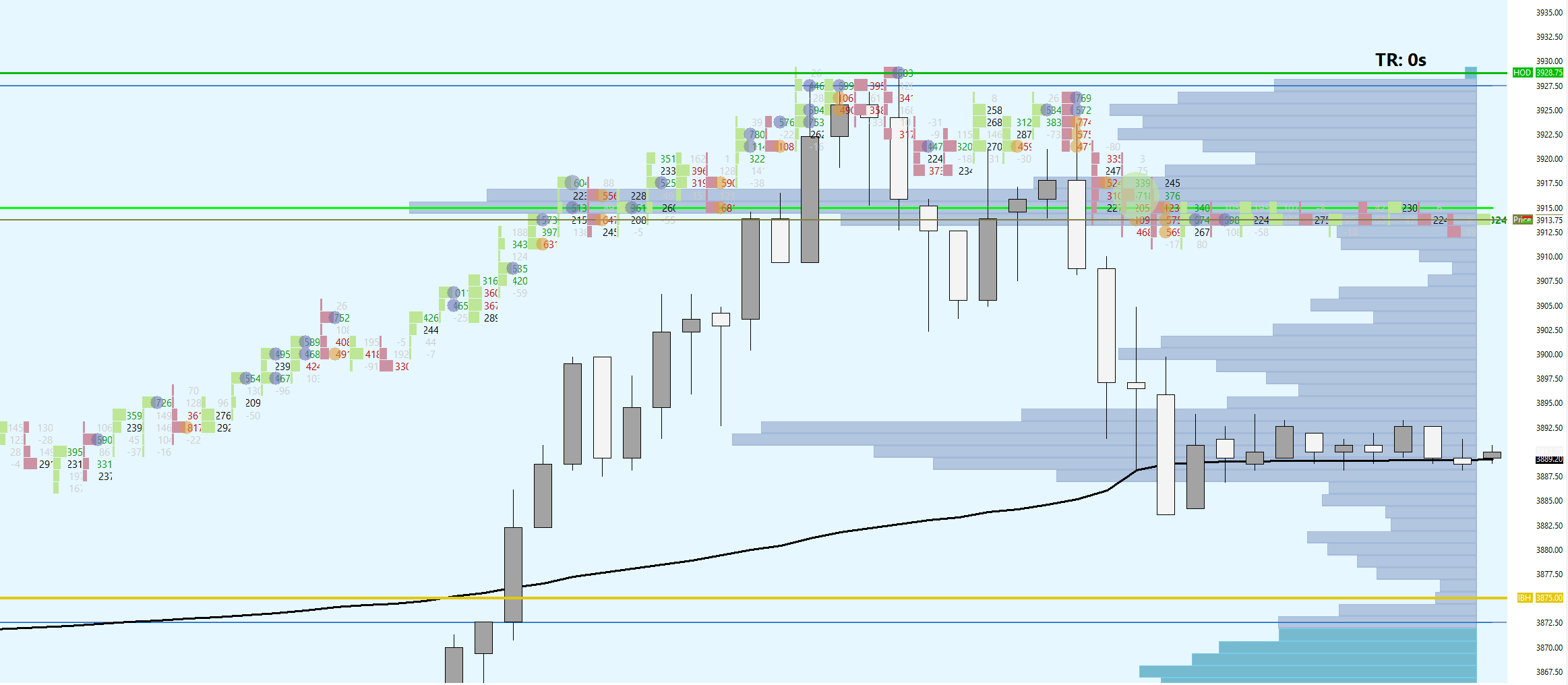

In playing with the Interactive Scale and Scale Range settings (right click on price axis) it seems the more I scale in (smaller total timeframe) on the time axis the greater the misalignment becomes and as I scale out (greater total timeframe) the time axis the more that it re-aligns. However, when scaled out the numbers become all crunched up and unreadable. Thank you. |
| image_2023-01-08_150222689.png / V - Attached On 2023-01-08 20:02:26 UTC - Size: 132.72 KB - 105 views |
| [2023-01-08 20:43:33] |
| localman - Posts: 38 |
|
After stripping down the chart and re-applying the studies it seems that the High/Low for Time Period- Extended study is what knocks the Numbers Bars off of the Overlay (Bar). I am using the HLfTP-E study to show the overnight high and low. Not sure why that study has that effect. Thanks for any help. |
| [2023-01-09 09:47:13] |
| User431178 - Posts: 545 |
|
Try using 'Same as Region' scale setting for the High/Low for Time Period - Extended (Chart Scale and Scale Adjusting: Same As Region (Scale Range))
|
| [2023-01-09 13:40:15] |
| localman - Posts: 38 |
|
I tried and it moved the Numbers Bars however it moved them to another misaligned location. Thanks for trying.
|
| [2023-01-09 13:53:58] |
| User431178 - Posts: 545 |
|
Make sure that Number Bars is at the top of the Studies to Graph list (or at least above the studies visible in the same chart region).
|
| [2023-01-09 17:50:29] |
| John - SC Support - Posts: 36350 |
|
Make sure the Overlay (Bar) is set to a scale of Automatic or Same as Region. Refer to the following: Chart Scale and Scale Adjusting: Maintaining Same Scale for Multiple Graphs in Chart Region For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
