Footprint Chart Combined With Dom

View Count: 1705

[2022-12-31 20:53:10] #1 [Go To First Post]
Stav - Posts: 104
Hi John, Sierra Chart Happy New Year to you all at Sierra Chart. Question:- My trading style is shirt-term scalper and I was wondering is there is a way to overlay (or combine) my current 5 tick Renko footprint chart with my DOM? Essentially what I am asking is that can I see my evolving 5 tick Renko bars moving up/down with the DOM for the same price levels? Rather than having my footprint and DOM as two separate studies alongside each other. If not, I would be more than happy to see the total Bid Volume/Ask Volume traded on the Dom for each successive 5 tick Renko bar? Many thanks. Kind Regards Stephen

[2023-01-03 07:54:00] #2 [Go To First Post]
User135370 - Posts: 162
You just add Chart DOM to your Renko chart Trade tab gives you that option

[2023-01-03 12:46:09] #3 [Go To First Post]
Stav - Posts: 104
Hi, I'm not sure what you mean, sorry I need help (an idiots guide) I don't just want to add any DOM or the standard DOM that comes with Sierra Chart but my configured DOM and footprint. Steps to achieve this would be helpful. Please see my attached DOM and footprint. Thank you for your reply, but I need the sequence of steps to achieve this. Kind Regards Stephen

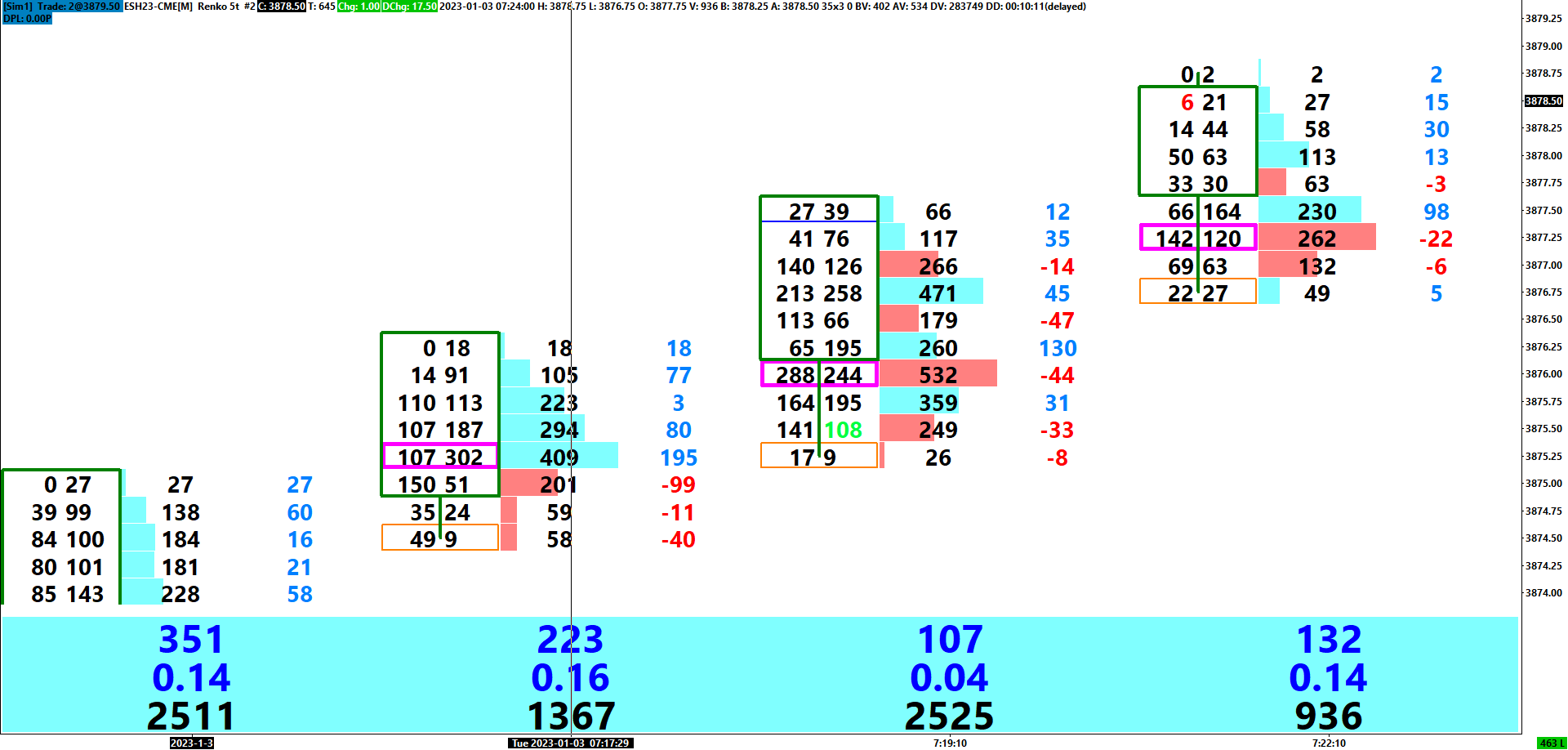

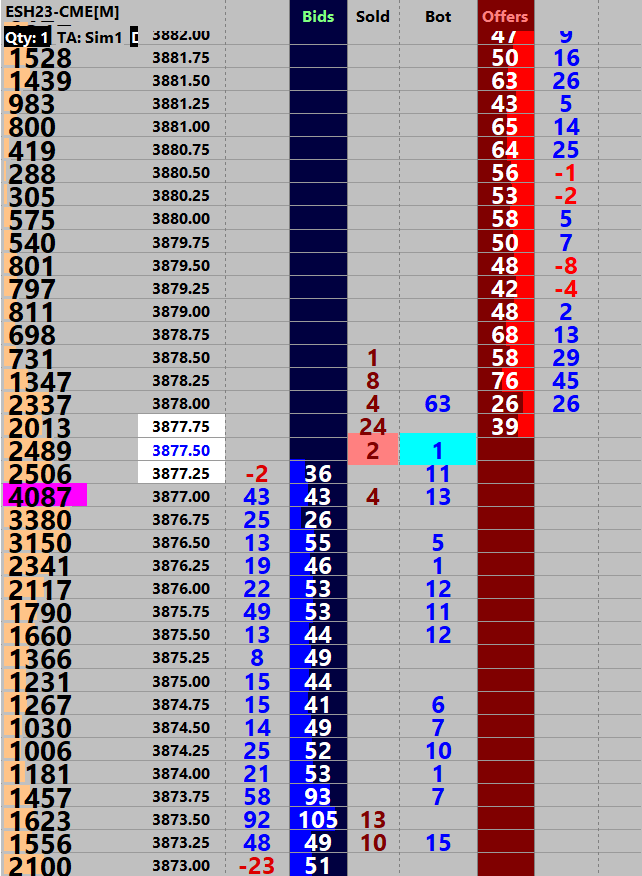

ESH23-CME[M] #9 2023-01-03 07_37_50.795.png / V - Attached On 2023-01-03 12:45:16 UTC - Size: 90.35 KB - 349 views ESH23-CME[M] Renko 5t #2 2023-01-03 07_34_13.860.png / V - Attached On 2023-01-03 12:45:26 UTC - Size: 78.92 KB - 282 views

[2023-01-03 14:09:43] #4 [Go To First Post]
User135370 - Posts: 162
Yes go to trade tab Click trading chart DOM on Then customise it as you would a normal DOM through the customise chart/Trade DOM columns

[2023-01-03 14:39:35] #5 [Go To First Post]
Stav - Posts: 104
Hi, Thanks for your reply. Yep I did that, added the columns I wanted but not able to change fonts and colors like my DOM. How do I change fonts sizes and colors of DOM now attached to my footprint like my configured DOM with trade window? Is it in Global settings? Regards Stephen

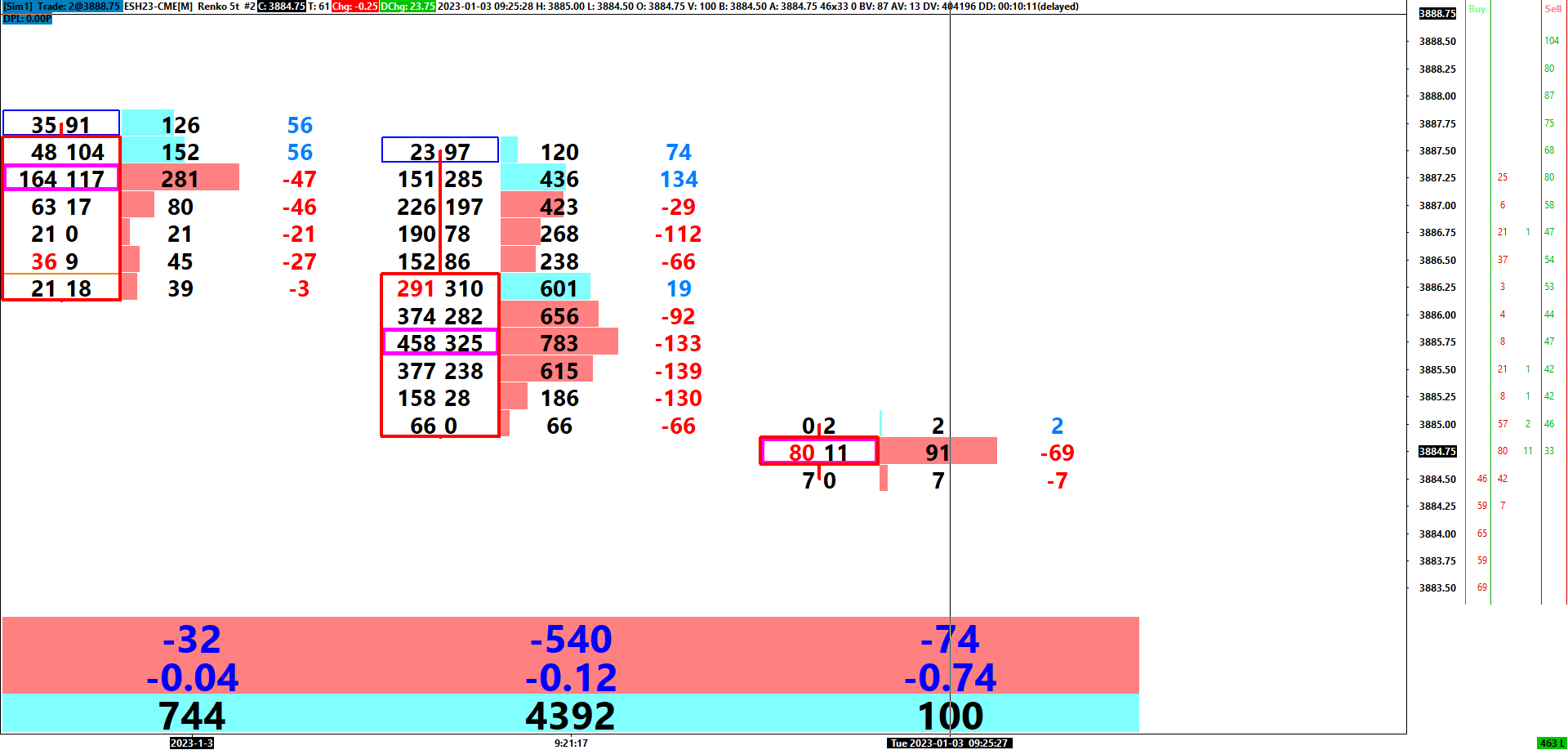

ESH23-CME[M] Renko 5t #2 2023-01-03 09_35_40.846.png / V - Attached On 2023-01-03 14:38:43 UTC - Size: 73.64 KB - 171 views ESH23-CME[M] #9 2023-01-03 07_37_50.795.png / V - Attached On 2023-01-03 14:39:02 UTC - Size: 90.35 KB - 143 views

[2023-01-03 14:54:11] #6 [Go To First Post]
Sierra_Chart Engineering - Posts: 17266
Refer to this page here: Customizing Fonts, Colors, Line Styles, and Widths for Chart Trading, Chart DOM, and Trade DOM Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-01-03 15:55:32] #7 [Go To First Post]
User135370 - Posts: 162
That works too good luck

[2023-01-03 16:37:19] #8 [Go To First Post]
Stav - Posts: 104
Hi Sierra Chart/ User135370 I'm able to change the font sizes with the DOM attached to footprint, but even though I map 1-1 Chart Dom Fields with Trade DOM Fields settings, I am not able to get the new attached DOM with footprint to look like my standalone DOM, so not sure why? Regards Stephen

[2023-01-03 17:51:28] #9 [Go To First Post]
Stav - Posts: 104
Hiya, I think maybe because I am attaching the DOM with Footprint it doesn't allow me to change the background colours to my standalone DOM that I created, most probably I'm wrong. Using Trade> Customise Chart/Trade DOM Column, I have added the Current Traded Bid Volume / Current Traded Ask Volume onto my original constructed DOM and want to know if it is possible for these fields to refresh like the successive Renko bars, rather than just accumulating the bid/ask volumes? That way I wouldn't need to attach my DOM with footprint. Sorry that I'm asking a lot. Appreciate massively your help on this. Kind Regards Stephen

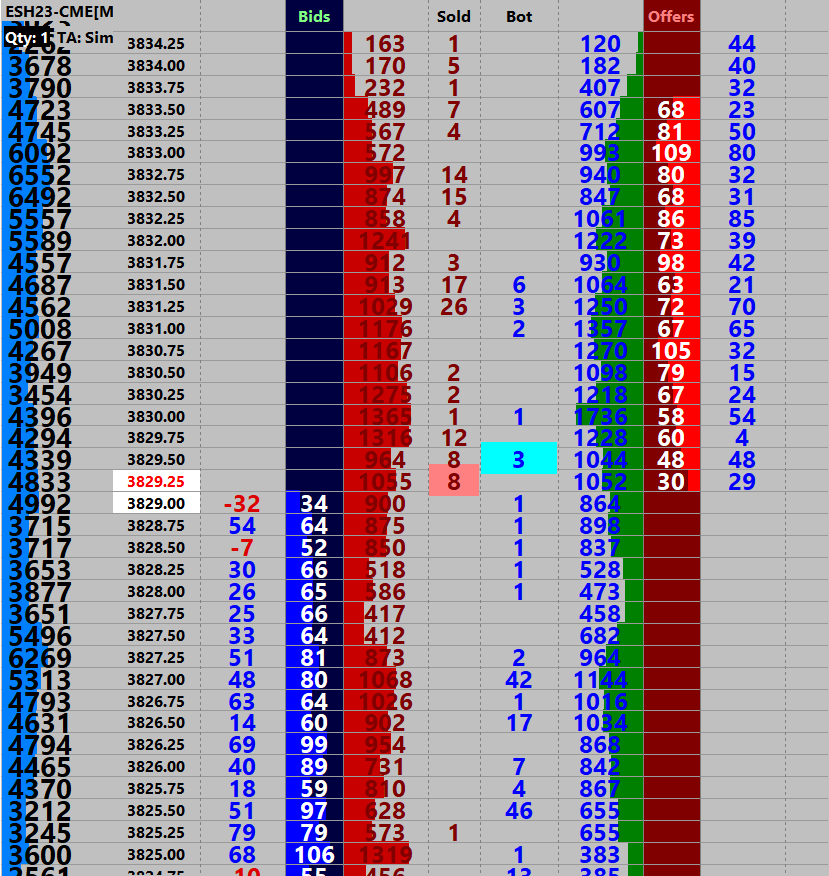

ESH23-CME[M] #5 2023-01-03 12_50_55.572.png / V - Attached On 2023-01-03 17:51:16 UTC - Size: 148.59 KB - 206 views
