Intraday Chart Bar Period - Gap Fill (colour)
View Count: 588
| [2022-10-20 04:01:04] |
| User629461 - Posts: 184 |
|
I'm using a HLC chart and would like to set the gap fill itself to a different colour to the rest of the bar. Is this possible, or is there a Study which allows this to be done? Thanks |
| [2022-10-20 14:12:49] |
| John - SC Support - Posts: 37808 |
|
Sorry, but we are not understanding what it is exactly that you want to do. Can you give us an image showing what you want?
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-10-20 22:43:48] |
| User629461 - Posts: 184 |
|

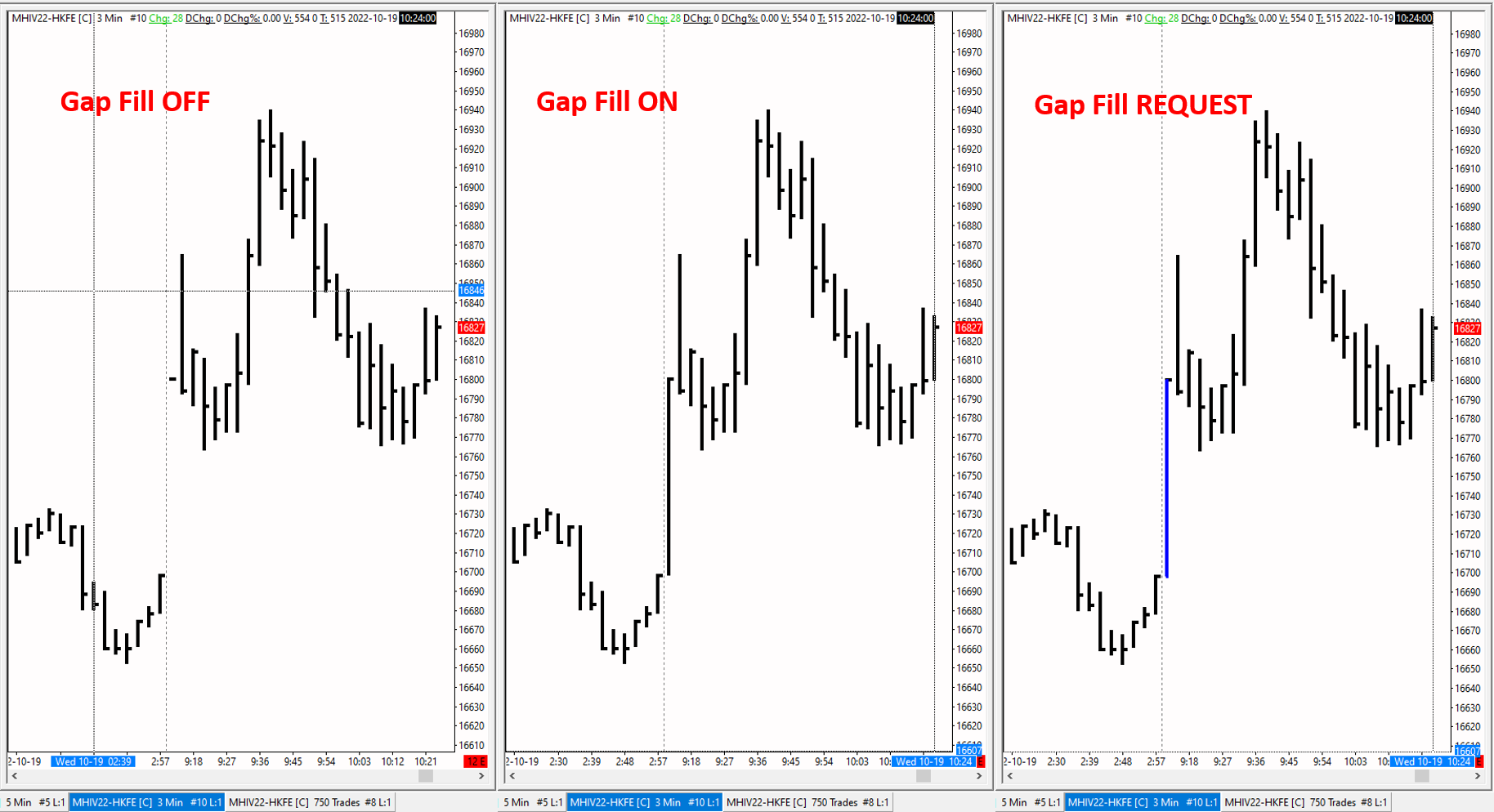

See attached mock-up example with gap fill in a different colour.
|
 Picture1.png / V - Attached On 2022-10-20 22:42:59 UTC - Size: 286.59 KB - 133 views |
| [2022-10-21 16:55:52] |
| John - SC Support - Posts: 37808 |
|
The only way we can think to do this would be to use a second chart that does not have the Gap Fill on it, then use the Color Bar Based On Alert Condition to find the gap by using the following alert condition: = ABS(O - C[-1]) > .1 Where you can adjust the .1 value to avoid small changes in open and close that are not full gaps. Then use the Study/Price Overlay to overlay the coloring to the chart with the gap and it will color the actual gap filling bars. Refer to the following for the Color Bar Based on Alert Condition: Color Bar Based on Alert Condition Refer to the following for the Study/Price Overlay: Study/Price Overlay Study And refer to the following for how to write alerts: Study/Chart Alerts And Scanning: Alert Condition Formula Format For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2022-10-21 16:56:06
|
