[User Discussion] - Help with Study/Price Overlay

View Count: 886

[2022-09-12 00:38:39]
bradyfans - Posts: 16
Quick question here. I'm trying to have a 30 minute candlestick chart and a 5 minute candlestick chart from the same instrument on the same chart, one above the other. I can get these to directly overlay one another (and therefore unable to really see the 5 minute), but for the life of me I can't figure out how to get the 2 TF price graphs separate from each other. I'm sure there is a simple step to do this, but I can't seem to find it in the documentation or settings. Anyone know? Thanks!
[2022-09-12 00:56:01]
Sawtooth - Posts: 4185
Is this what you want to do?

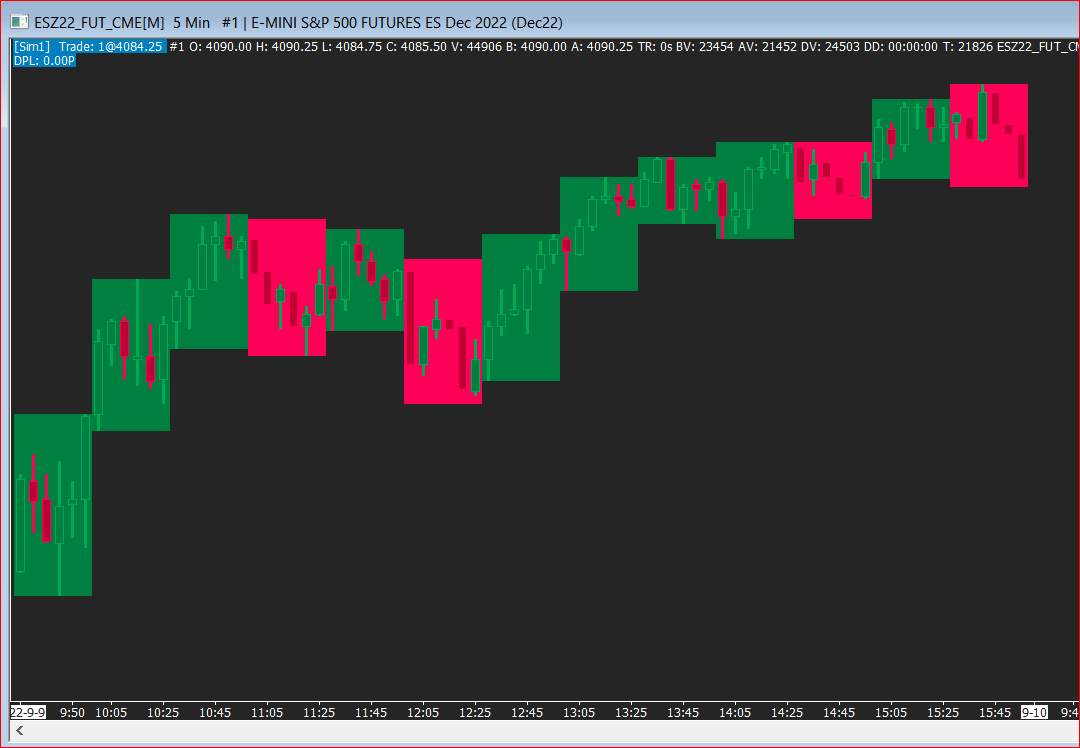

image30min underlay.PNG / V - Attached On 2022-09-12 00:55:51 UTC - Size: 34.7 KB - 119 views
[2022-09-12 02:33:28]
bradyfans - Posts: 16
I was thinking one would be above the other, but I think what you have in the image may be more useful. I assume I have to use the 30 minute as the source, the 5 min as the destination, and increase the source candle width to 5x the 5 minute candle size, or something along those lines, as well as make the source transparent?
[2022-09-12 03:09:02]
Sawtooth - Posts: 4185
The 30 min chart is the source, the 5 min chart is the destination, where the Study/Price Overlay study is.

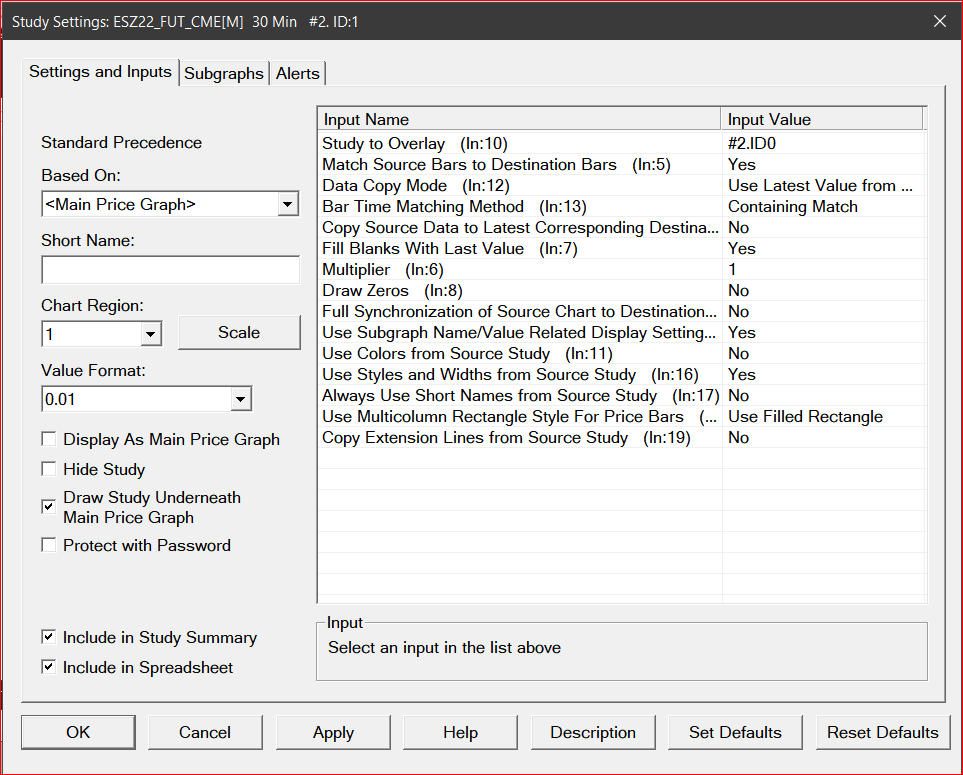

image30 min underlay settings.PNG / V - Attached On 2022-09-12 03:08:51 UTC - Size: 58.01 KB - 115 views
