Sharing levels from one chartbook to another

View Count: 1451

[2022-09-02 09:34:03]
User707307 - Posts: 84
Hello,

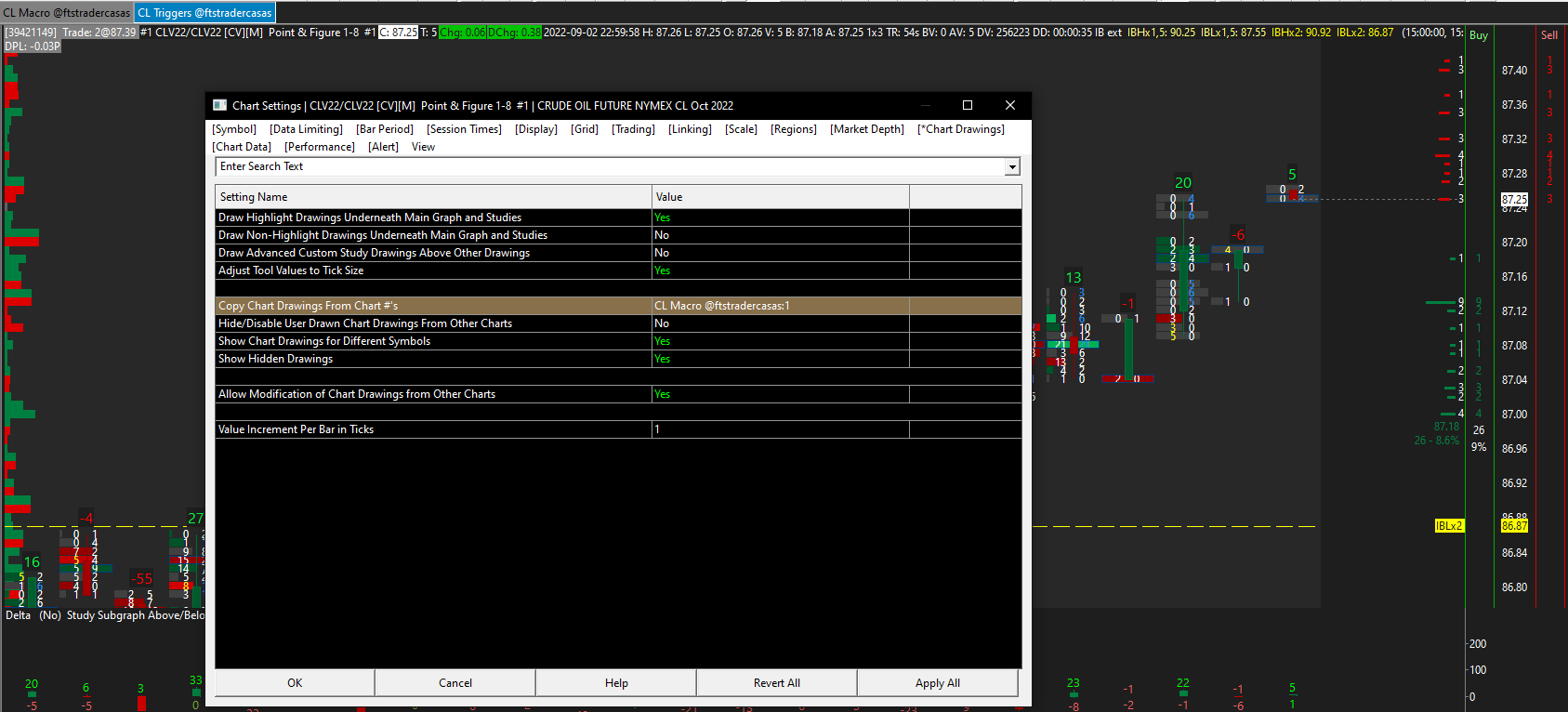

I just found a way to share levels from one chartbook to another (see picture)
But I don't know the name of my chartbooks. Which number do I have to put in there, or how can I know the number of my chartbooks.

Thank you
imageSharing chartbooks.png / V - Attached On 2022-09-02 09:32:59 UTC - Size: 12.37 KB - 167 views
Attachment Deleted.
[2022-09-02 10:40:23]
User431178 - Posts: 615
How can you not know the name of the chartbook, you must be opening it in the first place and it/they must open to copy drawings from?

Look at the top of the main Sierra Chart window, does it have the current chartbook name?
Also, the menu CB lists the names of all the currently open chartbooks.

Copying Chart Drawings from Other Charts Automatically: Copying Chart Drawings from Other Charts
[2022-09-02 11:10:52]
User707307 - Posts: 84
Yes I already tried that. But levels are still not shown on the charts (see attached pictures)

I can see the name on the top left. Which I added to the copy chart drawings setting.

Is there something that I am doing wrong? I tried everything I know already.
imageNames.png / V - Attached On 2022-09-02 11:09:05 UTC - Size: 2.16 KB - 122 views
imageCopy chart drawings.png / V - Attached On 2022-09-02 11:09:17 UTC - Size: 3.19 KB - 127 views
[2022-09-02 11:36:52]
User431178 - Posts: 615
See very simple example attached.

2 Chartbooks: Source & Destination
Drawing copied from chart #1 in source to chart #1 in destination.

Destination chart has value Source:1 for setting Copy Chart Drawings from Chart #'s.
attachmentDestination.Cht - Attached On 2022-09-02 11:34:56 UTC - Size: 2.96 KB - 254 views
attachmentSource.Cht - Attached On 2022-09-02 11:34:59 UTC - Size: 3.08 KB - 177 views
[2022-09-03 00:16:45]
User707307 - Posts: 84
Ok thank you. Now I figured it out.

But I still have an issue...
Drawings are shown correctly on my ES charts, not on my CL tough (see picture)

Settings are all the same, the symbol is set up correctly, I don't get it...
Which can be the reason for this?

Thank you
imageChart drawings.png / V - Attached On 2022-09-03 00:16:43 UTC - Size: 94.99 KB - 176 views
[2022-09-06 14:16:35]
John - SC Support - Posts: 38678
We do not know why you are having an issue with your CL Charts, but the one thing we want to point out is that you should not use special characters (like the @ sign) in your Chartbook names. We are wondering if this could be the reason for the issue.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2022-09-06 19:23:48]
User707307 - Posts: 84
I changed the charts and they don't have the @ now, and the issue still happens.

I tried absolutely everything, cant find it...
[2022-09-06 22:18:25]
OriolCasas - Posts: 189
Somehow it also stopped sharing the levels to ES lower timeframe charts
[2022-09-07 16:15:49]
John - SC Support - Posts: 38678
Please attach the chartbooks you are using to this thread for us to take a look. Follow the instructions at the following link for how to attach a file.
https://www.sierrachart.com/index.php?page=PostingInformation.php#AttachFile
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2022-09-08 13:33:16]
OriolCasas - Posts: 189
Here there are the ones from CL
attachmentCL Macro @ftstradercasas.Cht - Attached On 2022-09-08 13:32:47 UTC - Size: 126.92 KB - 276 views
attachmentCL Triggers @ftstradercasas.Cht - Attached On 2022-09-08 13:32:51 UTC - Size: 30.4 KB - 207 views
Attachment Deleted.
[2022-09-08 13:35:18]
OriolCasas - Posts: 189
Here the ES charts.

There's something else that has to be looked tough. If it's possible.

When using the initial balance for POint and figure charts (check ES 09.07 yesterday) sometimes it's not shown on the right time. How is this possible?

Thank you
attachmentES Macro @ftstradercasas.Cht - Attached On 2022-09-08 13:33:31 UTC - Size: 147.22 KB - 241 views
attachmentES Triggers @ftstradercasas.Cht - Attached On 2022-09-08 13:33:34 UTC - Size: 39.82 KB - 155 views
[2022-09-08 17:27:52]
John - SC Support - Posts: 38678
With regards to the drawing copying between chartbooks, this is working fine. The one thing we want to point out is that you need to look closely at the values where the drawings are located in the source chart and therefore where they will show up in the destination chart.

For example, with the CL chartbooks, you have chart #1 in the "CL Triggers @ftstradercasas" chartbook copying drawings from chart #1 in the "CL Macro @ftstradercasas" chartbook. "Chart #1 - CL Triggers" shows levels from 85.35 to 86.15 when the scales are reset for the current bars. In "Chart #1 CL Macros" the closest drawing is an extended ray at a level of 85.72. Relatively speaking, this is a long way above the current bars.

--

We do not see anything wrong with the IB levels, but we may not be looking at the ones that you are specifying, as you have a number of studies on your charts. Let us know which chart in particular shows the issue and the specific study and what exactly is wrong and we will take a look again.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2022-09-08 20:22:27]
User707307 - Posts: 84
Check the chart Trigger in ES Triggers @ftstradercasas
[2022-09-08 20:54:01]
John - SC Support - Posts: 38678
The first issue is that your Session Times are incorrect. You have the Evening Session overlapping the Regular Trading Hours. You either need to turn off the Evening Session or adjust the hours so they do not overlap with the day session. Refer to the information here:
Chart Session Times

After you get that worked out, you will still only see the IB information when there is a bar that represents that trading day displayed in the graphics area. If you are only displaying today's trading and the time for the IB has not occurred yet, then you will not see any IB information displayed.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
