Rename and Compile an Existing SC Study for Distribution
View Count: 461
| [2022-08-05 06:36:17] |
| User429065 - Posts: 128 |
|
In an effort to protect a proprietary combination of studies within the "Study Subgraphs Average - Multiple" study, I'm renaming it within the code using Notepad++, then trying to compile it using SC Remote or Visual Studio. Eventually, I'll protect it with a password. After several hours of following the "step-by-step instructions", I'm still not getting the required DLL file (see the attached result). Please advise, thank you very much! #include "sierrachart.h" #include "scstudyfunctions.h" SCSFExport scsf_TrendeX(SCStudyInterfaceRef sc) { SCSubgraphRef Subgraph_Average = sc.Subgraph[0]; SCFloatArrayRef Array_SubgraphCount = sc.Subgraph[0].Arrays[0]; if (sc.SetDefaults) { sc.GraphName = "TrendeX"; sc.ValueFormat = 3; sc.AutoLoop = 0;//manual looping sc.CalculationPrecedence = LOW_PREC_LEVEL; Subgraph_Average.Name = "TrendeX"; Subgraph_Average.DrawStyle = DRAWSTYLE_LINE; Subgraph_Average.LineWidth = 2; Subgraph_Average.PrimaryColor = RGB(0, 255, 0); Subgraph_Average.DrawZeros = false; int StudyReferenceIndex = 0; for (int InputIndex = 0; InputIndex < 40; InputIndex += 2) { StudyReferenceIndex++; sc.Input[InputIndex].Name.Format("Use Study Subgraph Reference %d", StudyReferenceIndex); sc.Input[InputIndex].SetYesNo(false); sc.Input[InputIndex + 1].Name.Format("Study Subgraph Reference %d", StudyReferenceIndex); sc.Input[InputIndex + 1].SetStudySubgraphValues(0, 0); } return; } int NumberUsedSubgraphs = 0; int CalculationStartIndex = sc.GetCalculationStartIndexForStudy(); sc.EarliestUpdateSubgraphDataArrayIndex = CalculationStartIndex; for (int SubgraphIndex = 0; SubgraphIndex < 20; SubgraphIndex++) { if (!sc.Input[SubgraphIndex * 2].GetYesNo()) continue; SCFloatArray StudyArray; sc.GetStudyArrayUsingID(sc.Input[SubgraphIndex * 2 + 1].GetStudyID(), sc.Input[SubgraphIndex * 2 + 1].GetSubgraphIndex(), StudyArray); if (StudyArray.GetArraySize() == 0) continue; NumberUsedSubgraphs++; for (int BarIndex = CalculationStartIndex; BarIndex < sc.ArraySize; BarIndex++) { if (NumberUsedSubgraphs == 1) { Subgraph_Average[BarIndex] = 0; Array_SubgraphCount[BarIndex] = 0; } //If the input subgraph is zero at this bar index, then do not include it in the average. if (StudyArray[BarIndex] == 0) continue; Subgraph_Average[BarIndex] += StudyArray[BarIndex]; Array_SubgraphCount[BarIndex] += 1; } } for (int BarIndex = CalculationStartIndex; BarIndex < sc.ArraySize; BarIndex++) { if(Array_SubgraphCount[BarIndex] != 0) Subgraph_Average[BarIndex] /= Array_SubgraphCount[BarIndex]; } } Date Time Of Last Edit: 2022-08-05 06:38:36
|

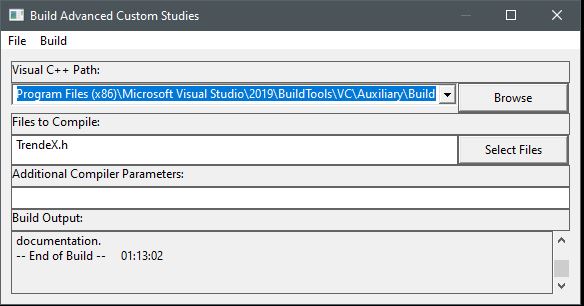

 Build DLL.JPG / V - Attached On 2022-08-05 06:16:40 UTC - Size: 38.97 KB - 119 views |
| [2022-08-05 10:59:41] |
| Sierra_Chart Engineering - Posts: 18796 |
|
When you build this, we need to see the entire build output, so we can see the errors.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2022-08-05 10:59:55
|
| [2022-08-05 14:56:16] |
| John - SC Support - Posts: 38678 |
|
You are trying to build a header file, not a .cpp file. Also, the remote build option does not work with separate header files, you would need to have everything in the .cpp file. Refer to section 19.9 at the following link: Advanced Custom Study Interface and Language (ACSIL): Step-By-Step Instructions to Create an Advanced Custom Study Function For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
