candlestick disappeared
View Count: 702
| [2022-07-31 17:57:43] |
| User685236 - Posts: 4 |
|

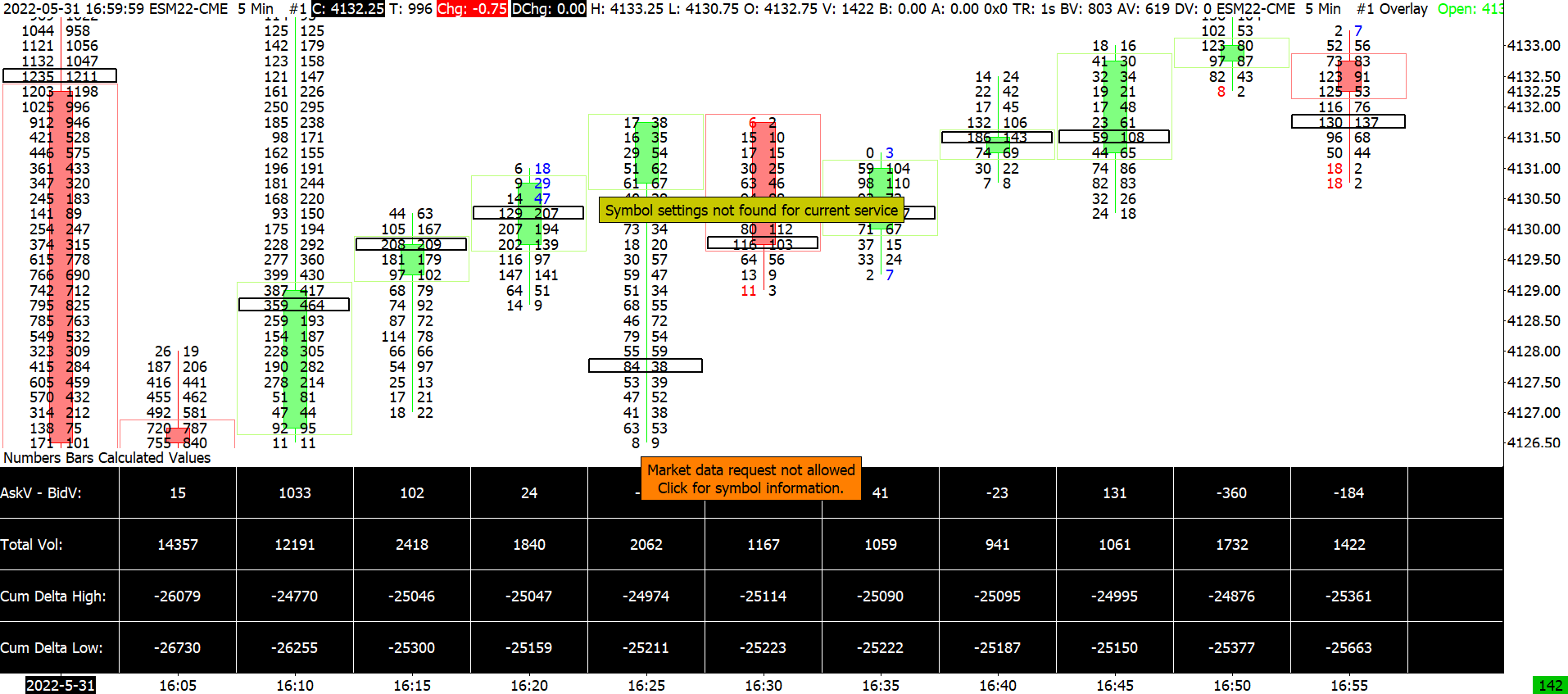

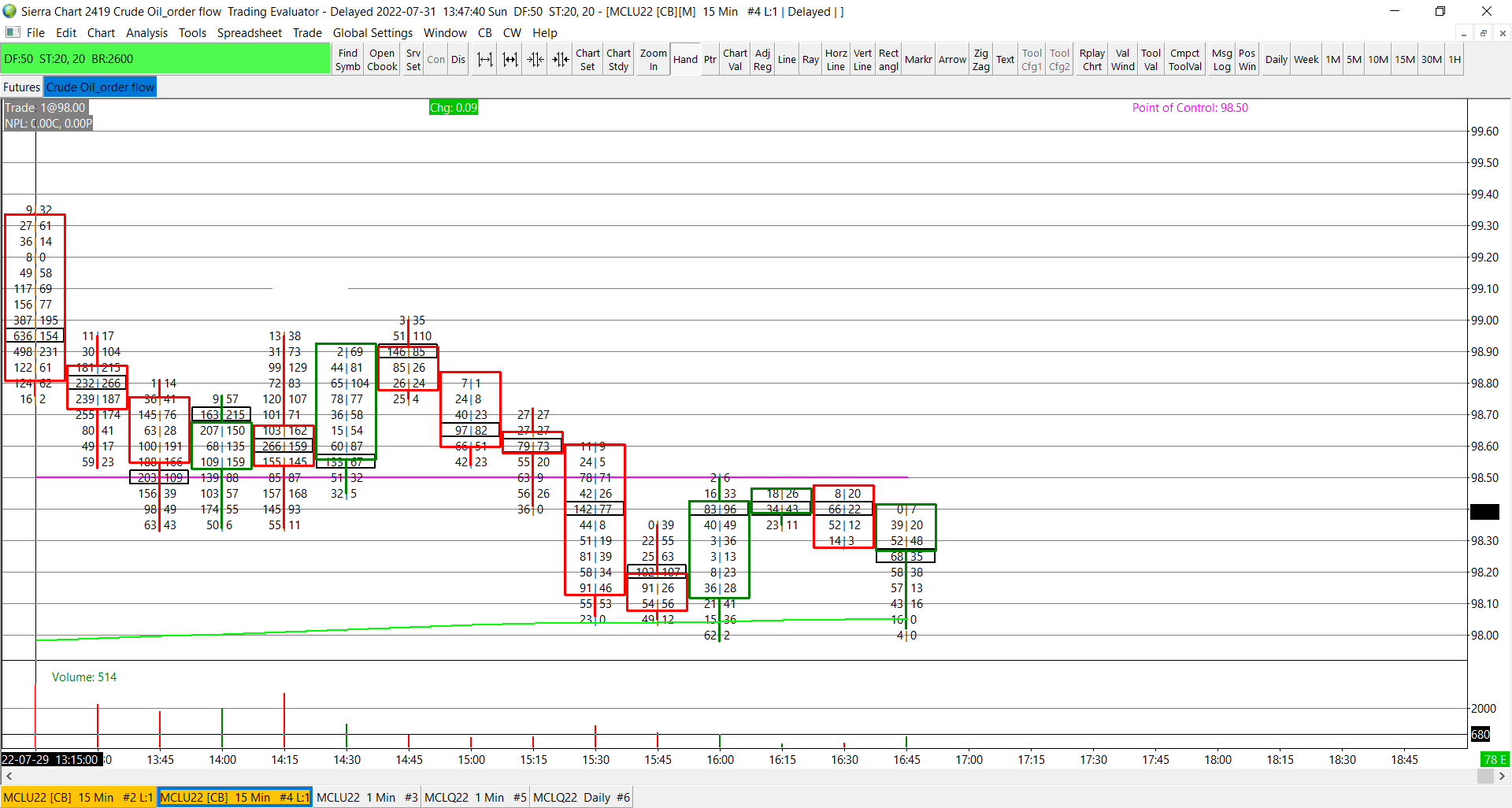

Hi I'm experimenting the number candlestick (footprint) and as soon as I added the study the normal candle stick completly disappeared and I couldn't find a way to get it back (see picture 1)even hiding all studies, I'd like to reproduce the Sierra sample (picture 2) How can I do it ? |
 number graph.png / V - Attached On 2022-07-31 17:56:36 UTC - Size: 89.63 KB - 187 views Sierra sample.png / V - Attached On 2022-07-31 17:56:44 UTC - Size: 112.5 KB - 147 views |
| [2022-08-01 09:59:19] |
| |
|
We do not understand this since we do see candlestick bars in each of those screenshots. However, refer to: Numbers Bars: Open and Close Marker Style Also refer to: Numbers Bars: Drawing Open to Close Boxes on Side of Numbers Bar Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2022-08-01 10:00:00
|
| [2022-08-03 16:39:31] |
| User685236 - Posts: 4 |
|
the candlestick that you see in the "number graph" screenshot is the configuration done in the number chart indicator nor the real candlestick, in the second screenshot (Sierra example), there is another candlestick inside whic is the original candlestick that I cannot display and I'm looking a way to reproduce your configuration
|
| [2022-08-03 19:31:17] |
| John - SC Support - Posts: 38678 |
|
In order to display the Candlestick with the Numbers Bars, you would use the Study/Price Overlay and overlay the Main Price Graph from that chart. You will want to adjust the candlestick properties to make it thin to fit in between the numbers. To do this, you will want to use the Graphics Settings - Chart and be sure to uncheck the option for Use Global Graphics Settings Instead of These Settings. Then adjust the Candlestick Width % on the Other Tab. Refer to the information here: Graphics Settings: Candlestick Width % (Global Settings >> Graphics Settings >> Other) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
