I would like to display the value of the difference between Overnight Hi & Lo
View Count: 688
| [2022-06-30 17:02:55] |
| User_ML - Posts: 17 |
|
I am having a problem displaying the value difference between Overnight hi & lo
|
| [2022-06-30 18:29:55] |
| John - SC Support - Posts: 38678 |
|
Use the High Low for Time Period study to find the High and Low for the evening session period (enter the Evening Session Times for the Start and End). Then use the Spreadsheet Formula to calculate the difference by entering the following equation: =ID1.SG1 - ID1.SG2 Where ID1 is the ID of the High/Low for Time Period study. Refer to the following: High/Low for Time Period Spreadsheet Formula For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-07-02 14:11:49] |
| User_ML - Posts: 17 |
|
I don't have a problem calculating difference just displaying it on chart.
|
| [2022-07-02 20:03:47] |
| User829162 - Posts: 31 |
|
To Display the Values, I use the Study "Text Display For Study" There is another study called "Text Display For Study from Chart" Text Display for Study or Text Display For Study from Chart, is a study which is designed to give you a large text display of the value at the last bar in the chart of the selected Subgraph of the selected Study on any chart in the Chartbook. |
| [2022-07-03 15:52:03] |
| User_ML - Posts: 17 |
|

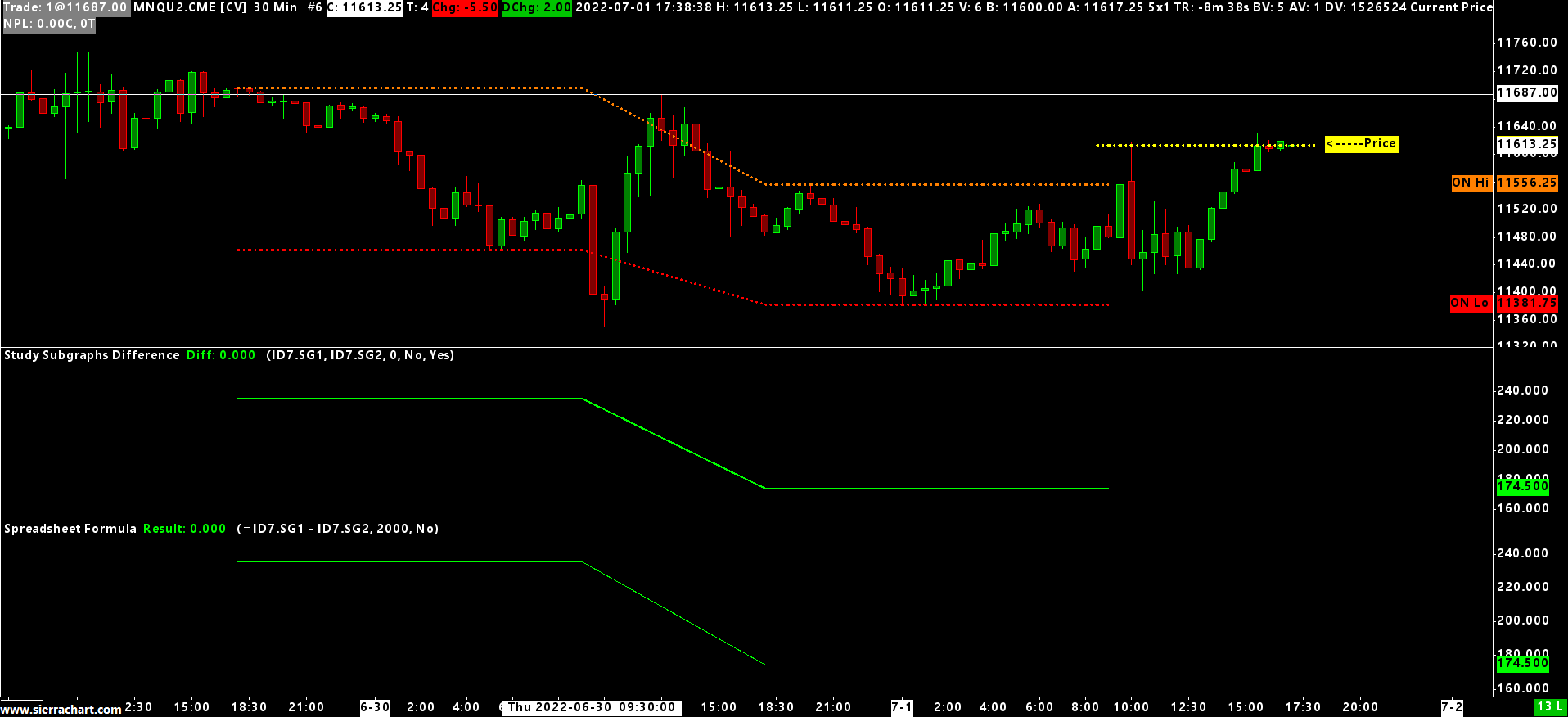

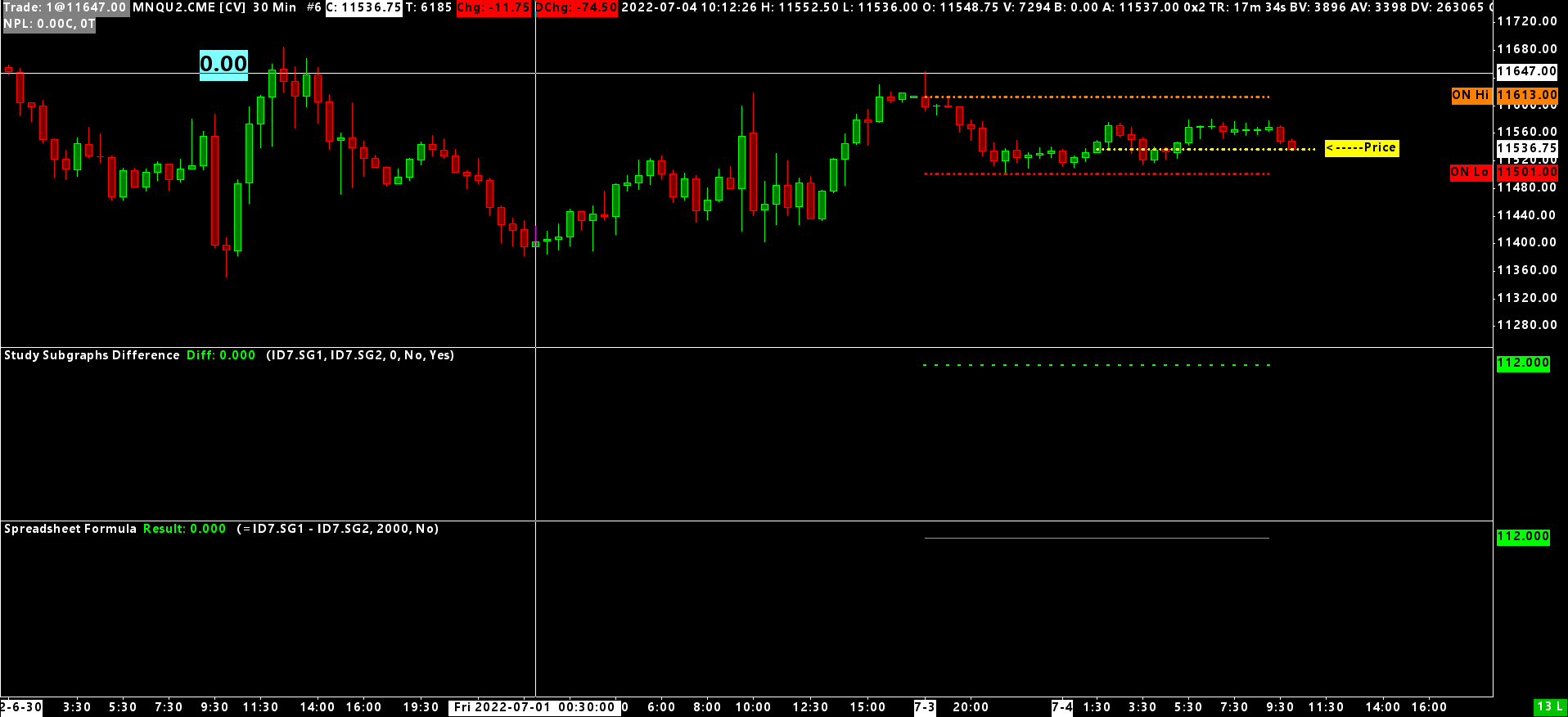

I am using that but just showing study name not value. I can calc the number in 2 diff studies but can't seem to show it on the work chart?? https://www.sierrachart.com/image.php?Image=1656862867751.png https://www.sierrachart.com/image.php?Image=1656863504202.png |
| [2022-07-03 19:10:45] |
| User829162 - Posts: 31 |
|

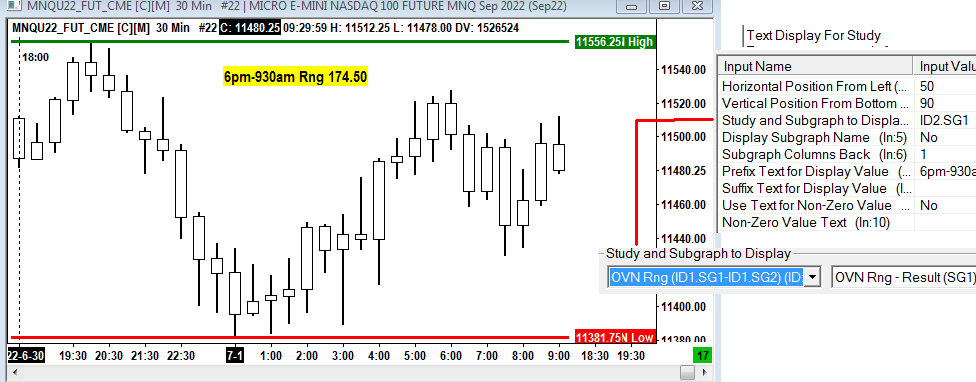

Using a Time Based Chart and Sessions Starts and Ends just the time you want for Overnight Session, say, 18:00 - 09:29:59 ONLY. Text Display for Study Captures the Values https://www.sierrachart.com/image.php?Image=1656875316758.png |
 High Low Time Period 6pm to 930am MNDU2 01July2022 ID_75251.png / V - Attached On 2022-07-03 19:03:54 UTC - Size: 34.57 KB - 110 views |
| [2022-07-04 14:26:23] |
| User_ML - Posts: 17 |
|

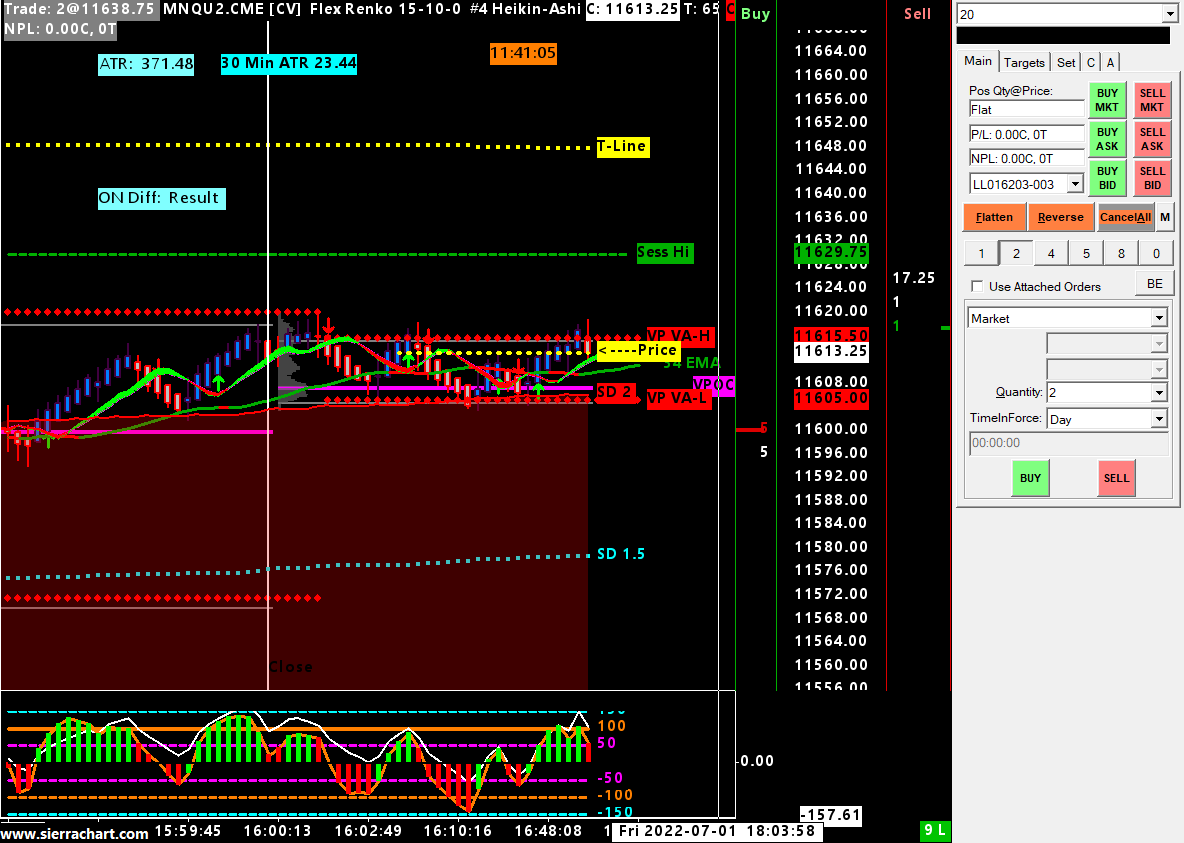

Does not work for me??? https://www.sierrachart.com/image.php?Image=1656943948972.png Notice line on chart shows value but results/Diff show 0.00?on sub graph?? |
| [2022-07-04 14:27:25] |
| User_ML - Posts: 17 |
|
Got it working, Thanks to all. Had to use a time chart 18:00:00 to 09:29:59 |
| [2022-07-04 15:26:44] |
| |
|
Let us know if there any further questions.
