Color Session TPO and Number Bars with candle
View Count: 973
| [2022-04-21 22:01:41] |
| User447431 - Posts: 29 |
|

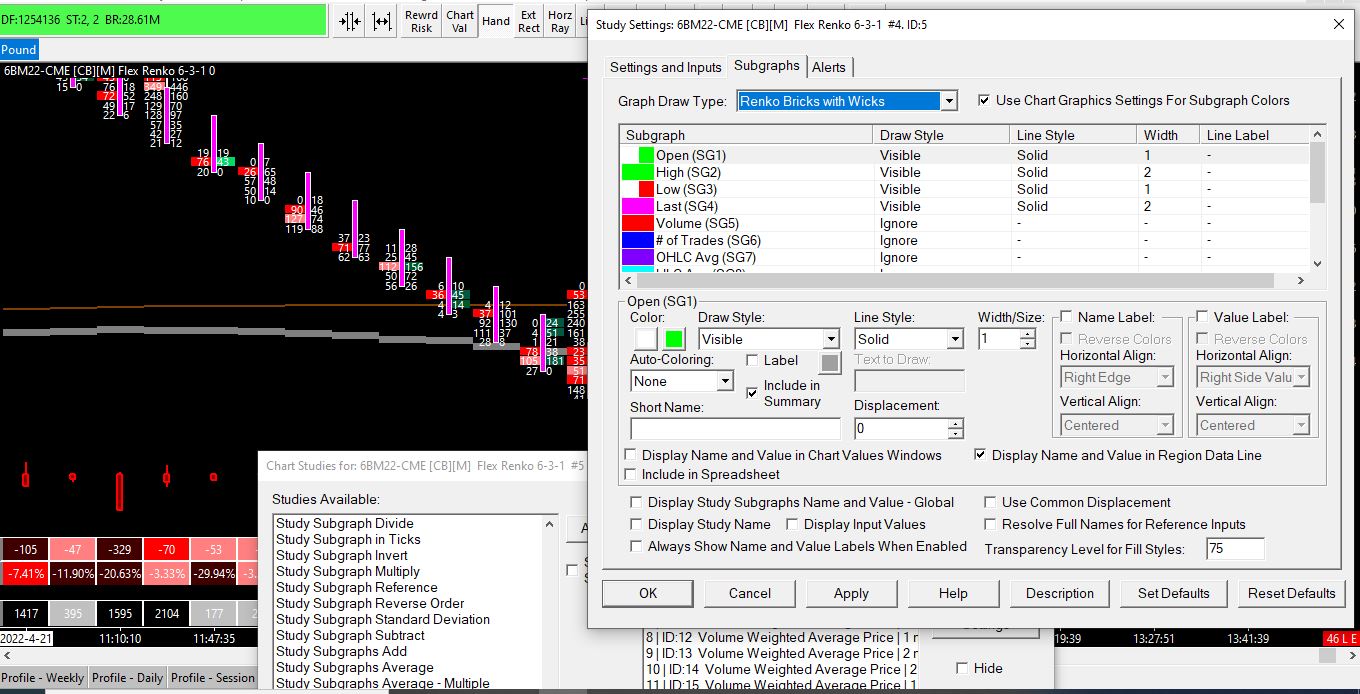

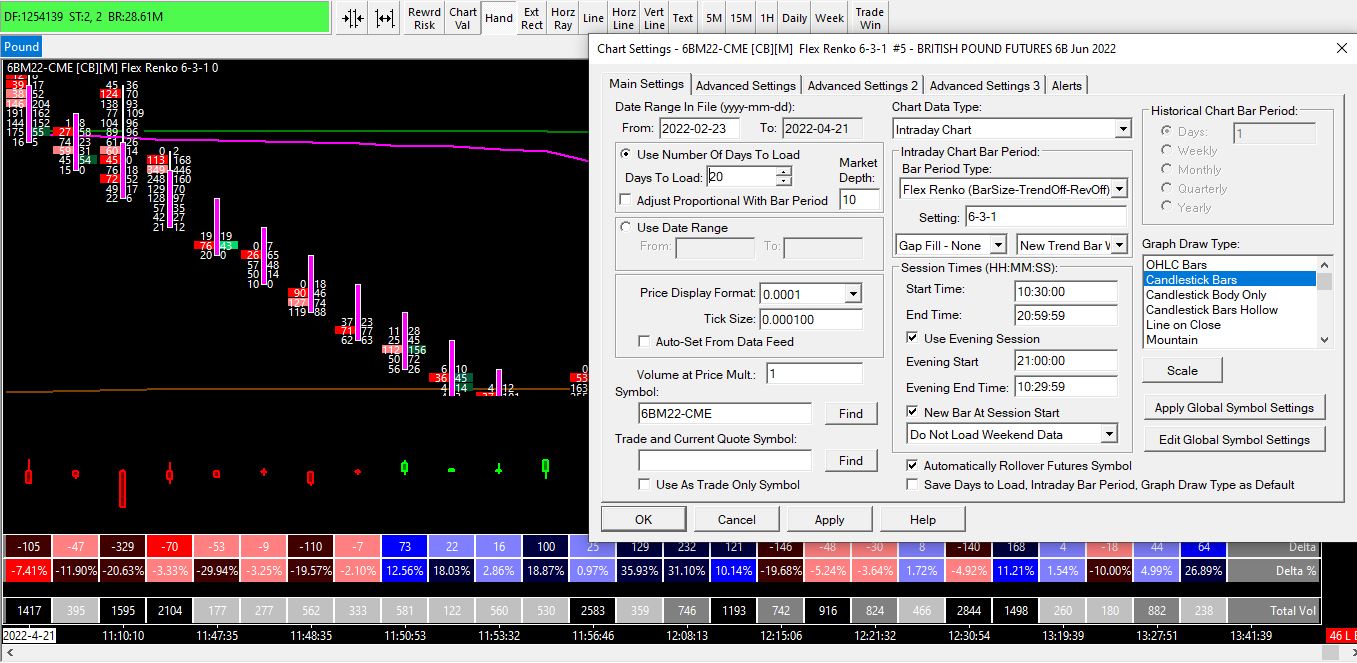

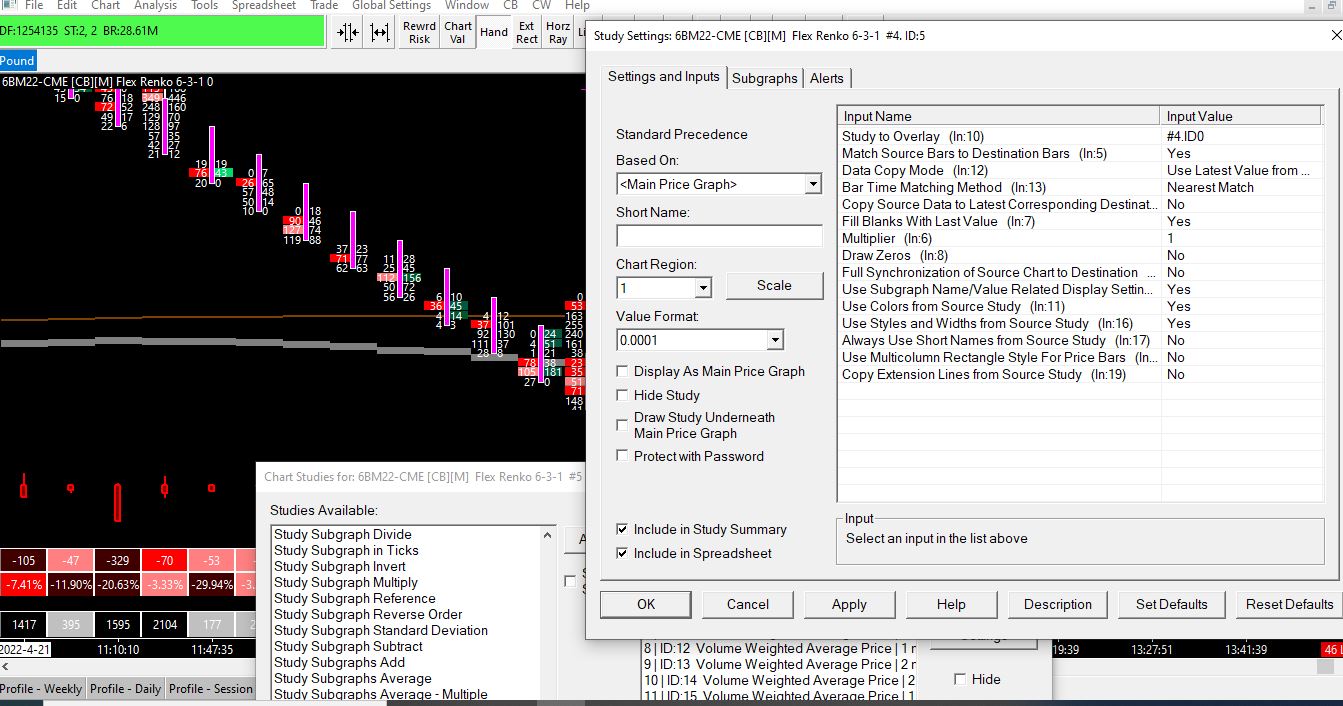

Hi, i have the following questions: 1 - Im using a number bar study on flex renko chart and would like to use the candle inside the number bars study. For that im using the study called "Study Price/Overlay"... this study drew the candles but the candles were not correct..... what should I do? 3x picture attached 2 - Im using a TPO chart with 3x TPO each day (asia-london-ny).. would like to use a different color for each session, thats possible? 3 - When using a TPO chart it seems that I cannot increase/decrease the vertical size of the chart (clicking the mouse on the price bar and moving the mouse up and down), theres a way to fix this? 4 - When using the weekly TPO i can only see the profiles from 2 months back.. I would like to have more data, what should I do? chart settings => use number days to load is at 720 atm Date Time Of Last Edit: 2022-04-21 22:13:10
|
01.JPG| [2022-04-22 14:01:47] |
| John - SC Support - Posts: 37808 |
|
1) There is too much going on for us to figure out from the images. Please attach the chartbook with those charts in it so we can take a look at how you have it setup. Refer to the following for how to attach a file: https://www.sierrachart.com/index.php?page=PostingInformation.php#AttachFile 2) You can not get different colors for the different sessions. The only ability for different colors is for day versus evening session when you have the evening session separate. Refer to the following: Time Price Opportunity (TPO) Profile Charts: TPO Letter/Block Colors 3) This is not TPO related, so there is something else going on. Make sure the scale is set to Interactive Scale Range and that the chart is not set to display as Logarithmic. Refer to the following: Chart Scale and Scale Adjusting: Interactive Scale Range - Expand/Compress Scale Chart Menu: Logarithmic Scale (Chart menu) 4) The TPOs are only going to show for the data that in the underlying chart. So make sure you have all the data going back to where you want. In particular, make sure you have a Continuous Futures contract if this is a Futures instrument. Refer to the following for more information on loading more historical intraday data: Historical Intraday Data (Missing Data / Download Errors / Viewing More Data): Downloading/Viewing More Historical Intraday Data For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-04-23 03:07:06] |
| User447431 - Posts: 29 |
|
1 - ok chartbook attached... the chart/tab that is displaying the candle incorrect is named as "Footprint-Renko" 2, 3 and 4 - okay thanks |
Attachment Deleted. Private File |
| [2022-04-24 16:49:14] |
| User447431 - Posts: 29 |
|

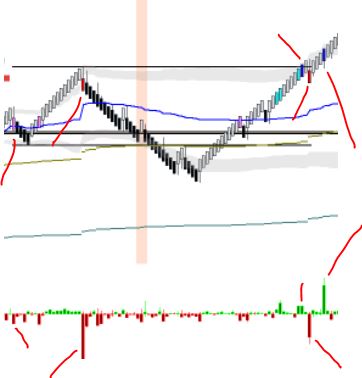

another question.. i would like to know how can I color the candles (make them red/blue inteasted of white/grey) if theres a high delta volume amount... like in the picture attached thanks |
| [2022-04-25 15:05:09] |
| John - SC Support - Posts: 37808 |
|
With regards to the Numbers Bars, we do not know exactly what the difference is, but there is something different in the Chart Settings between the two charts that you are using. The easy solution is to not overlay a different chart. You can use the Study/Price Overlay and overlay the Main Price Chart for the same chart that has the Numbers Bars. You will then get the bars as you have them defined for that chart displayed in the Numbers Bars. We tried this and we got the bars matching up correctly. As to coloring the bars based on a condition, you would need to use the Color Bar Based on Alert Condition study. Refer to the following: Color Bar Based on Alert Condition For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
