#include "sierrachart.h"

SCDLLName("PSAR_MA")

SCSFExport scsf_PSAR(SCStudyInterfaceRef sc)
{
  // SCSubgraphRef Subgraph_Parabolic = sc.Subgraph[0];
  SCSubgraphRef RL10_Parabolic = sc.Subgraph[1];
  SCSubgraphRef RL_10 = sc.Subgraph[2];

  SCInputRef Input_InputDataHigh = sc.Input[0];
  SCInputRef Input_InputDataLow = sc.Input[1];

  SCInputRef Input_StartAccelerationFactor = sc.Input[2];
  SCInputRef Input_AccelerationIncrement = sc.Input[3];
  SCInputRef Input_MaxAccelerationFactor = sc.Input[4];
  SCInputRef Input_AdjustForGap = sc.Input[5];

  SCInputRef RL_10Period = sc.Input[6];

  if (sc.SetDefaults)
  {
    // Set the sub-graph configuration and defaults

    sc.GraphName = "PSAR";

    sc.StudyDescription = "Parabolic Stop and Reverse applied to a MA not price";
    sc.DrawZeros = false;
    sc.GraphRegion = 0;
    sc.ValueFormat = VALUEFORMAT_INHERITED;

    sc.AutoLoop = 1;
/*
    Subgraph_Parabolic.Name = "Parabolic";
    Subgraph_Parabolic.DrawStyle = DRAWSTYLE_POINT;
    Subgraph_Parabolic.LineWidth = 3;
    Subgraph_Parabolic.PrimaryColor = RGB(0,0,0);
*/
    RL10_Parabolic.Name = "RL10 Parabolic";
    RL10_Parabolic.DrawStyle = DRAWSTYLE_POINT;
    RL10_Parabolic.LineWidth = 3;
    RL10_Parabolic.PrimaryColor = RGB(0,0,255);

    Input_InputDataHigh.Name = "Input Data High";
    Input_InputDataHigh.SetInputDataIndex(SC_HIGH);

    Input_InputDataLow.Name = "Input Data Low";
    Input_InputDataLow.SetInputDataIndex(SC_LOW);

    Input_StartAccelerationFactor.Name = "Start Acceleration Factor";
    Input_StartAccelerationFactor.SetFloat(0.02f);
    Input_StartAccelerationFactor.SetFloatLimits(0.000001f,(float)MAX_STUDY_LENGTH);

    Input_AccelerationIncrement.Name = "Acceleration Increment";
    Input_AccelerationIncrement.SetFloat(0.12f);
    Input_AccelerationIncrement.SetFloatLimits(0.00001f, 100.0f);

    Input_MaxAccelerationFactor.Name = "Max Acceleration Factor";
    Input_MaxAccelerationFactor.SetFloat(0.2f);
    Input_MaxAccelerationFactor.SetFloatLimits(0.000001f,(float)MAX_STUDY_LENGTH);

    Input_AdjustForGap.Name = "Adjust for Gap";
    Input_AdjustForGap.SetYesNo(0); // No

    RL_10Period.Name = "RL10 Period";
    RL_10Period.SetInt(10);

    return;
  }


  // Calculate RL MA

  sc.DataStartIndex = 1 ;

   sc.MovingAverage(
      sc.BaseDataIn[SC_LAST],
      RL_10,
      MOVAVGTYPE_LINEARREGRESSION,
      RL_10Period.GetInt());

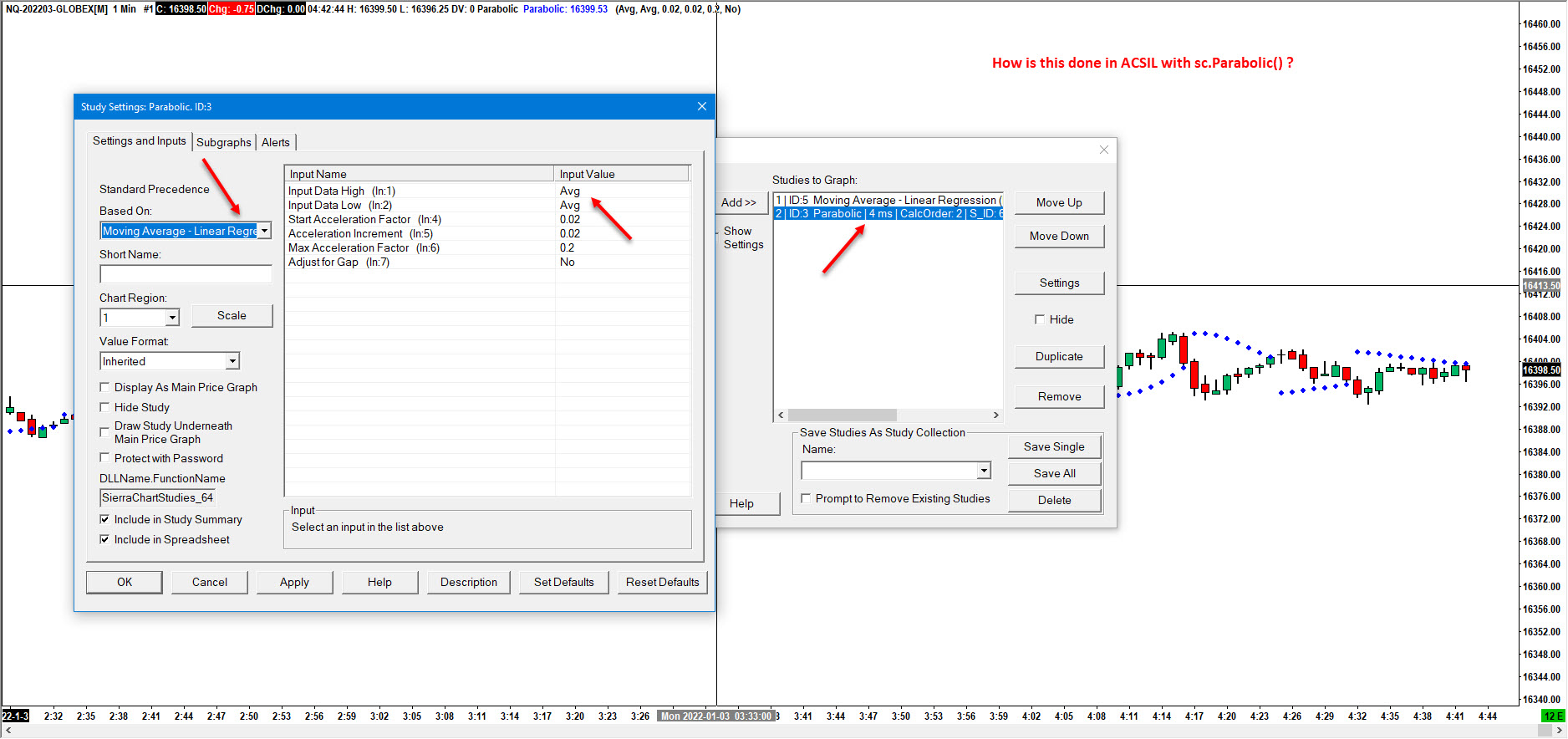

///// Parabolic applied to a moving average as per Chart Setup.JPG

    sc.Parabolic(
      RL_10,
      sc.BaseDateTimeIn,
      RL10_Parabolic,
      sc.Index,
      Input_StartAccelerationFactor.GetFloat(),
      Input_AccelerationIncrement.GetFloat(),
      Input_MaxAccelerationFactor.GetFloat(),
      Input_AdjustForGap.GetYesNo(),
      Input_InputDataHigh.GetInputDataIndex(),
      Input_InputDataLow.GetInputDataIndex()
    );


}

*/////////////////////////// Standard Sierra Chart Parabolic code as an example
    sc.Parabolic(
      sc.BaseDataIn,
      sc.BaseDateTimeIn,
      Subgraph_Parabolic,
      sc.Index,
      Input_StartAccelerationFactor.GetFloat(),
      Input_AccelerationIncrement.GetFloat(),
      Input_MaxAccelerationFactor.GetFloat(),
      Input_AdjustForGap.GetYesNo(),
      Input_InputDataHigh.GetInputDataIndex(),
      Input_InputDataLow.GetInputDataIndex()
    );
/*/////////////////////////// Standard Sierra Chart Parabolic code as an example
