Study/Price Overlay
View Count: 703
| [2021-11-16 20:52:55] |
| User841161 - Posts: 248 |
|

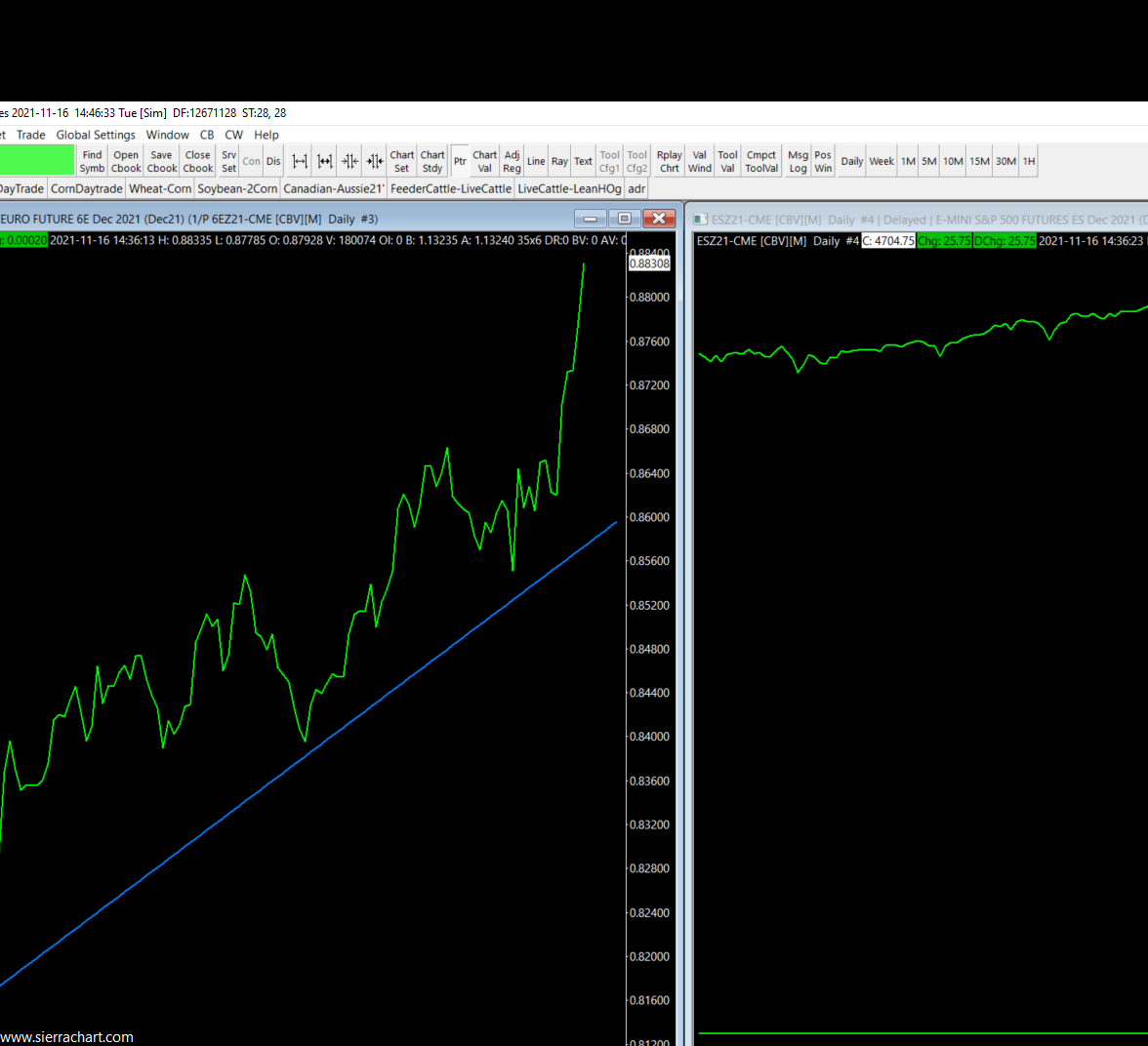

I was trying to chart a study(1 Divided By Price Study)from chart#3 onto chart #4 buy using study/price overlay. But chart is displaying overlay on price correctly. Is there a setting that is incorrrect? http://www.sierrachart.com/image.php?Image=1637095596961.png https://www.sierrachart.com/Download.php?Folder=SupportBoard&download=57039 |

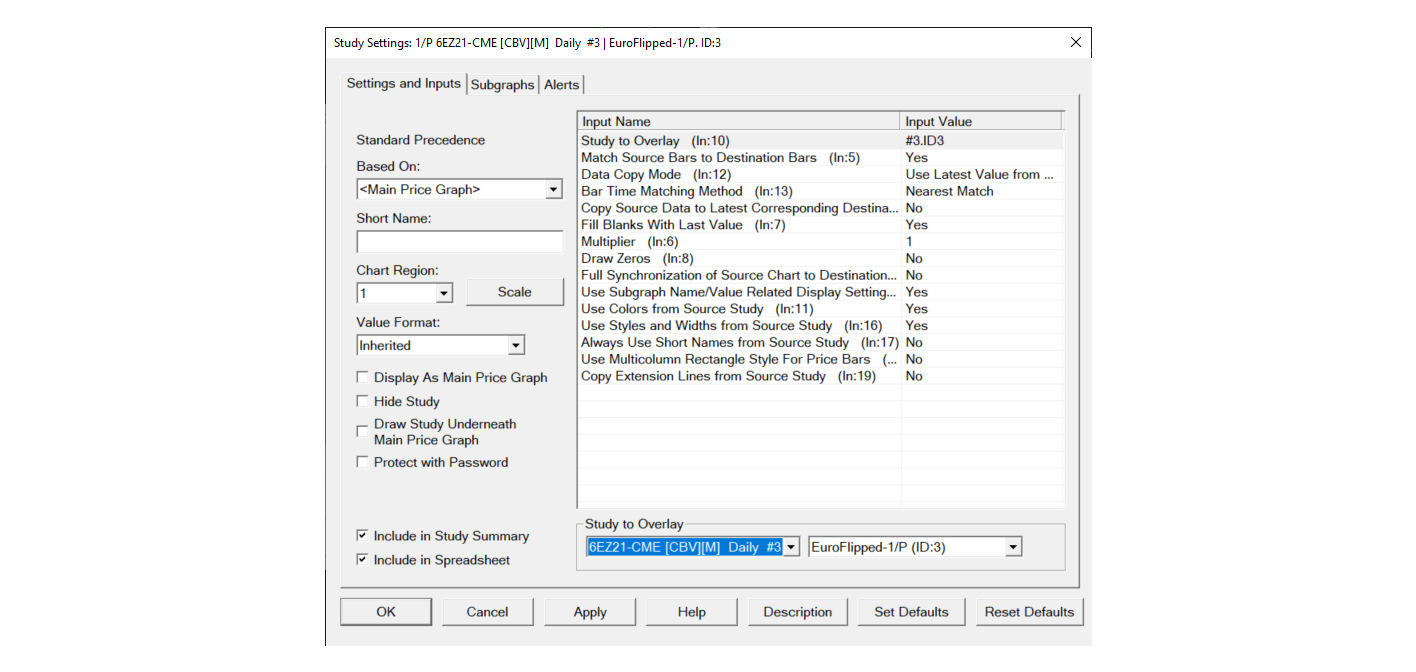

Attachment Deleted.  StudySettings.11-16.png / V - Attached On 2021-11-16 20:51:15 UTC - Size: 178.54 KB - 173 views |
| [2021-11-16 21:47:04] |
| John - SC Support - Posts: 38341 |
|
What you are seeing is just a scaling issue. You are trying to display two different sets of data in the same range - the ES and the 1/6E. The ES prices are around 4700 whereas the 1/6E is around 0.883. The easiest solution is to make the Study/Price Overlay an Independent scale, and you can also use the left side scale to view the values. Refer to the following: Chart Scale and Scale Adjusting: Independent (Scale Range) And refer to the following for the Left Side Scale: Chart Settings: Use Left Side Scale (Chart >> Chart Settings >> Scale menu) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
