How to Post a Message for Support

Data Overlap

View Count: 581

[2021-11-13 13:43:45] #1 [Go To First Post]
SpearChucker - Posts: 104

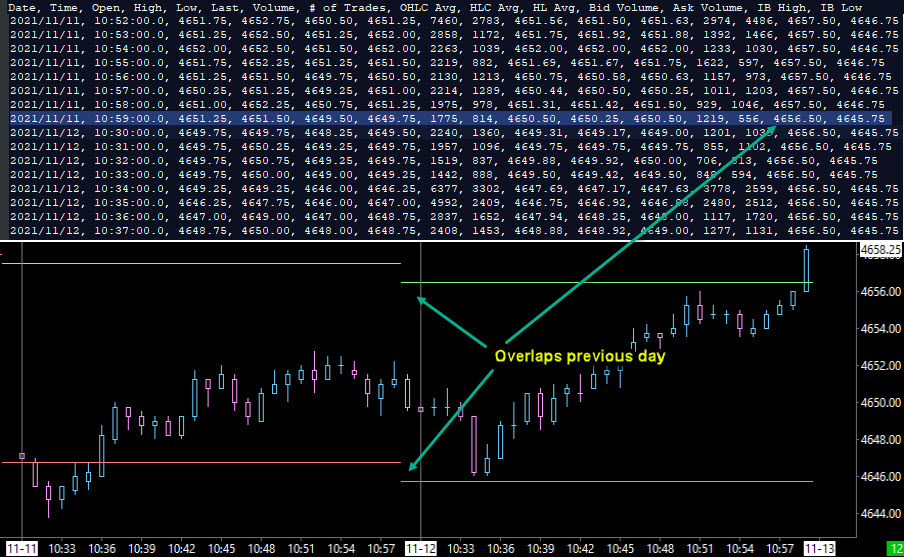

Attempting to do a study of 30 min. periods after the Initial Balance (09:30-10:30) in ES. I have a 1 min. chart with a start and end time of 10:30 - 10:59:59. I have another 1 min. chart with start and end time of 09:30:00 - 17:59:59 (RTH). I have the Initial Balance study on the full session chart and use Study/Price Overlay to display the IB on the 30 min. period chart. The data in the attached jpg shows the data from the current day overlapping the previous day by one bar. For example on 11/11 at the time of 10:59:00 the IBHigh and IBLow is from the next day (11/12). This doesn't seem quite right to me.


IB Overlap.jpg / V - Attached On 2021-11-13 13:43:28 UTC - Size: 303.88 KB - 141 views

[2021-11-14 15:39:51] #2 [Go To First Post]
John - SC Support - Posts: 38341
We would need to get your chart and take a look at this. Please attach your Chartbook that contains those charts (or copy the chartbook to a new name and delete any unnecessary charts). Follow these instructions to attach a file: https://www.sierrachart.com/index.php?page=PostingInformation.php#AttachFile For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-11-14 18:55:43] #3 [Go To First Post]
SpearChucker - Posts: 104
Here it is.


Data_Overlap.Cht - Attached On 2021-11-14 18:55:33 UTC - Size: 6.07 KB - 225 views

[2021-11-14 19:12:34] #4 [Go To First Post]
John - SC Support - Posts: 38341
You need to set the Input on the Study/Price Overlay for Data Copy Mode to Use Earliest Value from Corresponding Timeframe in Source Chart. Refer to the information for this Input here: Study/Price Overlay Study: Data Copy Mode For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2021-11-14 19:13:40
