find cumulative bid and ask size
View Count: 848
| [2021-09-02 10:08:09] |
| User278398 - Posts: 291 |
|
Hello, how can i see the cumulative size bid deep of market(all lmt bid) and cumulative size ask deep of market (all lmt ask) |
 orgolan1.jpg / V - Attached On 2021-09-02 10:07:17 UTC - Size: 38.92 KB - 220 views |
| [2021-09-02 15:17:58] |
| John - SC Support - Posts: 38292 |
|
There are a few different ways to get this data, but in terms of easy display, we have put together a Study Collection for you that does this. Refer to the following for how to use the Study Collection: Study Collections: Using a Study Collection Provided by Sierra Chart Support For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
 BidAndAskSumDepth.StdyCollct - Attached On 2021-09-02 15:17:55 UTC - Size: 62.52 KB - 341 views |
| [2021-09-05 09:44:21] |
| User278398 - Posts: 291 |
|

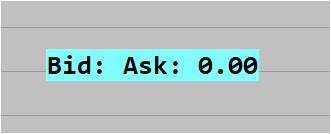

can you fix it that i can move it? and i can change the text size? |
Attachment Deleted. Screenshot 2021-09-05 124222.jpg / V - Attached On 2021-09-05 09:44:12 UTC - Size: 8.86 KB - 228 views |
| [2021-09-06 13:44:26] |
| John - SC Support - Posts: 38292 |
|
To move the position and change the font size you need to go into the settings for each of the Text Display for Study studies. To move the position, change the position settings at the top of the Inputs. To change the font size, you need to go to the Subgraph settings and change the Width/Size setting for the subgraph. Refer to the following: Chart Studies: Subgraphs Tab >> Line Width For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-09-07 07:24:07] |
| User278398 - Posts: 291 |
|

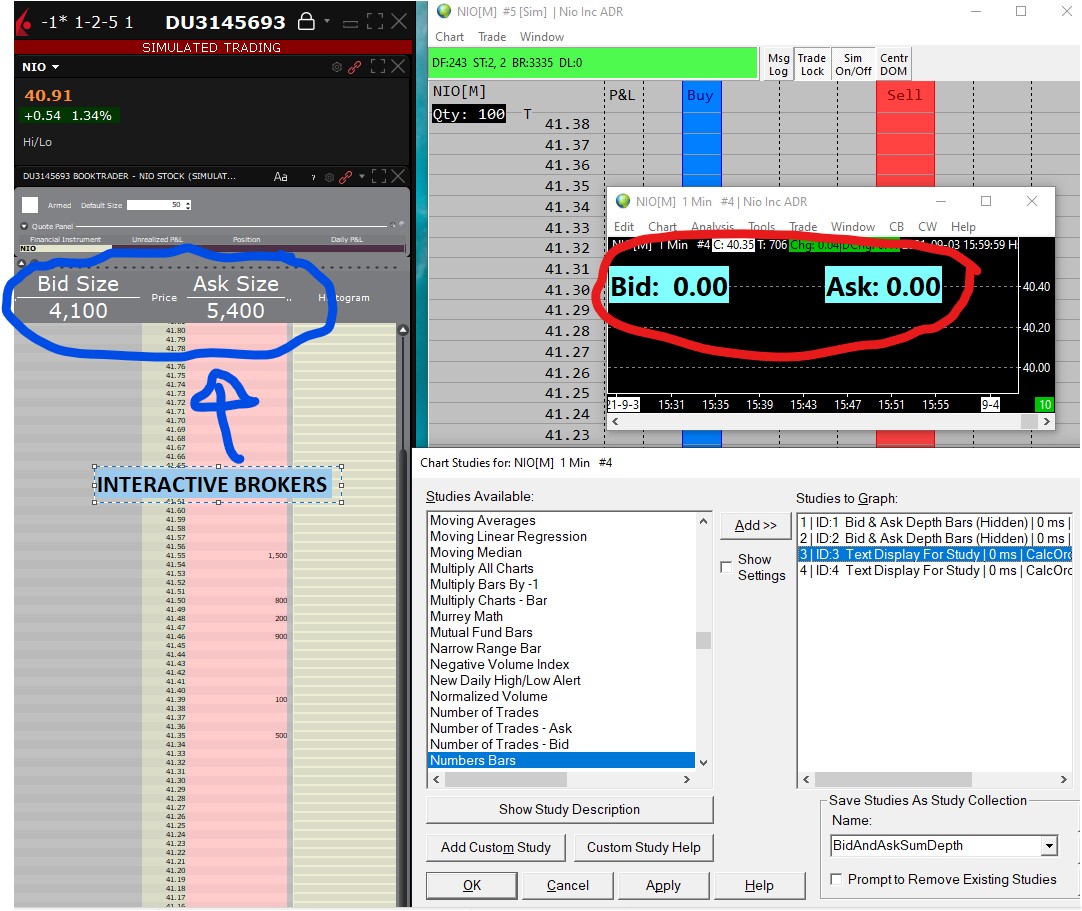

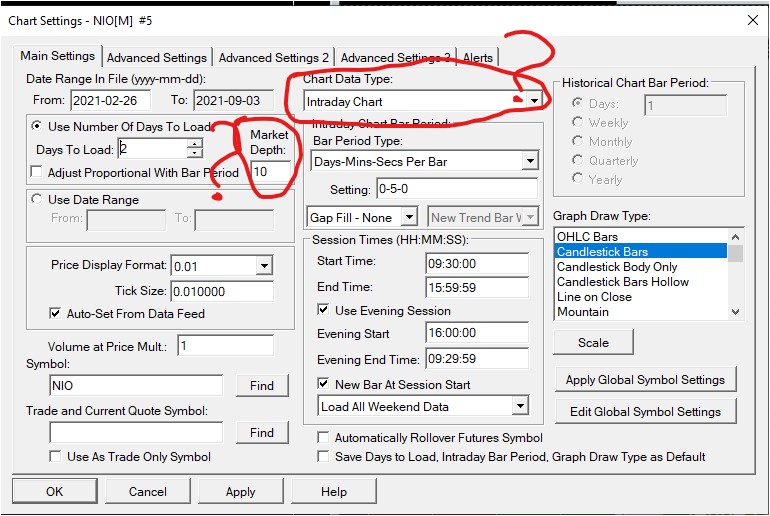

do i need to change settings in chart settings to get all the data i need for: dom? bid size accumulation and ask size accumulation ? heat map? which settings i need to change in the settings chart? i attached pic,and beside the pic i uploaded, there is any thing more need to change? |
| Screenshot 2021-09-07 102130.jpg / V - Attached On 2021-09-07 07:22:56 UTC - Size: 134.69 KB - 193 views Screenshot 2021-09-07 102036.jpg / V - Attached On 2021-09-07 07:23:07 UTC - Size: 129.79 KB - 175 views |
| [2021-09-07 08:32:05] |
| User278398 - Posts: 291 |
|
i applied what you send me but it didnt work/ dont show the ask/bid accumulation LIKE INTERACTIVE BROKERS. WHAT I NEED TO DO TO SEE IT as proper? There are a few different ways to get this data, but in terms of easy display, we have put together a Study Collection for you that does this. Refer to the following for how to use the Study Collection: Study Collections: Using a Study Collection Provided by Sierra Chart Support |
| Screenshot 2021-09-07 112931.jpg / V - Attached On 2021-09-07 08:31:11 UTC - Size: 249.16 KB - 189 views |
| [2021-09-08 14:24:59] |
| John - SC Support - Posts: 38292 |
|
We are not seeing the market depth data in the DOM in the image that you show. The first thing to check is that you are getting the market depth data in your DOM. Refer to the following for troubleshooting tips regarding the Market Depth data: File Menu: Not Receiving the Full Number of Market Depth Levels For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-09-28 18:18:14] |
| User278398 - Posts: 291 |
|

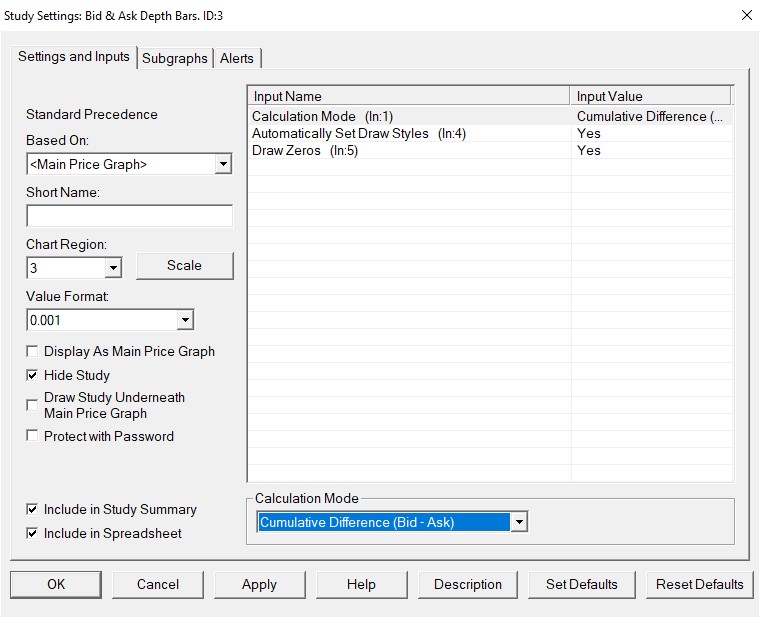

hello, reference to [2021-09-02 15:17:58] message u sent me. 1. in this study i found (file of pic is attached) only cumulative difference (bid-ask). there is cumulative of bid quantities and cumulative of ask quantities study? there is other ways beside study ? 2. i want to do more calculation on the parmeters ( for example: ((cumulative bid * 10 + 543)/(cumulative ask -9.3 )) ) and then to see that calculation by study, "text display for study" or by study, "study subgraph above/below bar as text"... what is the option i have to do that ? many thanks. Date Time Of Last Edit: 2021-09-28 18:29:27
|
| [2021-09-28 18:27:19] |
| John - SC Support - Posts: 38292 |
|
You will find our complete list of studies at the following link. Selecting a study will take you to the description page for that study: Technical Studies Reference You will need to look through the list to find what you may be looking for. There is no other way to get special information into a chart other than through a study. You can program a custom study using our ACSIL interface. Refer to the information starting here: Advanced Custom Study Interface and Language (ACSIL): Introduction For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
