Mbo Presentation
View Count: 704
| [2021-08-04 02:36:15] |
| User529087 - Posts: 25 |
|

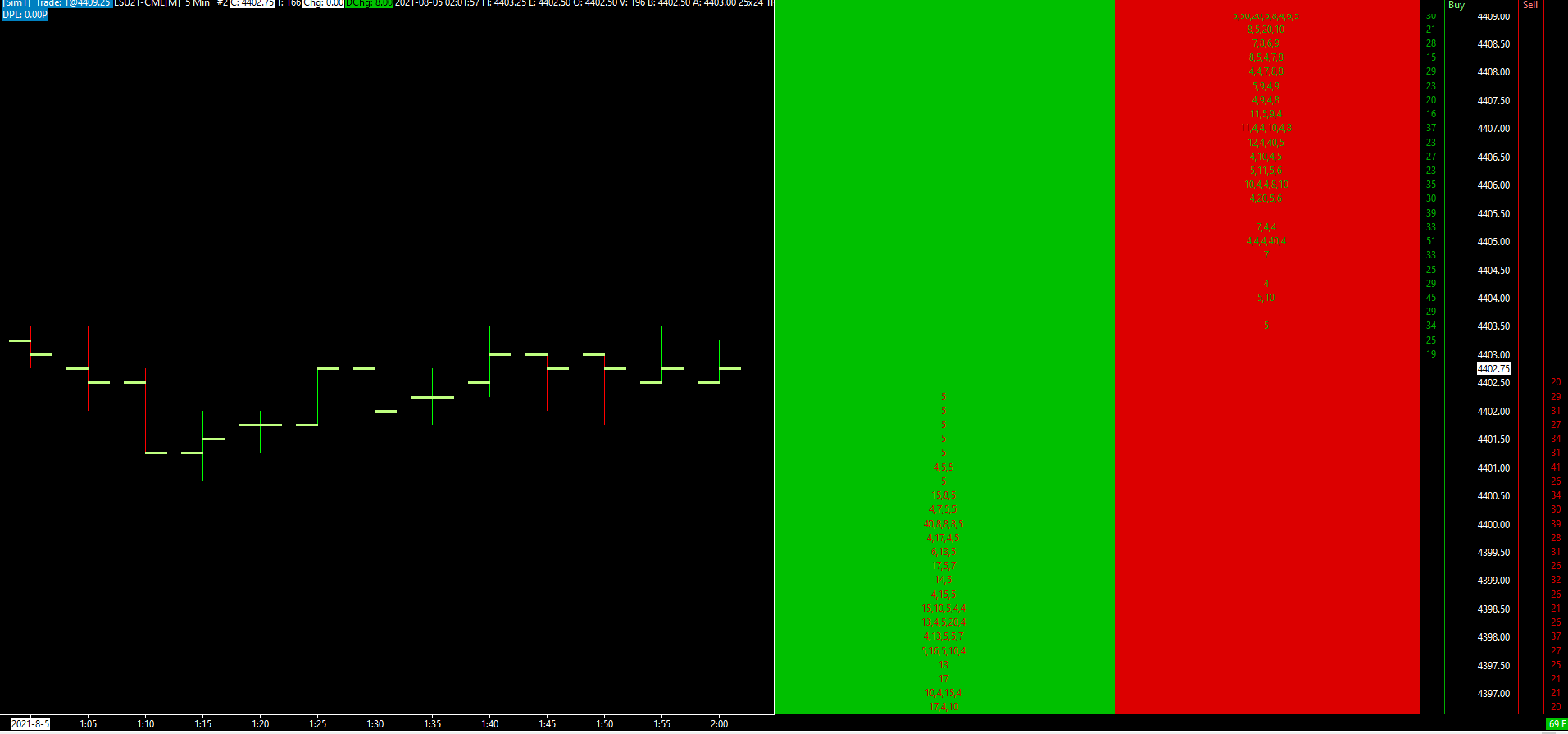

Hi I followed the guideline to put the MBO on my DOM. And have something different than in the example, how can i get it the same with a clear background, and presentation. https://www.sierrachart.com/Download.php?Folder=TicketingSystem&download=53410 https://www.sierrachart.com/Download.php?Folder=TicketingSystem&download=53411 Date Time Of Last Edit: 2021-08-04 04:43:03
|
| [2021-08-04 05:34:17] |
| Sierra_Chart Engineering - Posts: 18594 |
|
To widen the market by order data columns, refer to: Global Trade Settings Windows: Chart/Trade DOM Column Widths and Headers (Trade >> Customize Chart/Trade DOM Columns) To prevent overlapping numbers you need to decrease the scale range. Refer to: The Chart DOM Scale Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-08-05 02:11:09] |
| User529087 - Posts: 25 |
|
Thank you so I did that, now: 1. How do I remove the red, green background colors for the MBO? 2. How do I change the colors of the characters? 3. See attachment: On the 4400 level I have the following on the MBO BID (green color).See picture 40,8,8,8,5. Is this 5 orders? Is the first one in the queue of 40 lots? or is the 5 lots order? I thought you only displayed order of 10 lots or above? why I see less? Is there a filter or setting for the MBO itself? And finally If i want to have this information on a regular dedicated dom without any charts to it, how would I proceed? Thank you very much for the support your offering |
| Attachment Deleted. |
mbo3.PNG| [2021-08-05 14:09:59] |
| John - SC Support - Posts: 38259 |
|
1/2. Refer to the 4 settings starting here: Customizing Fonts, Colors, Line Styles, and Widths for Chart Trading, Chart DOM, and Trade DOM: Chart DOM Bid Market Orders Background 3. 40,8,8,8,5.
Yes, that is 5 orders.Is this 5 orders? Is the first one in the queue of 40 lots? or is the 5 lots order?
The order of the data is defined by how you have the column aligned. Refer to the information here:Market By Order Data: Queue Ordering and Alignment I thought you only displayed order of 10 lots or above?
We need to update the documentation, but the number has been lowered to 4.Is there a filter or setting for the MBO itself?
You can set the level below which you will not see the MBO data. This is done on a per symbol basis and is controlled in the Symbol Settings. Refer to the following:Market By Order Data: Adjusting Minimum Quantity to Display for Market by Order Data And finally If i want to have this information on a regular dedicated dom without any charts to it, how would I proceed?
Just follow the instructions but for the Trade DOM. Refer to the following:Market By Order Data: Step-by-Step Instructions For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
