ADX clone chart
View Count: 1007
| [2021-05-24 02:50:09] |
| User628616 - Posts: 132 |
|

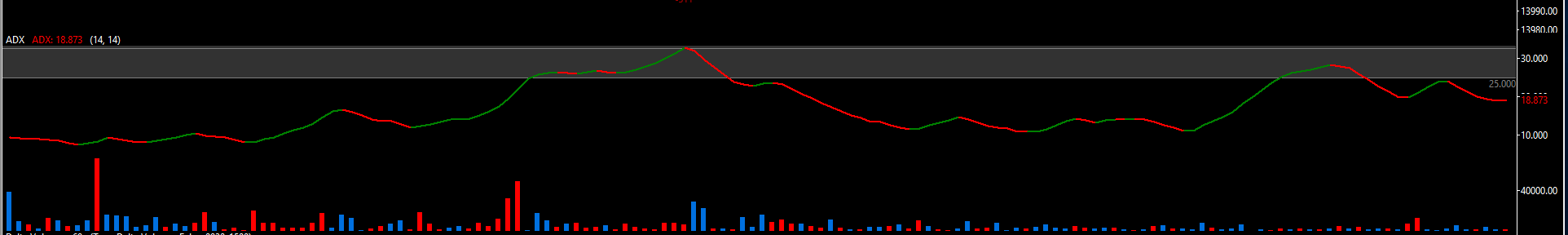

How to get ADX to have line change from green to red, and have the red section background
|
 2fde4387-5048-4fba-bdd6-2fd9129b9ec2.png / V - Attached On 2021-05-24 02:49:04 UTC - Size: 116.56 KB - 262 views |
| [2021-05-24 06:07:49] |
| |
|
The coloring is very easy to do. This is just coloring based on slope: Chart Studies: Based on Slope For the background coloring, use this study: Color Background Based on Alert Condition Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-06-18 17:04:12] |
| User628616 - Posts: 132 |
|
I'm trying to place the ADX Study on top/combine of the Study just beneath it. How so?
|
| [2021-06-18 19:29:28] |
| John - SC Support - Posts: 38222 |
|
We assume you are asking how to put the two studies in the same region and have them show up at about the same levels. To do this, you would need to have one study set to a scale of Automatic and the other would have a scale of Independent. Refer to the information here: Chart Scale and Scale Adjusting: Maintaining Same Scale for Multiple Graphs in Chart Region If you are looking for something else, please give us some additional information so we can help you further. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-06-21 14:42:35] |
| User628616 - Posts: 132 |
|
I was able to combined into same region, how do I get the numbers on the right to display the ADX number range instead of the other indicators number range?
|
| [2021-06-21 15:24:15] |
| User628616 - Posts: 132 |
|

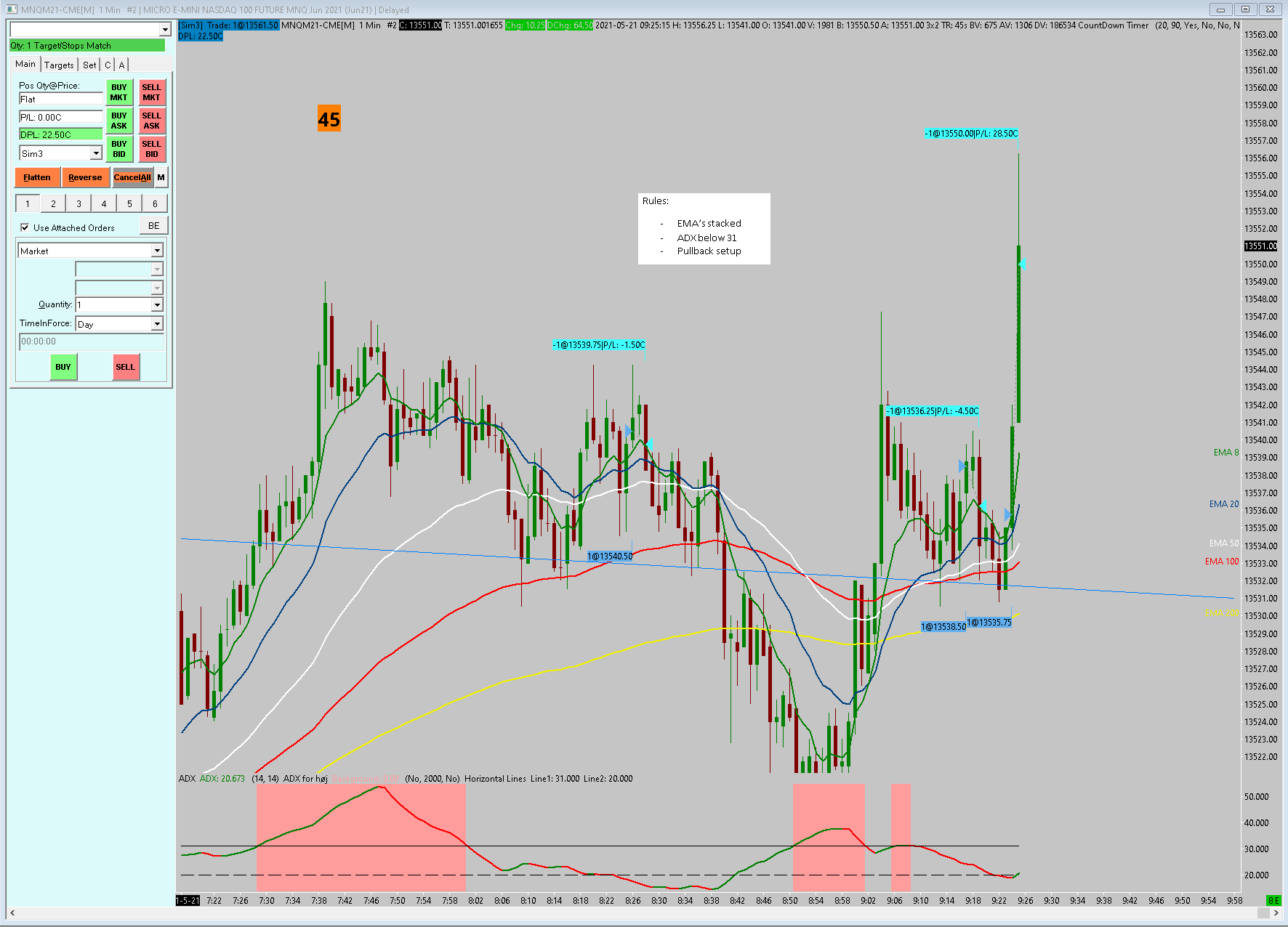

File attached
|
| [2021-06-21 18:05:23] |
| John - SC Support - Posts: 38222 |
|
The numbers on the right are going to come from the first study found in the list of studies that are in that region. Therefore, you would need to move the ADX study up higher in the list if you want to display those values in the right-side scale. Or, ensure that only the ADX study is set to "Automatic" for its scaling, and the others in that region are set to "Independent". Refer to the following: Chart Scale and Scale Adjusting: Maintaining Same Scale for Multiple Graphs in Chart Region For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
