Unfinished auction volume on the Y - axis
View Count: 2616
| [2021-04-08 21:38:12] |
| JR2R - Posts: 20 |
|
Hi, Is there a way to outline/highlight unfinished auctions on the Y -axis (Displaying how many lots were at that price level). This should also enable a user to set a minimum threshold for how many lots that signify a highlited display of the lots are at that price level. Many thanks |
| [2021-04-08 22:04:05] |
| John - SC Support - Posts: 38150 |
|
In general, you are looking for the Numbers Bars study. Refer to the following: Numbers Bars And in terms of the Unfinished Auction, refer to this Input and the one two below it: Numbers Bars: Highlight Nonzero Bid&Ask Volume at High/Low For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-04-09 06:30:24] |
| Ackin - Posts: 1865 |
|
This should also enable a user to set a minimum threshold for how many lots that signify a highlited display of the lots are at that price level.
Hi, It's possible download it for free from our CZ/SK forum. Study: Number Bars: Unfinished auction contact link: https://www.sierrachart.com/UserControlPanel.php?page=StudyStore&SCDLLName=zyp_download_free |
| [2021-04-11 16:52:05] |
| JR2R - Posts: 20 |
|
Hi, I checked the numebr bars, and cannot find what I'm looking for. I want to be able to display how many lots are at finished auctions(0 bis at the high or 0 asks at the low) before they are tested. The numebr bars only let me highlit the specific bars/ column. Please, I want my footprint chart to state how many lots are at that spefic price level on the Y- axis. |
| [2021-04-12 15:37:00] |
| John - SC Support - Posts: 38150 |
|
We are not sure exactly what you are missing, but to display both the Bid and Ask volumes set your Column # Numbers Bars Text to Bid Vol x Ask Vol. Refer to the following: Numbers Bars: Numbers Bars Text Types For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-04-12 17:09:10] |
| JR2R - Posts: 20 |
|

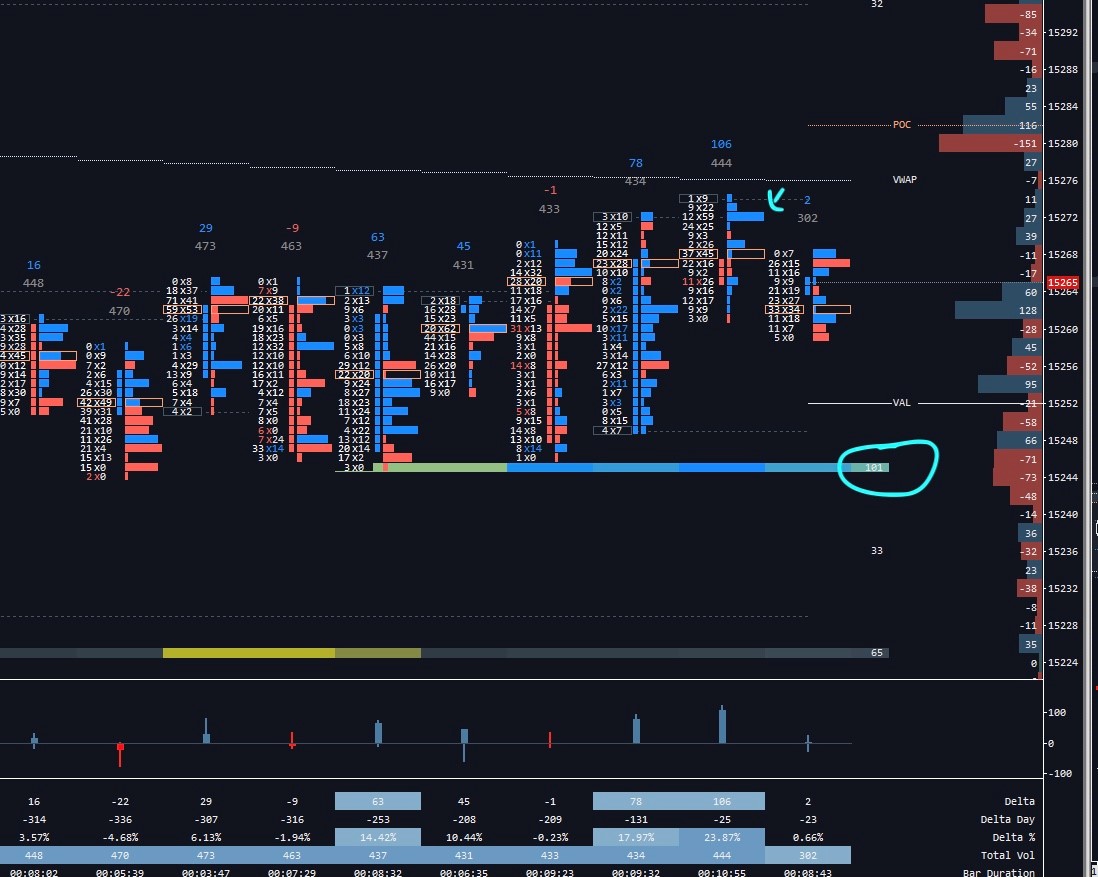

Hi, Attached is an image of what I am looking to re-create. Outlined with a blue circle there are 101 lots at the low, where there are 0 offers and 3 bids (unfinished auction). Is there a way to create this please, I have been looking at the number bars and can't seem to get that to show at the edge of the screen. So what setting do you recommend to mimick the image please? Date Time Of Last Edit: 2021-04-15 23:12:29
|
 lots at unfinished auction.jpg / V - Attached On 2021-04-12 17:05:57 UTC - Size: 164.82 KB - 732 views |
| [2021-04-12 19:40:48] |
| John - SC Support - Posts: 38150 |
|
Add the Numbers Bars study and set at least the following: - Column 1 Numbers Bars Text: Bid x Ask - Highlight Non-Zero Bid and Ask Volume at High/Low: Column 1 with Extension Line Until Future Intersection. Although we are confused why you highlighted a finished auction. The setting above will give you a line to the right at the Unfinished Auctions. To get the listing of the Market Depth at that level on the right side, you would need to use the Market Depth Historical Graph and set the following: Show Quantity Numbers: Only After Last Bar Depth Quantity Type to Display After Last Bar: Last Depth (unless you want Max Depth) You may also want to change the color of the Bid and Ask depth text. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-04-14 17:24:35] |
| JR2R - Posts: 20 |
|

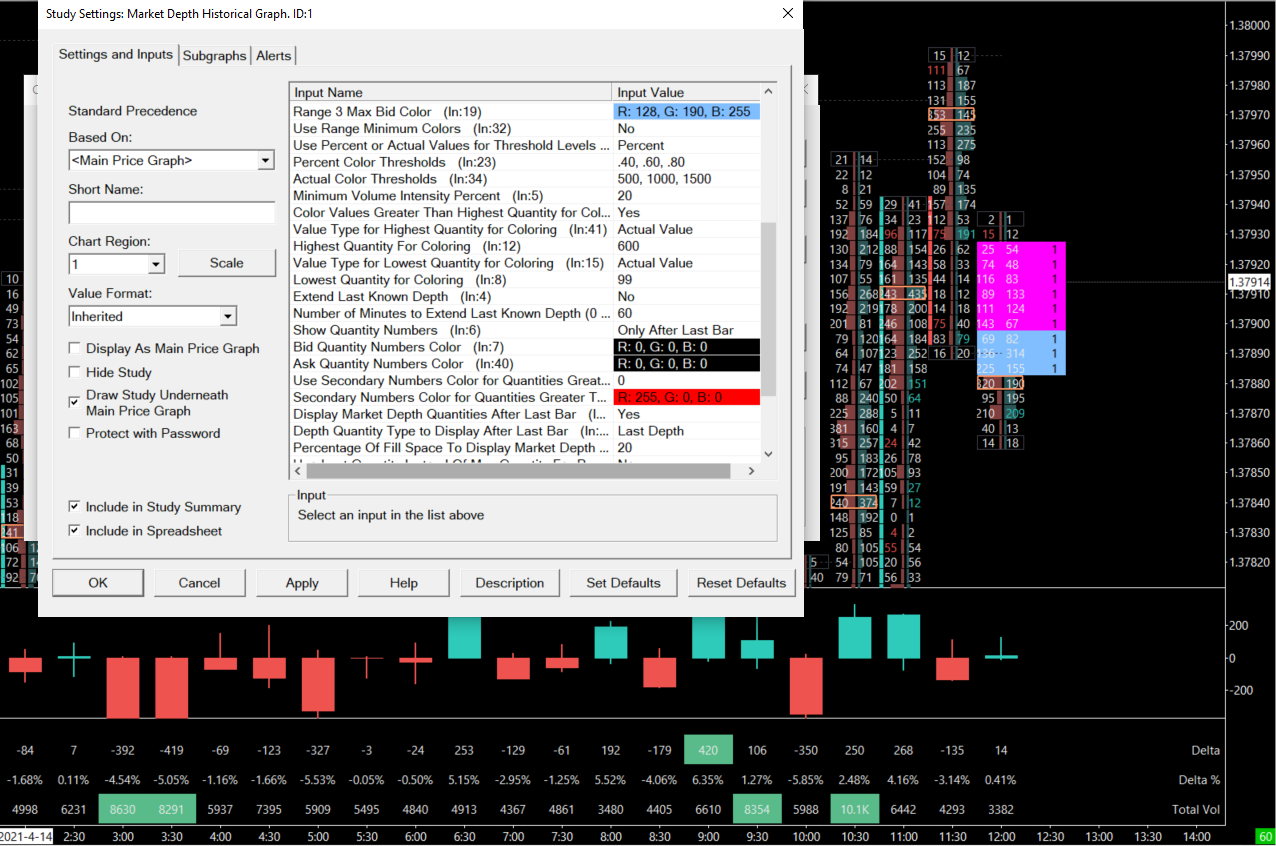

Hi for some reason, I don't think the data on the dom is loading properly. It keeps on showing the supply of orders as 1 regardless of the bid and offers being hit.
|
| DOM sierra settings.png / V - Attached On 2021-04-14 17:24:23 UTC - Size: 845.69 KB - 280 views |
| [2021-04-14 17:43:30] |
| John - SC Support - Posts: 38150 |
|
You would need to ask your data provider about the market depth data. You are not getting your data from us.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
