Order fills not shown in charts (data from Sierra, execution Interactive Brokers)
View Count: 861
| [2021-03-24 22:26:15] |
| WheresMoney - Posts: 62 |
|

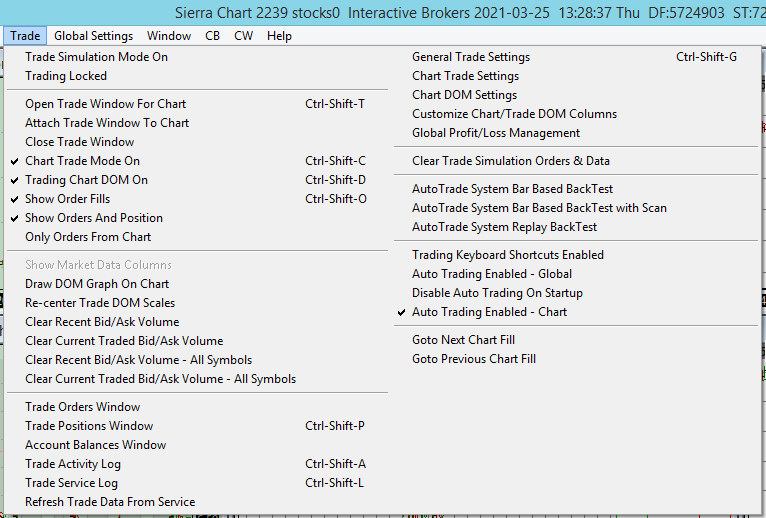

I have both Sierra data feeds (Denali and the other one; all required exchanges activated and paid). Charts are updated from this data feed and stocks/etfs are traded in IB. I have setup this instance of Sierra very recently. Version 2239 x64. I have a chart of UVXY setup, and trading from chart works. I sold 500 UVXY late in the day (3 orders: 200 + 200 + 100 at slightly different prices), and the orders were transmitted to TWS and executed without any problems. I just don't see the little triangle marks I am expecting to see in the charts where execution happened. I have "Chart Trade Mode On", "Trading Chart DOM On", "Show Order FIlls", "Show Orders And Position" all checked. I do see the order line when I place order from the chart, just that after execution, there is no order fill shown on the chart. Under Trade -> Trade Activity Log, the fills are there. This is all on live account, not sim. Am I missing some setting somewhere that would show the fills on the chart? |
| [2021-03-25 14:36:15] |
| |
|
This could be an issue with the symbol not matching between what is in the Trade Activity Log and the chart. For complete information, refer to: Chart Trading and the Chart DOM: Displaying Order Fills on the Chart Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2021-03-25 14:36:37
|
| [2021-03-25 16:31:28] |
| WheresMoney - Posts: 62 |
|

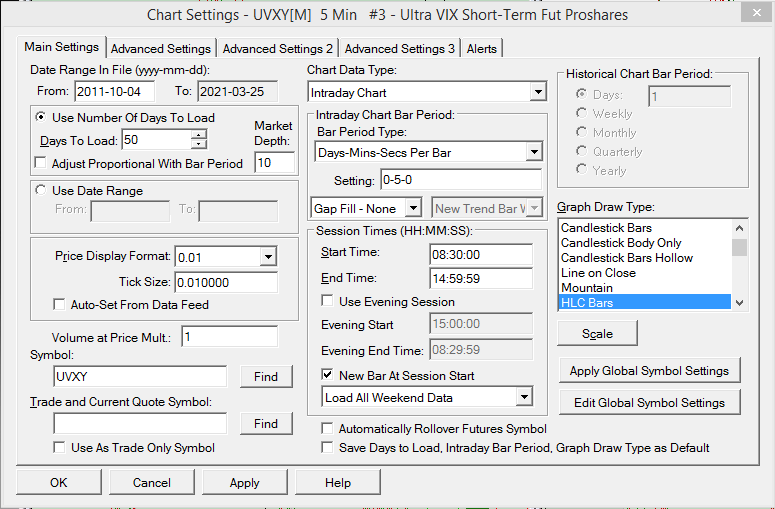

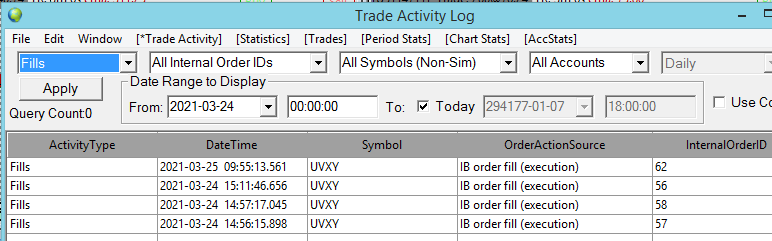

This one should be simple, as it's an ETF (so no expiry, exchange etc. etc. as part of symbol name). In chart, the window title bar shows UVXY[M] the [M] part I believe due to sierra feed. Symbol is set as UVXY, the "Trade and Current Quote Symbol" is set to blank In trade activity log, it is UVXY So as far as I can see, it matches. Some pics attached Date Time Of Last Edit: 2021-03-25 19:27:12
|

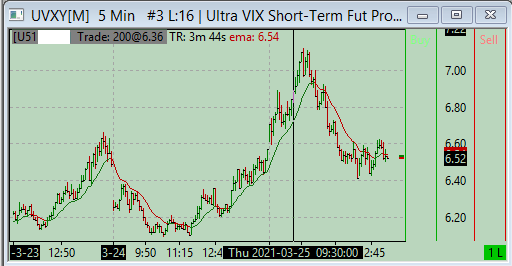

 chartnomarker.png / V - Attached On 2021-03-25 18:31:05 UTC - Size: 18.86 KB - 229 views settings.png / V - Attached On 2021-03-25 19:27:10 UTC - Size: 45.09 KB - 219 views |
| [2021-03-25 18:32:41] |
| WheresMoney - Posts: 62 |
|
One more pic
|
| [2021-04-04 00:28:44] |
| |
|
See if the Trade Account matches between the Trade Activity Log and what is set on the Trade Window on the chart.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
