[Programming Help] - How to change drawing order (above|below) of subgraphs in ACSIL study?
View Count: 704
| [2021-01-17 11:14:45] |
| User164131 - Posts: 19 |
|
Hello, I am trying to make my own study based on your examples. It has two subgraphs: 1. extension line of VPOC (as a line) 2. VPOC of the bar (as a dash) SCSubgraphRef Subgraph_ExtensionLines = sc.Subgraph[0]; SCSubgraphRef Subgraph_VPOC = sc.Subgraph[1]; The question is how to draw an extension line below (underneath) the dash? I tried to change the order of subgraphs (VPOC as SG1, extension line as SG2) and vice versa but unfortunately, the extension line always draws above the dash (see screenshot). P.S. VPOC code Subgraph_VPOC.Data[BarIndex] = sc.TicksToPriceValue(VolumeAtPrice.PriceInTicks); extension line code n_ACSIL::s_LineUntilFutureIntersection LineUntilFutureIntersection; LineUntilFutureIntersection.StartBarIndex = BarIndex; LineUntilFutureIntersection.LineValue = sc.TicksToPriceValue(VolumeAtPrice.PriceInTicks); LineUntilFutureIntersection.LineColor = Subgraph_ExtensionLines.PrimaryColor; LineUntilFutureIntersection.LineWidth = Subgraph_ExtensionLines.LineWidth; LineUntilFutureIntersection.LineStyle = Subgraph_ExtensionLines.LineStyle; sc.AddLineUntilFutureIntersectionEx(LineUntilFutureIntersection); |
 Screenshot (665).png / V - Attached On 2021-01-17 11:01:12 UTC - Size: 20.15 KB - 223 views |
| [2021-01-18 06:14:01] |
| Flipper - Posts: 65 |
|
Have you tried to change the order that you list the subgraphs defaults code block?
|
| [2021-01-18 07:19:20] |
| User164131 - Posts: 19 |
|

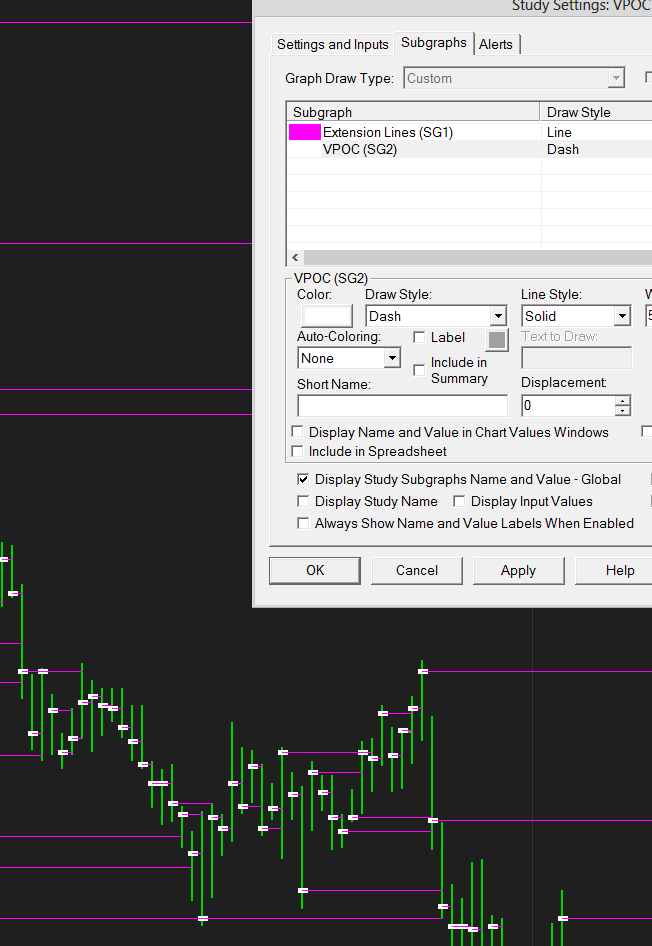

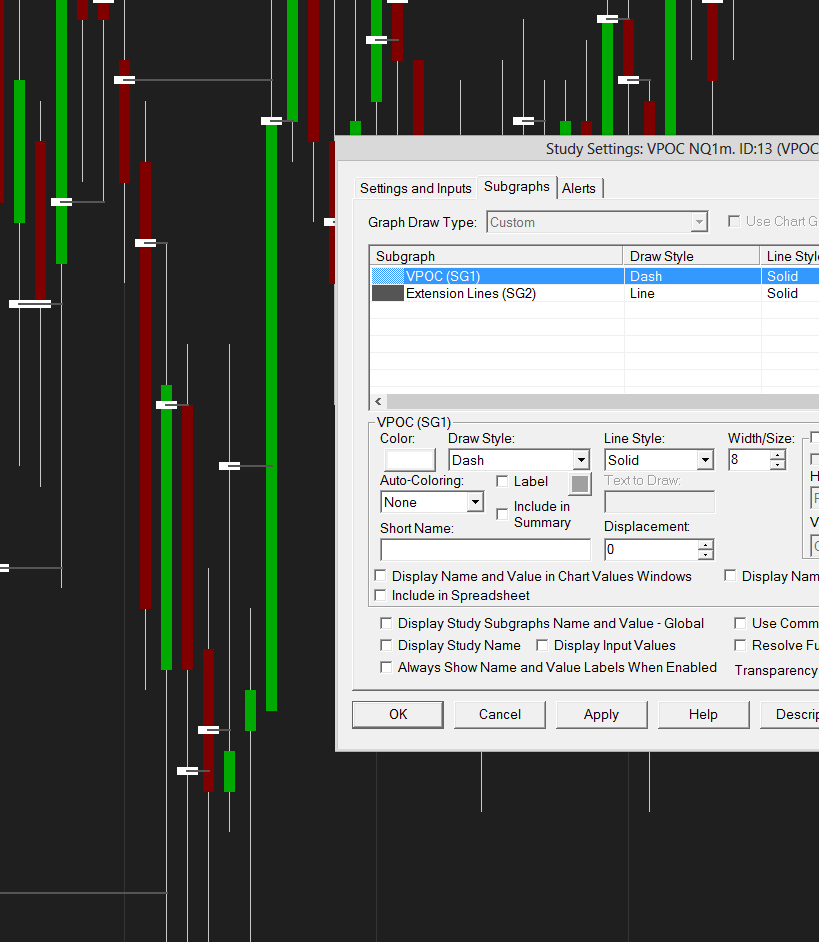

Yes, Flipper, I already tried to: 1. change subgraph numbers SCSubgraphRef Subgraph_ExtensionLines = sc.Subgraph[0]; SCSubgraphRef Subgraph_VPOC = sc.Subgraph[1]; to SCSubgraphRef Subgraph_ExtensionLines = sc.Subgraph[1]; SCSubgraphRef Subgraph_VPOC = sc.Subgraph[0]; 2. change subgraphs order in "sc.SetDefaults" section 3. change subgraphs order in the main section of code Same result — extension lines are above the dashes (see screenshot) |
| Screenshot (666).png / V - Attached On 2021-01-18 07:06:52 UTC - Size: 26.4 KB - 219 views |
