Support Board
Date/Time: Thu, 20 Feb 2025 19:51:25 +0000
Depth of Market Data doesn't show any numbers
View Count: 846
| [2021-01-15 15:31:34] |
| User781913 - Posts: 12 |
|

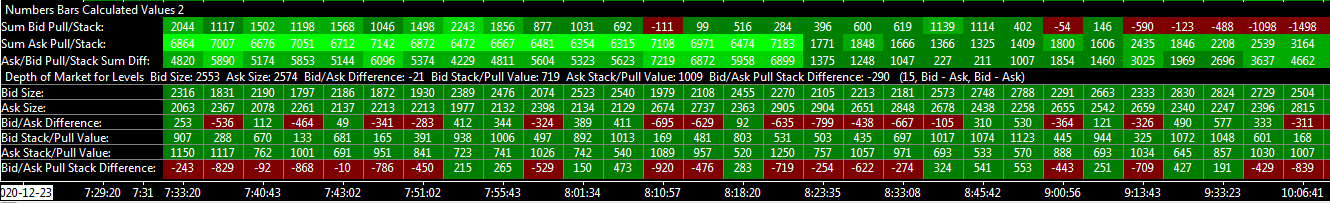

See attached. Also, there're only graph options for display, but I just want to see the numbers. How should I set it up? |
 Stack pull.png / V - Attached On 2021-01-15 15:30:58 UTC - Size: 21.46 KB - 242 views |
| [2021-01-15 15:47:50] |
| John - SC Support - Posts: 38084 |
|

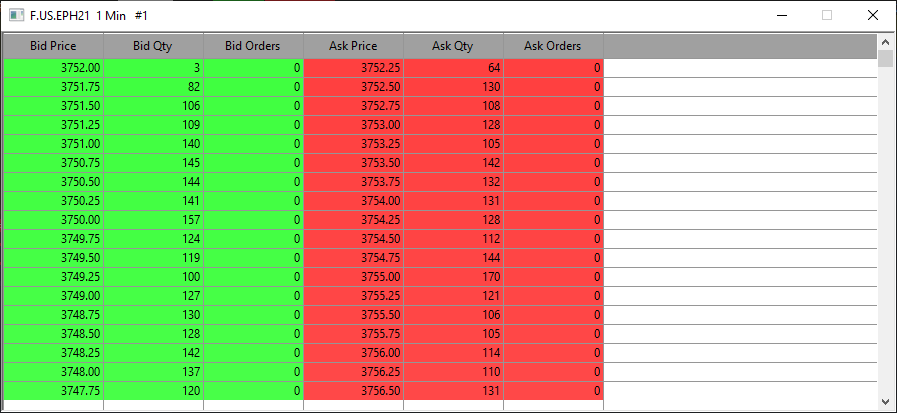

First, let's make sure you are getting the Market Depth data. Go to File >> Open Market Depth Window. Once the window opens, you should see at least 10 lines of data. Let us know if you are seeing multiple lines or just 1.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-15 16:11:19] |
| User781913 - Posts: 12 |
|

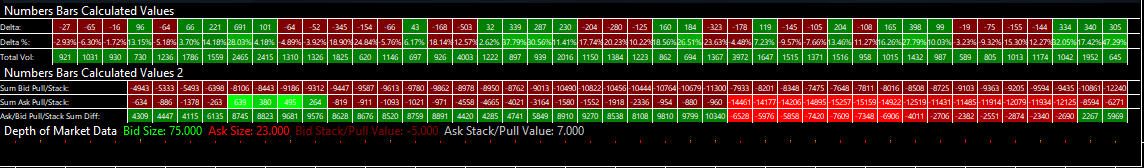

Yes, I do (see attached).
|
| mkt depth.png / V - Attached On 2021-01-15 16:10:46 UTC - Size: 24.43 KB - 208 views |
| [2021-01-15 16:18:23] |
| John - SC Support - Posts: 38084 |
|
Then you need to view the numbers in the DOM, not by using that study. To do this you need to ensure that you have the Bid/Ask Size Columns displayed. Refer to the information here: Global Trade Settings Windows: Customize Chart/Trade DOM Columns (Chart Specific) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-15 16:49:17] |
| User781913 - Posts: 12 |
|

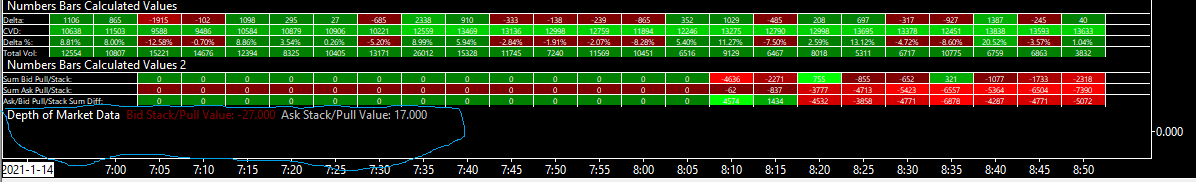

I did set up the Bid/Ask Size Columns visible. But the Bid/ask stack/pull values only exist in that study, not in the DOM. Please see attached, which is what I want. There has to be a way to set it up, cuz I saw it in youtube. |
| Stack pull1.png / V - Attached On 2021-01-15 16:48:40 UTC - Size: 18.57 KB - 215 views |
| [2021-01-15 17:59:29] |
| John - SC Support - Posts: 38084 |
|
Ok. We understand now. We cannot say for sure, but it looks like in the image you posted the person changed the names of the Subgraphs. That is part of the reason why you are having trouble finding the specific items. It is also possible that they coded this themselves. What you need to do is go through the Numbers Bars Calculated Values and Numbers Bars Calculated Values 2 studies and determine what items you want to display and then set up these studies as you require. Refer to the information starting here: Numbers Bars: Displaying Numeric Information Below Numbers Bars Just note that if you need the Pulling/Stacking information, you have to have the Pulling/Stacking columns in the DOM for the data to be calculated. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-15 18:22:17] |
| User781913 - Posts: 12 |
|

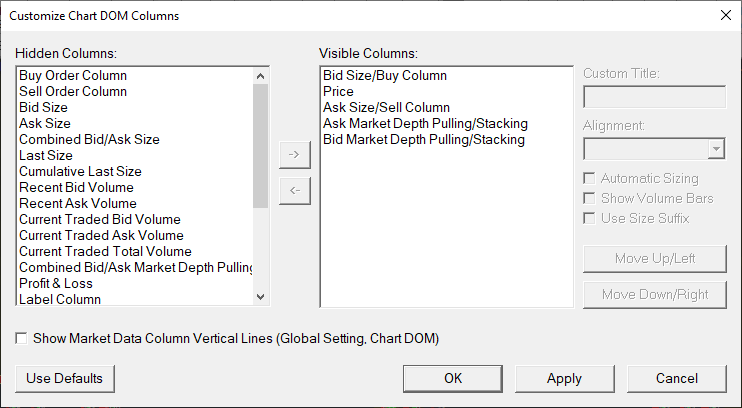

I have seen the Sum Bid/Ask pull/Stack values(see attached) in Numbers Bars Calculated Values 2 already, which means I do have the Pulling/Stacking columns in the DOM, right? I did add Pulling/Stacking to the visible columns (See attached). Or could they be user-defined values? |
| [2021-01-15 18:23:53] |
| John - SC Support - Posts: 38084 |
|
Yes, you have the columns correct, and you are getting the data in the Numbers Bars Calculated Values. Is there another question you have related to this? For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-15 18:32:41] |
| User781913 - Posts: 12 |
|
Yeah. I'm just wondering whyI can't get those Bid/Ask Stack/Pull values in the attached image. Could they be user-defined?
|
| Stack pull1.png / V - Attached On 2021-01-15 18:32:24 UTC - Size: 18.57 KB - 218 views |
| [2021-01-15 18:54:14] |
| John - SC Support - Posts: 38084 |
|
I think the user just changed the Subgraph names to be what they wanted them to be. So I think they are the following: Their Name -> Sierra Chart Name - Bid Stack/Pull Value -> Sum Bid Pull/Stack - Ask Stack/Pull Value -> Sum Ask Pull/Stack - Bid/Ask Pull Stack Difference -> Ask/Bid Pull/Stack Sum Diff You can change the name that is displayed for the Subgraph by entering a value in the Short Name field. Refer to the information here: Chart Studies: Settings and Inputs Tab >> Short Name For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-15 19:22:31] |
| User781913 - Posts: 12 |
|

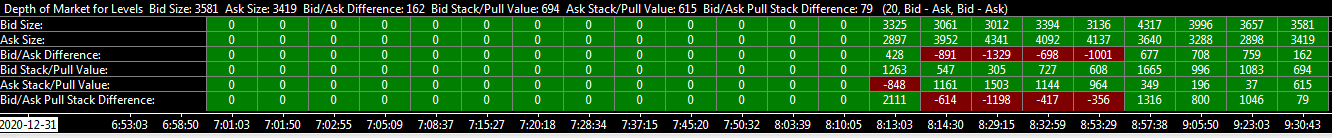

Not really. Here're all the studies the user has - it includes those Sums already. The way it displays is like data from Depth of Market Data, but it has a different name as "Depth of Market Levels".
|
| Stack pull1.png / V - Attached On 2021-01-15 19:22:22 UTC - Size: 38.76 KB - 205 views |
| [2021-01-15 19:25:37] |
| John - SC Support - Posts: 38084 |
|
Then that is a custom study that they either did themselves or got from someone else.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
