Volume Profile Total Volume + Delta Mode
View Count: 2985
| [2020-05-20 12:04:00] |
| Alberto Gauer - Posts: 121 |
|

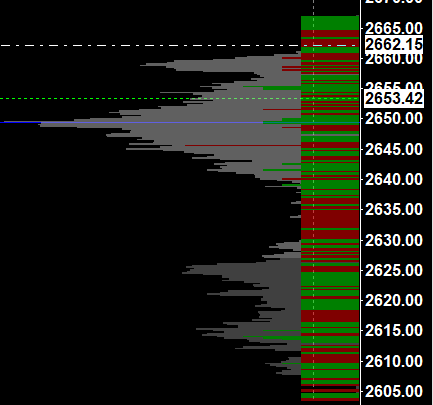

Hi there, is there any way to do this currently (I have attached a screenshot showing what I mean)? If not, can you please add this mode in a next update? Thanks https://ibb.co/vVTx7Cn |
| [2020-05-20 13:06:34] |
| binaryduke - Posts: 369 |
|
+1 for this.
|
| [2020-05-20 17:09:54] |
| |
|
This is supported with the options in the Volume by Price study. Just be sure the Volume Bar Calculation Method is set to Total Volume, then set the Bid and Ask Volume Coloring Method to Difference of Bid and Ask Volume Coloring. Refer to these settings starting here: Volume By Price Study: Volume Bar Calculation Method Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2020-05-20 17:10:12
|
| [2020-05-20 17:40:05] |
| Alberto Gauer - Posts: 121 |
|
@Sierra Chart Engineering Hi, thanks for replying. I already tried that, it is not the same thing as what I suggested. The Bid and Ask Volume Coloring Method will color the full histogram, so you don´t have a visual reference of how much of that volume is buying or selling. In the picture I posted here, the volume profile will have the delta profile mode inside the total volume profile. In essence, what I suggested is having both total volume and delta volume overlaid in the Volume Bar Calculation Method. |
| [2020-05-20 19:04:42] |
| binaryduke - Posts: 369 |
|
The issue with post #3 is the scale. Often it's not possible to see the delta as it's such a small proportion of the total volume. The ability to run the delta visualisation as a separate scale to the volume is what would make this really useful.
|
| [2020-05-24 20:49:46] |
| John - SC Support - Posts: 36203 |
|
The request to allow scaling of the Delta volumes has been on our To-Do list. We just can't give any time frame for when we will be able to get to it.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2020-07-14 19:42:31] |
| John - SC Support - Posts: 36203 |
|
We have added the functionality to allow for scaling of the Difference of Bid and Ask Volume Coloring when using a Volume Calculation Method of Total Volume, Bid Volume, or Ask Volume. Refer to the documentation for the 2 Inputs that control this starting here: Volume By Price Study: Draw Difference of Bid and Ask Volume Using Percent of Max Bar This change will be in the next Pre-Release (v 2137). For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2024-10-15 11:03:58] |
| User141735 - Posts: 12 |
|
Hello, can you please find out why the Difference of Bid and Ask Volume is displayed like this ? https://ibb.co/mRSsX9d it is hiding a big part of the Total volume low nodes. Regards, |
 Screenshot 2024-10-15 115633.png / V - Attached On 2024-10-15 10:56:42 UTC - Size: 13.14 KB - 23 views |
| [2024-10-15 15:33:33] |
| John - SC Support - Posts: 36203 |
|
Please get us that chart by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
