Study Overlay - how do I reference smaller timeframe charts?
View Count: 864
| [2020-03-22 21:37:17] |
| grantx - Posts: 244 |
|
I am using the 'study overly - ohlc' on a 5minute chart. I have referenced a 1 minute NISS-SP chart and set it as region 2. The problem here is that your documentation says that I am supposed to see 1 minute candles but this study automatically sets the reference chart to whatever timeframe I set the main chart to be. I would like the study to stay at the timeframe of the reference chart no matter what I set the main chart to. How do I achieve this? |
| [2020-03-23 09:37:58] |
| |
|
We do not see how this is even technically possible and cannot reproduce. Make absolutely certain you are using the correct study: Study Overlay - OHLC (Open, High, Low, Close) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2020-03-23 13:51:43] |
| grantx - Posts: 244 |
|

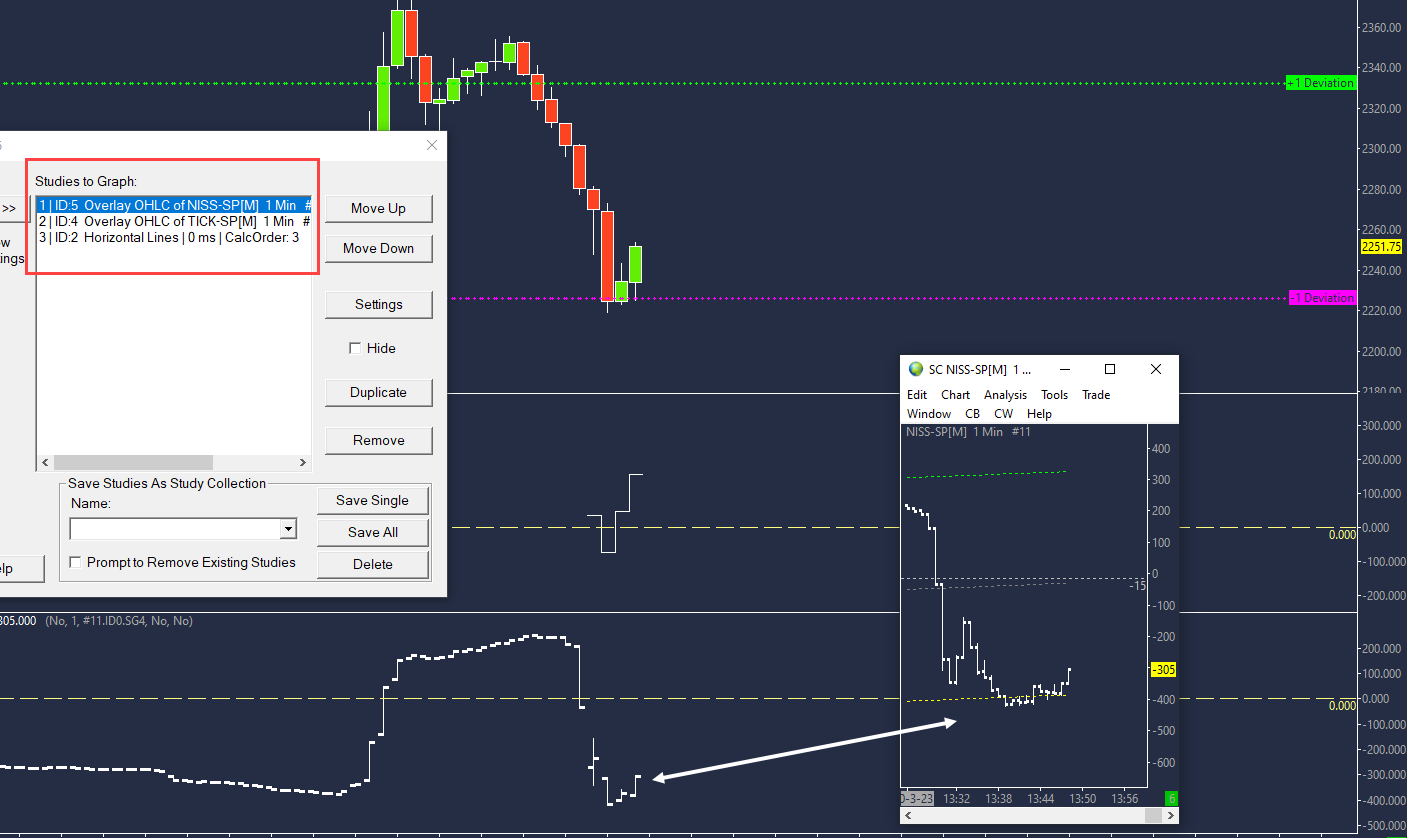

I am using exactly that study. See attached. See that arrow? On the study window under my main chart it has changed the size from 1 minute to 5 minute bars. Yet on the chart I am referencing, it is a 1 minute chart. |
2.png| [2020-03-23 18:07:12] |
| |
|
The closest you can get to what you want is by using this study: Study/Price Overlay Study Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2020-03-23 19:40:02] |
| grantx - Posts: 244 |
|
Nope. That doesn't work either. Your documentation says: "This is useful to be able to create OHLC bars for a study to see its range of values during a longer duration bar by referencing the study Line/Subgraph on shorter duration bars." So, is it possible to put a 1 minute timeframe study onto my 5 minute chart without the study resetting to 5 minute? |
| [2020-03-24 03:18:47] |
| |
|
There is a misunderstanding as to what that is describing. In this case the one minute bars are combined into a five-minute bar.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2020-03-24 03:18:56
|
