SCSFExport scsf_StudyOverlayOHLC(SCStudyInterfaceRef sc)
{
SCSubgraphRef Subgraph_Open = sc.Subgraph[0];
SCSubgraphRef Subgraph_High = sc.Subgraph[1];
SCSubgraphRef Subgraph_Low = sc.Subgraph[2];
SCSubgraphRef Subgraph_Last = sc.Subgraph[3];
SCSubgraphRef Subgraph_OHLCAvg = sc.Subgraph[6];
SCSubgraphRef Subgraph_HLCAvg = sc.Subgraph[7];
SCSubgraphRef Subgraph_HLAvg = sc.Subgraph[8];

SCInputRef Input_UseZeroValuesFromSource = sc.Input[0];
SCInputRef Input_Multiplier = sc.Input[3];
SCInputRef Input_ChartStudySubgraphReference = sc.Input[4];
SCInputRef Input_Version = sc.Input[5];
SCInputRef Input_DrawZeros = sc.Input[6];
SCInputRef Input_UseStandardOHLCSubgraphsFromSourceStudy = sc.Input[7];

if (sc.SetDefaults)
{
sc.GraphName = "Study Overlay - OHLC";

sc.ValueFormat = 3;
sc.GraphRegion = 1;
sc.GraphDrawType = GDT_OHLCBAR;

sc.AutoLoop = 0;

Subgraph_Open.Name = "Open";
Subgraph_Open.DrawStyle = DRAWSTYLE_LINE;
Subgraph_Open.PrimaryColor = RGB(0,255,0);
Subgraph_Open.SecondaryColor = RGB(0,255,0);
Subgraph_Open.SecondaryColorUsed = 1;
Subgraph_Open.DrawZeros = false;
Subgraph_Open.LineWidth = 1;

Subgraph_High.Name = "High";
Subgraph_High.DrawStyle = DRAWSTYLE_LINE;
Subgraph_High.PrimaryColor = RGB(128,255,128);
Subgraph_High.DrawZeros = false;
Subgraph_High.LineWidth = 1;

Subgraph_Low.Name = "Low";
Subgraph_Low.DrawStyle = DRAWSTYLE_LINE;
Subgraph_Low.PrimaryColor = RGB(255,0,0);
Subgraph_Low.SecondaryColor = RGB(255,0,0);
Subgraph_Low.SecondaryColorUsed = 1;
Subgraph_Low.DrawZeros = false;
Subgraph_Low.LineWidth = 1;

Subgraph_Last.Name = "Last";
Subgraph_Last.DrawStyle = DRAWSTYLE_LINE;
Subgraph_Last.PrimaryColor = RGB(255,128,128);
Subgraph_Last.DrawZeros = false;
Subgraph_Last.LineWidth = 1;

Subgraph_OHLCAvg.Name = "OHLC Avg";
Subgraph_OHLCAvg.DrawStyle = DRAWSTYLE_IGNORE;
Subgraph_OHLCAvg.PrimaryColor = RGB(127,0,255);
Subgraph_OHLCAvg.DrawZeros = false;

Subgraph_HLCAvg.Name = "HLC Avg";
Subgraph_HLCAvg.DrawStyle = DRAWSTYLE_IGNORE;
Subgraph_HLCAvg.PrimaryColor = RGB(0,255,255);
Subgraph_HLCAvg.DrawZeros = false;

Subgraph_HLAvg.Name = "HL Avg";
Subgraph_HLAvg.DrawStyle = DRAWSTYLE_IGNORE;
Subgraph_HLAvg.PrimaryColor = RGB(0,127,255);
Subgraph_HLAvg.DrawZeros = false;

Input_UseZeroValuesFromSource.Name = "Use Zero Values from Source Study";
Input_UseZeroValuesFromSource.SetYesNo(false);

Input_Multiplier.Name = "Multiplier";
Input_Multiplier.SetFloat(1.0f);

Input_ChartStudySubgraphReference.Name = "Chart, Study, Subgraph Reference";
Input_ChartStudySubgraphReference.SetChartStudySubgraphValues(1,1,0);

Input_Version.SetInt(1);

Input_DrawZeros.Name = "Draw Zero Values";
Input_DrawZeros.SetYesNo(false);

Input_UseStandardOHLCSubgraphsFromSourceStudy.Name = "Use Standard OHLC Subgraphs from Source Study";
Input_UseStandardOHLCSubgraphsFromSourceStudy.SetYesNo(false);

return;
}

if (Input_DrawZeros.GetYesNo())
{
Subgraph_Open.DrawZeros = true;
Subgraph_High.DrawZeros = true;
Subgraph_Low.DrawZeros = true;
Subgraph_Last.DrawZeros = true;
Subgraph_OHLCAvg.DrawZeros = true;
Subgraph_HLCAvg.DrawZeros = true;
Subgraph_HLAvg.DrawZeros = true;
}
else
{
Subgraph_Open.DrawZeros = false;
Subgraph_High.DrawZeros = false;
Subgraph_Low.DrawZeros = false;
Subgraph_Last.DrawZeros = false;
Subgraph_OHLCAvg.DrawZeros = false;
Subgraph_HLCAvg.DrawZeros = false;
Subgraph_HLAvg.DrawZeros = false;
}

int ChartNumber = Input_ChartStudySubgraphReference.GetChartNumber();
int StudyID = Input_ChartStudySubgraphReference.GetStudyID();
int StudySubgraphNumber = Input_ChartStudySubgraphReference.GetSubgraphIndex();

float MultiplierVal = Input_Multiplier.GetFloat();
if (MultiplierVal == 0.0f)
MultiplierVal = 1.0f;

SCDateTimeArray ReferenceChartDateTimeArray;
sc.GetChartDateTimeArray(ChartNumber, ReferenceChartDateTimeArray);
if (ReferenceChartDateTimeArray.GetArraySize() == 0)
return;

SCGraphData ReferenceArrays;
sc.GetStudyArraysFromChartUsingID(ChartNumber, StudyID, ReferenceArrays);

c_ArrayWrapper<float>* p_ReferenceOpen = NULL;
c_ArrayWrapper<float>* p_ReferenceHigh = NULL;
c_ArrayWrapper<float>* p_ReferenceLow = NULL;
c_ArrayWrapper<float>* p_ReferenceClose = NULL;

if (Input_UseStandardOHLCSubgraphsFromSourceStudy.GetYesNo())
{
p_ReferenceOpen = &ReferenceArrays[SC_OPEN];
p_ReferenceHigh = &ReferenceArrays[SC_HIGH];
p_ReferenceLow = &ReferenceArrays[SC_LOW];
p_ReferenceClose = &ReferenceArrays[SC_LAST];
}
else
{
p_ReferenceOpen = &ReferenceArrays[StudySubgraphNumber];
p_ReferenceHigh = &ReferenceArrays[StudySubgraphNumber];
p_ReferenceLow = &ReferenceArrays[StudySubgraphNumber];
p_ReferenceClose = &ReferenceArrays[StudySubgraphNumber];
}

SCFloatArrayRef ReferenceSubgraphArray = ReferenceArrays[StudySubgraphNumber];

if (Input_UseStandardOHLCSubgraphsFromSourceStudy.GetYesNo())
{
if (ReferenceArrays[SC_OPEN].GetArraySize() == 0
|| ReferenceArrays[SC_HIGH].GetArraySize() == 0
|| ReferenceArrays[SC_LOW].GetArraySize() == 0
|| ReferenceArrays[SC_LAST].GetArraySize() == 0
)
{
sc.AddMessageToLog("Study references a Study Subgraph that does not exist.", 1);
return;
}
}
else if (ReferenceSubgraphArray.GetArraySize() == 0)
{
sc.AddMessageToLog("Study references a Study Subgraph that does not exist.", 1);
return;
}

if (sc.UpdateStartIndex == 0)
{
SCString StudyName = sc.GetStudyNameFromChart(ChartNumber, StudyID);
if (ChartNumber == sc.ChartNumber && StudyID == sc.StudyGraphInstanceID)
StudyName = "Self";

sc.GraphName.Format("Overlay OHLC of %s", StudyName.GetChars());

//Zero all output values at all chart bars
for (int Index = 0; Index < sc.ArraySize; Index++)
{
Subgraph_Open[Index] = 0.0f;
Subgraph_High[Index] = 0.0f;
Subgraph_Low[Index] = 0.0f;
Subgraph_Last[Index] = 0.0f;
sc.CalculateOHLCAverages(Index);
}
}

int RefDataStartIndex = sc.GetStudyDataStartIndexFromChartUsingID(ChartNumber, StudyID);

sc.DataStartIndex =
sc.GetContainingIndexForSCDateTime(sc.ChartNumber, ReferenceChartDateTimeArray[RefDataStartIndex].GetAsDouble());

int ArraySize = sc.BaseDateTimeIn.GetArraySize();
int RefArraySize = ReferenceChartDateTimeArray.GetArraySize();

int RefIndex = 0;
int StudyStartIndex = max(sc.DataStartIndex, sc.UpdateStartIndex - 1);

// Find the appropriate reference index
RefIndex = sc.GetContainingIndexForSCDateTime(ChartNumber, sc.BaseDateTimeIn[StudyStartIndex].GetAsDouble());

// If no exact match is found, IndexForDateTime returns index right before the specified date and time
if (sc.BaseDateTimeIn[StudyStartIndex] > ReferenceChartDateTimeArray[RefIndex])
{
RefIndex++;
}

if (RefIndex >= RefArraySize || StudyStartIndex >= ArraySize)
return;

int StartingPoint = StudyStartIndex; // for CalculateAverages afterwards

float OpenVal = (*p_ReferenceOpen)[RefIndex];
float HighVal = (*p_ReferenceHigh)[RefIndex];
float LowVal = (*p_ReferenceLow)[RefIndex];
float CloseVal = (*p_ReferenceClose)[RefIndex];

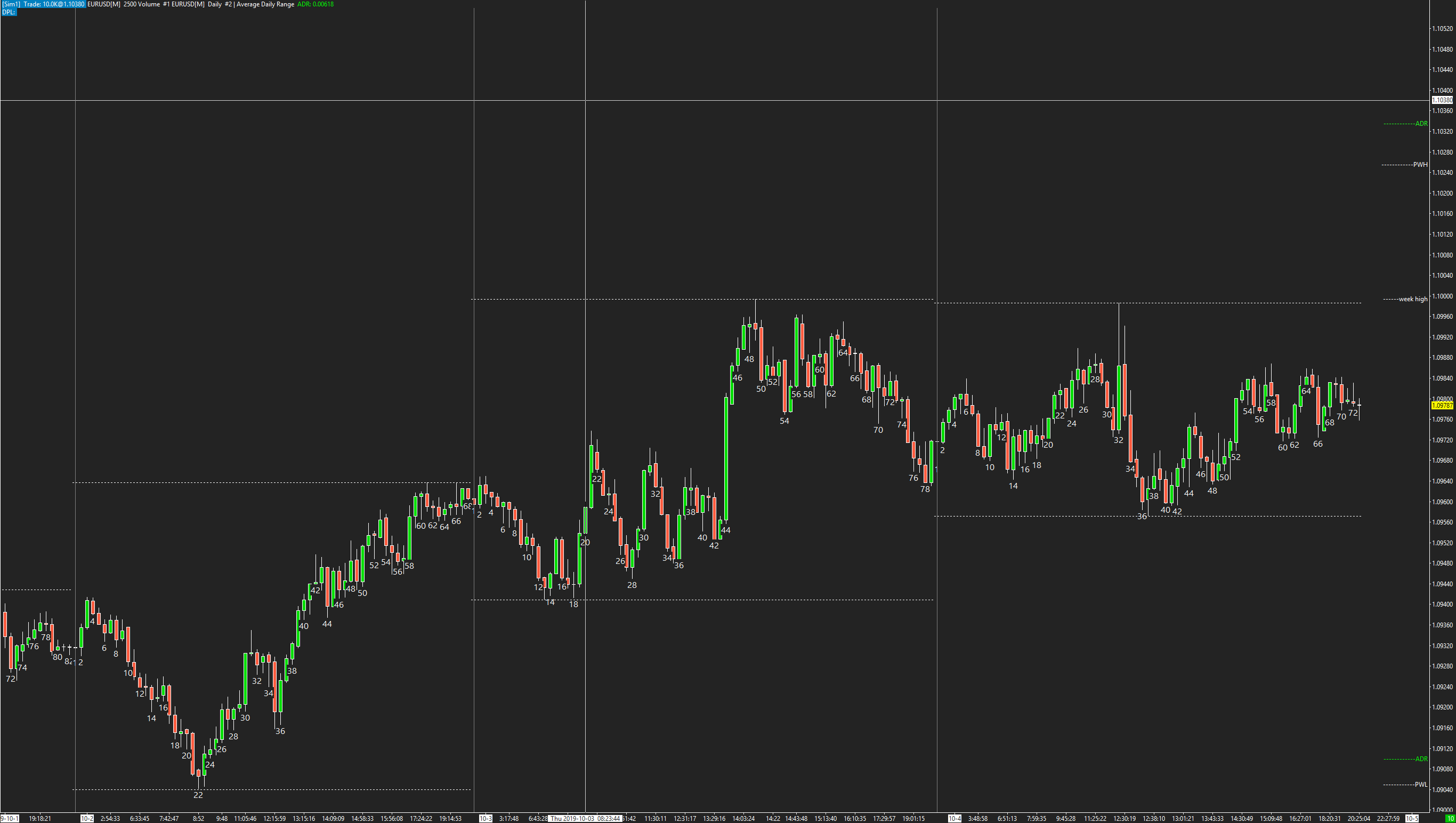

// Calculate the date range for the prior 3 days
SCDateTime CurrentDate = sc.BaseDateTimeIn[ArraySize - 1].GetDate();
SCDateTime StartDate = CurrentDate - SCDateTime::DAYS(3);
SCDateTime EndDate = CurrentDate - SCDateTime::DAYS(1);

for (int OutputArrayIndex = StudyStartIndex; OutputArrayIndex < ArraySize; OutputArrayIndex++)
{
SCDateTime CurrentBarDate = sc.BaseDateTimeIn[OutputArrayIndex].GetDate();

// Skip bars that are not within the prior 3 days
if (CurrentBarDate < StartDate || CurrentBarDate >= CurrentDate)
{
Subgraph_Open[OutputArrayIndex] = 0;
Subgraph_Last[OutputArrayIndex] = 0;
Subgraph_High[OutputArrayIndex] = 0;
Subgraph_Low[OutputArrayIndex] = 0;
continue;
}

// If DateTime is not contained, then skip. Most likely because referenced graph has a larger duration time period
if (OutputArrayIndex + 1 < ArraySize && sc.BaseDateTimeIn[OutputArrayIndex + 1] <= ReferenceChartDateTimeArray[RefIndex])
{
Subgraph_Open[OutputArrayIndex] = 0;
Subgraph_Last[OutputArrayIndex] = 0;
Subgraph_High[OutputArrayIndex] = 0;
Subgraph_Low[OutputArrayIndex] = 0;
continue;
}

SCDateTime NextIndexDateTime = SCDateTime::GetMaximumDate();

if(OutputArrayIndex + 1 < ArraySize)
{
NextIndexDateTime = sc.BaseDateTimeIn[OutputArrayIndex + 1];
}

// Increment RefIndex while Next BaseTime is greater than RefTime
while (NextIndexDateTime > ReferenceChartDateTimeArray[RefIndex])
{
if ((Input_UseZeroValuesFromSource.GetYesNo() || (*p_ReferenceHigh)[RefIndex] != 0.0f)
&& HighVal < (*p_ReferenceHigh)[RefIndex]
)
{
HighVal = (*p_ReferenceHigh)[RefIndex];
}
else if ((Input_UseZeroValuesFromSource.GetYesNo() || (*p_ReferenceLow)[RefIndex] != 0.0f)
&& LowVal > (*p_ReferenceLow)[RefIndex]
)
{
LowVal = (*p_ReferenceLow)[RefIndex];
}

if (Input_UseZeroValuesFromSource.GetYesNo() || (*p_ReferenceClose)[RefIndex] != 0.0f)
CloseVal = (*p_ReferenceClose)[RefIndex];

RefIndex++;

if (RefIndex >= RefArraySize)
break;
}

Subgraph_Open[OutputArrayIndex] = OpenVal * MultiplierVal;
Subgraph_Last[OutputArrayIndex] = CloseVal * MultiplierVal;
Subgraph_High[OutputArrayIndex] = HighVal * MultiplierVal;
Subgraph_Low[OutputArrayIndex] = LowVal * MultiplierVal;

sc.CalculateOHLCAverages(OutputArrayIndex);

if (RefIndex >= RefArraySize)
break;

OpenVal = (*p_ReferenceOpen)[RefIndex];
HighVal = (*p_ReferenceHigh)[RefIndex];
LowVal = (*p_ReferenceLow)[RefIndex];
CloseVal = (*p_ReferenceClose)[RefIndex];
}
}
