Volume by Price study

View Count: 2285

[2013-12-09 18:37:07] #1 [Go To First Post]
User23815 - Posts: 210
Am I able to set the Volume by Price Study so that it shows a separate profile for each period selected, across the visible chart? For example, If I can see 3 days on the visible chart, and have the chart set for day and evening sessions, Can I set the study to show a profile for each session on the 3 days that I am viewing? I am on subscription #3. Thanks

[2013-12-10 03:01:19] #2 [Go To First Post]
Zosimus - Posts: 345
Yes, use the following settings for the volume by price study: Volume Graph Period Type - Fixed by Time Time Period Type for Fixed by Time - Days Time Period Length for Fixed by Time - 1 Use Separate Profile for Evening Session - Yes

[2013-12-11 09:41:20] #3 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
The instructions given in post #2 are correct. Let us know if you need further help. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2013-12-25 13:09:12] #4 [Go To First Post]
User34597 - Posts: 11
Hi I seem to be having the same issues as the first post. On daily chart with volume profile enabled, specifically with settings Highlight Value Area : Yes, Extend Value Area : Until Future Intersection, Value Area Percentage : 70. The issue I have is that these extended horizontal value area lines depicting the daily value area hi's and low's are incorrect. The lines representing the value area are simply horizontal lines equally spaced out. For example on my ZN H4 chart the value area lines for the last 4 sessions are @ 123 9/32, 123 14/32, 123 19/32, 123 24/32, 123 29/32, 124 2/32 etc ie equally spaced out at 10 ticks. The same pattern is repeated in other products. I have followed the instructions for the settings for volume profile but am I missing something? I can provide screenshots if necessary. Please help, thanks Date Time Of Last Edit: 2013-12-25 14:59:55

[2013-12-25 19:31:44] #5 [Go To First Post]
Zosimus - Posts: 345
Are you looking at an Intraday chart or a historical chart? (Take a look at the Chart Settings).

[2013-12-25 20:26:50] #6 [Go To First Post]
User34597 - Posts: 11
Thanks for your reply. Historical charts, but I'm sure my settings are correct. Getting same values when I switch to Intraday charts Any ideas? :) Date Time Of Last Edit: 2013-12-25 20:30:40

[2013-12-25 21:09:55] #7 [Go To First Post]
Zosimus - Posts: 345
I'm sure the SC team will be able to nail the problem much quicker than me but meanwhile it will help me if you could post images of 1. The Chart 2. The Chart settings 3. The Volume by Price settings.

[2013-12-25 21:20:36] #8 [Go To First Post]
User34597 - Posts: 11
http://www.sierrachart.com/image.php?l=138800640529.png

[2013-12-25 21:34:58] #9 [Go To First Post]
Zosimus - Posts: 345
Could you add images of the Chart settings and the Volume by Price settings ?

[2013-12-25 21:38:01] #10 [Go To First Post]
User34597 - Posts: 11
Sorry im having trouble uploading an image of chart settings / vol by price settings because with this feature open Sc doesnt seem to let me then copy. Also not able to just attach screenshot (sorry im kinda new to all this)

[2013-12-25 21:44:26] #11 [Go To First Post]
Zosimus - Posts: 345
1. Take a screenshot and save it on your pc. 2. Click Edit Attached Files (at the bottom) 3.Choose the Screenshot file and Upload it. 4.Click the Submit new Reply button (Don't close the file uploading window before submitting the reply).

[2013-12-25 21:52:44] #12 [Go To First Post]
User34597 - Posts: 11

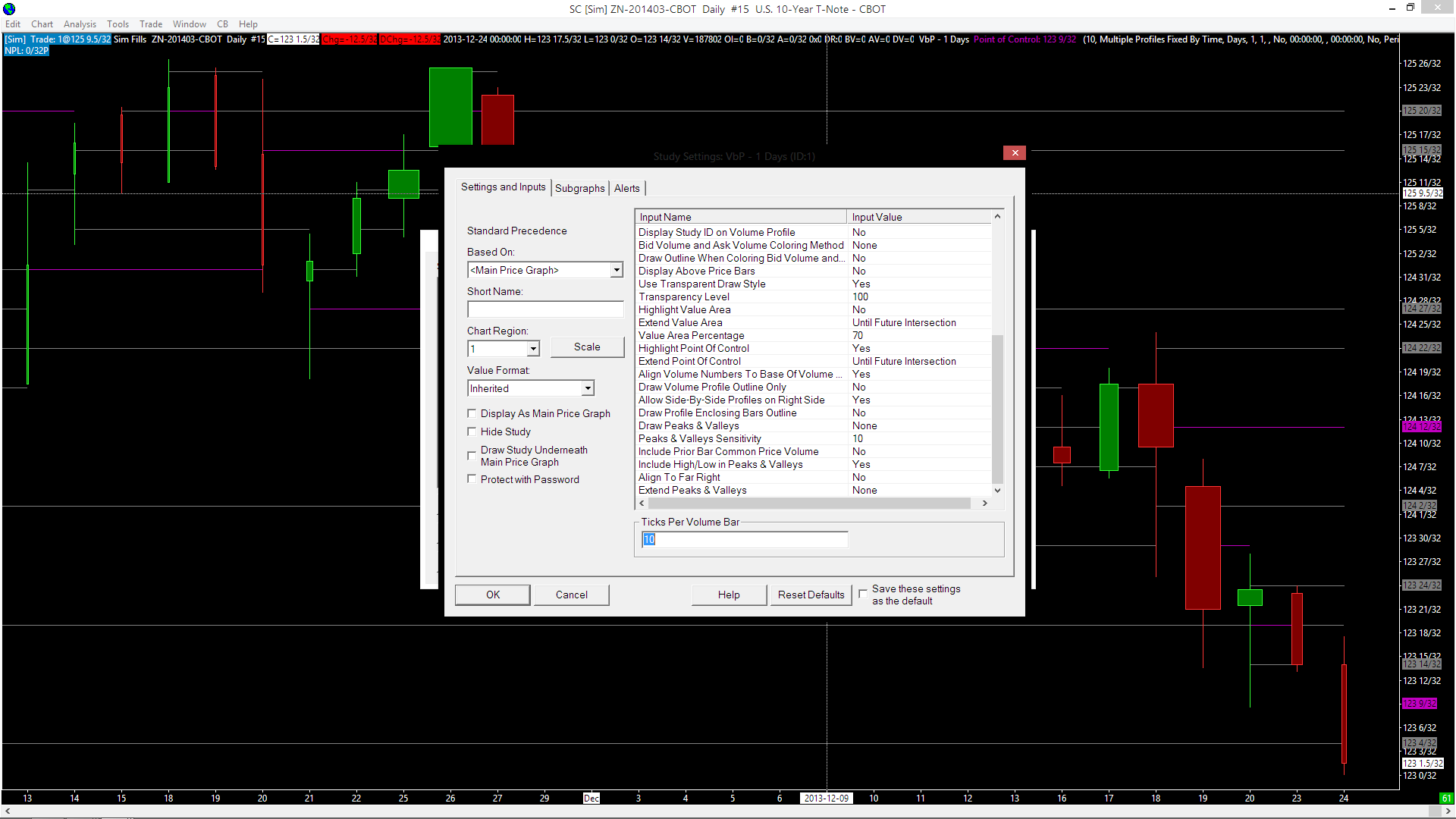

Got it. Thanks. Here are the settings


VOL BY PRICE settings1.png / V - Attached On 2013-12-25 21:50:33 UTC - Size: 81.89 KB - 429 views VOL BY PRICE settings2.png / V - Attached On 2013-12-25 21:51:02 UTC - Size: 82.5 KB - 466 views chartsettings.png / V - Attached On 2013-12-25 21:51:12 UTC - Size: 84.11 KB - 448 views Attachment Deleted.

[2013-12-25 22:07:23] #13 [Go To First Post]
Zosimus - Posts: 345
First try to change the "Ticks Per Volume Bar" to 1. (It's the very first line on the study Settings window)

[2013-12-25 22:10:17] #14 [Go To First Post]
User34597 - Posts: 11
I did originally have it set to 1 but in the SC info on VBP it suggests setting this to between 5 and 10 for non intraday charts. I've changed it back to 1 and no joy Date Time Of Last Edit: 2013-12-25 22:11:39

[2013-12-25 22:22:58] #15 [Go To First Post]
Zosimus - Posts: 345
On the Chart Setting you have 5 for the "Volume at Price Multiplier". Change it to 1.

[2013-12-25 22:29:27] #16 [Go To First Post]
User34597 - Posts: 11
that does look much better, thank you

[2013-12-25 22:30:43] #17 [Go To First Post]
Zosimus - Posts: 345
:-)
