Volume by Price - Maximum Delta Bar Width

View Count: 2496

[2018-11-12 14:44:57]
User993113 - Posts: 70
In the Volume by Price study, is there a way to control the Maximum Delta Bar Width independently from the Maximum Volume Bar Width?
With Ninja Trader it is straight forward to have control over those settings that I can not see in the VbP study by Sierrachart.


Maximum Delta Bar Width Percentage
Right Align Delta Bars


If you take a look at this picture it should be clear what I mean.

Thank you.
Date Time Of Last Edit: 2019-01-14 13:07:42
Private File
[2018-11-13 11:45:35]
Sierra Chart Engineering - Posts: 104368
The width of a Volume by Price volume bar is based on the Displayed Volume as defined in the Input - Volume Bar Calculation Method.

Keep in mind, though, that if the Input for Bid Volume/Ask Volume Coloring Method is set to anything other than None, then the bars may be extended longer depending on the combination of these settings.
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2018-11-18 12:31:04]
User993113 - Posts: 70
I tryed the Dominant Bid Or Ask Volume Coloring (#2) and I see that it draws the dominant side available with Separate Bid/Ask Volume Coloring (#1).
This is the total volume of the dominant side and I'm not interested in it; what I'm looking for is the Difference Of Bid And Ask Volume Coloring (#3).
But as you can see in picture #3 , it is not clear so I'm asking for

1) an amplification factor of the Difference Of Bid And Ask Volume Coloring as you can see in picture #4 without the need of two different VbP studies.
2) and the option to invert the Delta profile orientation (picture #5) ; both inside the VbP settings.

Thank You
Date Time Of Last Edit: 2019-01-14 13:08:01
Private File
[2018-11-19 07:44:35]
Dingor - Posts: 13
an amplification factor of the Difference Of Bid And Ask Volume Coloring

great idea, sometimes it's hard to see it
[2018-11-26 14:14:21]
User993113 - Posts: 70
any comment by sierrachart about that?
I'm just asking for a better visualization of what you already calculate.

Thank you.
[2018-12-03 14:27:56]
User829216 - Posts: 15
+1
pls update SC support as I have also asked for the same. You have a fab product and it can only get better
[2018-12-04 18:00:27]
Sierra Chart Engineering - Posts: 104368
We need some time to review this and understand what is being requested.
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2019-01-21 07:28:58]
User993113 - Posts: 70
Dear Support,
I repeat what I'm loooking for

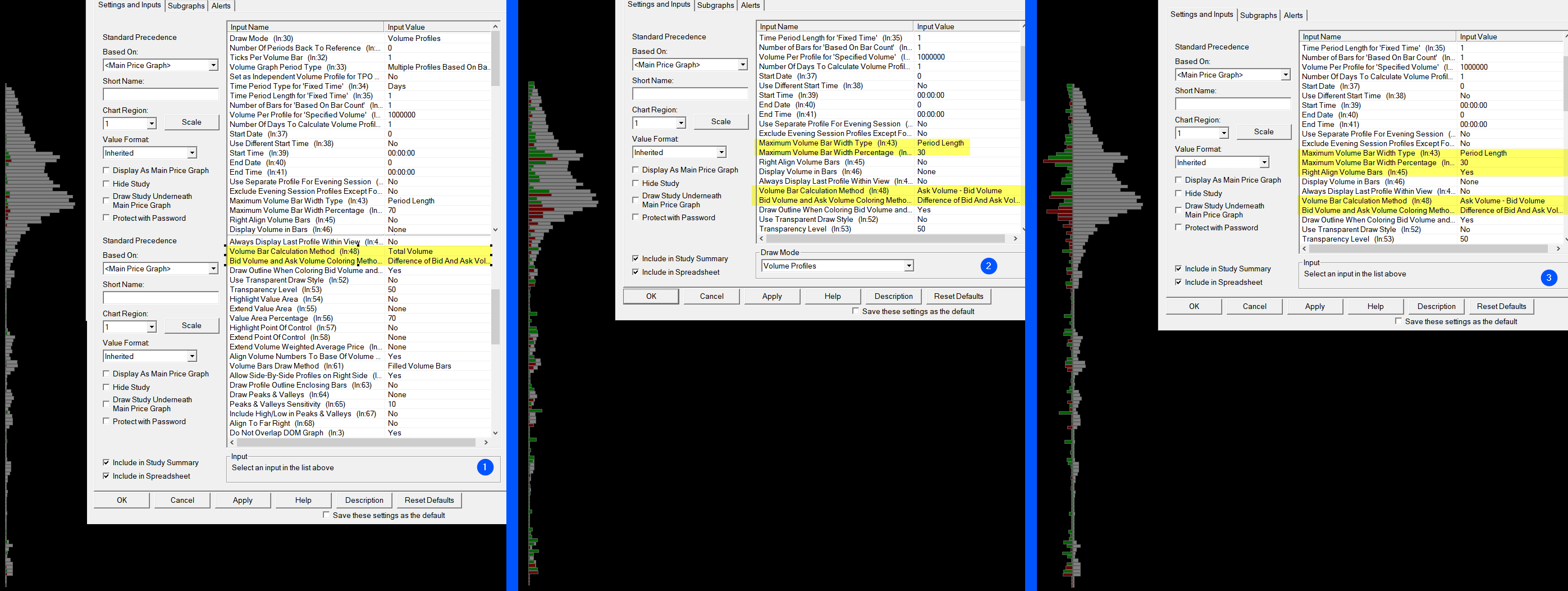

Looking at the attached pitcure, you can see in #1 the default Volume by Price with the Bid Volume and Ask Volume Coloring Method = Difference Of Bid And Ask Volume Coloring.

Because I don't have control over the width of the Difference Of Bid And Ask Volume Coloring, in #2 I had to overlay a second VbP changing the Volume Bar Calculation Method to Ask Volume - Bid Volume, that way I can control it.
For this to be usable also in the Draw Volume Profile, I need two controls inside the Volume by Price study; they could be named something like:
Maximum Delta Bar Width Type
Maximum Delta Bar Width Percentage

They both must be independent from their respective Volume Settings ( Maximum Volume Bar Width Type and Maximum Volume Bar Width Percentage)

In number #3 you can see that I had set the Right Align Volume Bars options to Yes in the overlayed VbP
For this I need an option independent from the Right Align Volume Bars named something like:
Right Align Delta Bars


Thank You
Date Time Of Last Edit: 2019-02-04 10:40:28
imageMaximum Delta Bar Width.png / V - Attached On 2019-01-21 07:26:51 UTC - Size: 191.94 KB - 559 views
[2019-02-04 11:35:43]
Dingor - Posts: 13
+ 1 for post 8 request
[2019-02-04 20:09:45]
User829216 - Posts: 15
Image 3 is what SC Engineers should be aiming for as it gives in my opinion the best way of seeing volume and delta side by side.
[2020-02-12 20:01:49]
TeddyTornado - Posts: 6
Is there finally any solution after several requests from different people?
