Volume profile question
View Count: 1317
| [2018-10-04 09:49:58] |
| Ingmar Brouwer - Posts: 4 |
|

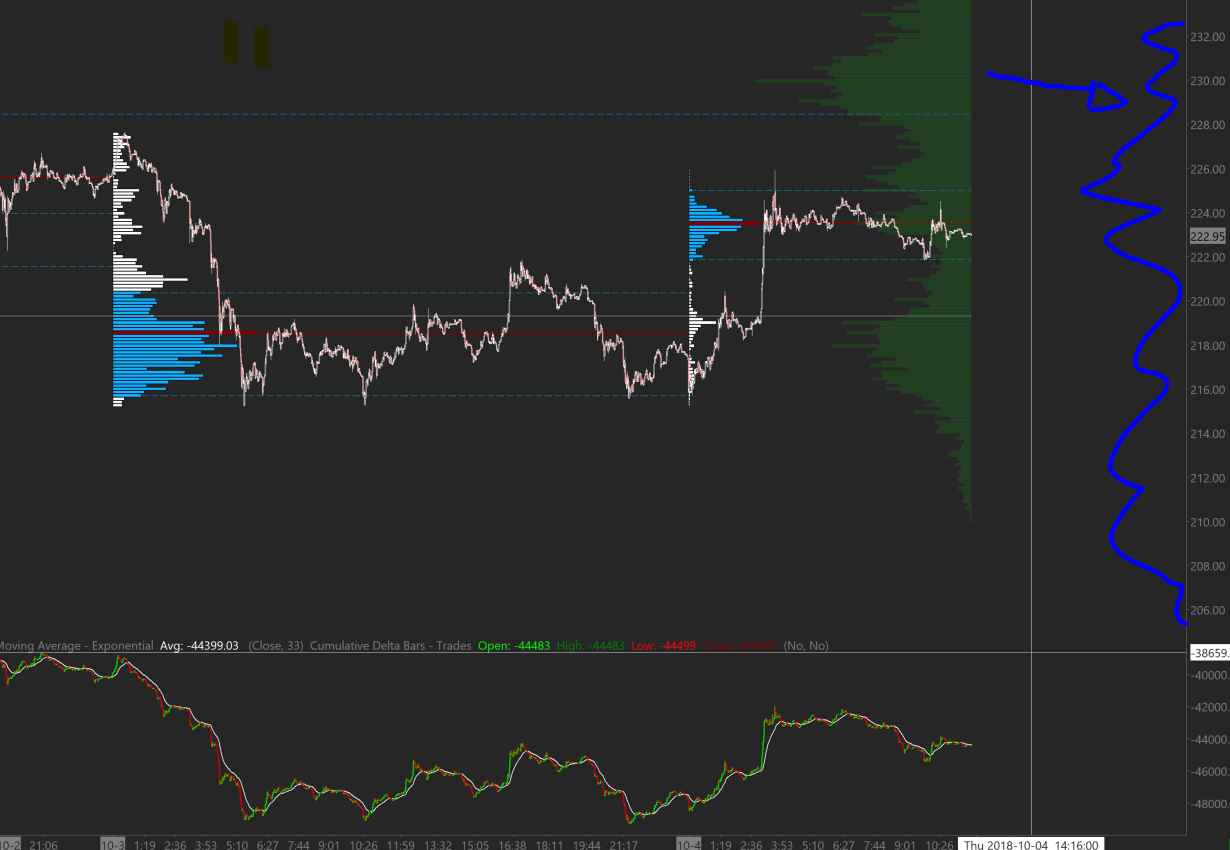

Hi there, Does somebody knows if it is possible to have my profile on the far right and not under the price below a screenshot what i mean. And if possible how to do this? Thanks, Kind regards |
 sierrachart question.PNG / V - Attached On 2018-10-04 09:48:58 UTC - Size: 130.78 KB - 677 views |
| [2018-10-04 10:18:44] |
| User907968 - Posts: 825 |
|

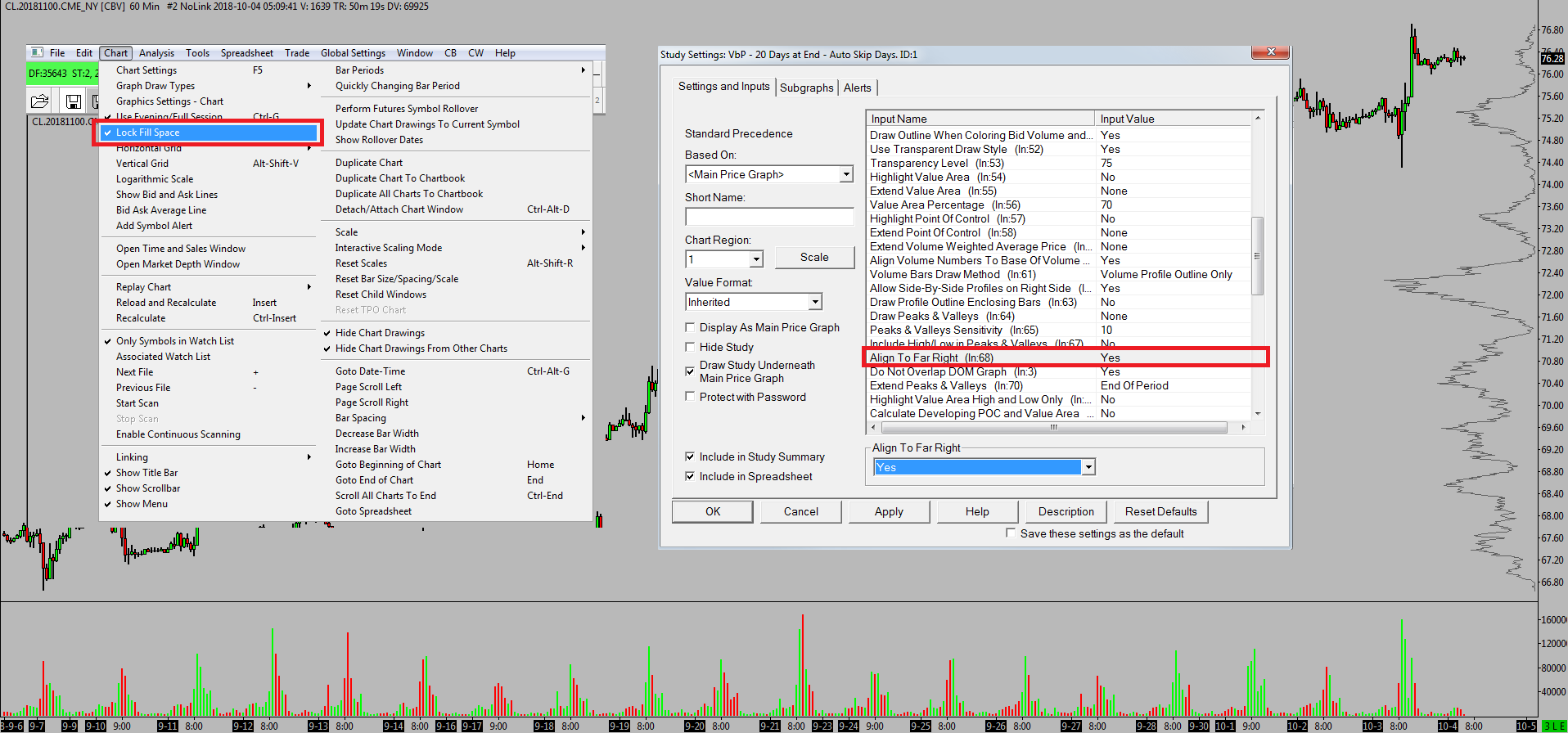

See image attached 1. Volume profile - align to far right - set to yes 2. Move price bars so that last bar is where you want on chart (ensure that 'Lock Fill Space is disabled first) 3. Enable 'Lock Fill Space' (see chart menu) |
Attachment Deleted. vp right align.png / V - Attached On 2018-10-04 10:18:28 UTC - Size: 164.9 KB - 402 views |
| [2018-10-04 15:11:04] |
| User750920 - Posts: 280 |
|
Thanks for this. When I set the Volume Profile to align far right it does not stay there if I use the scroll wheel.
|
| [2018-10-04 15:19:33] |
| User907968 - Posts: 825 |
|
Ah yes, there is an option 'Always keep last profile within view', that should fix it for you I think.
|
| [2018-10-04 16:00:33] |
| User750920 - Posts: 280 |
|
That was it thanks so much. There are so many inputs it is easy to overlook. By the way how did yo get the Chart studies window "and" the chart drop down menu in the same picture above. Whenever I have the studies inputs window open I cannot do anything else. Is there a setting allowing multiple widows to be opened - it would sure make it easier to review settings in one window against another.
|
| [2018-10-04 16:10:49] |
| User907968 - Posts: 825 |
|
No problem. Re the window & menu open at the same time, that was a cut & paste job in MS paint unfortunately. |
| [2018-10-04 18:13:55] |
| User750920 - Posts: 280 |
|
I am recent convert to Sierra. Came from another program that allowed any number of preference windows open at the same time. That was a nice feature, but I am enjoying the functionality of Sierra much more, so far glad I switched.
|
| [2018-10-04 21:08:01] |
| Ingmar Brouwer - Posts: 4 |
|
thanks it worked..
|
| [2018-10-05 19:47:40] |
| |
|
Here is the relevant documentation for the first question: Volume By Price Study: Right Aligning Volume Profiles with Space on Right Side of Chart Also when we redevelop the dialog windows in Sierra Chart, we will see if we can make them what is called "modeless". But at this point this it is just too soon to say. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
