can we customize the MENU bar to include time periods 30sec and 15sec
View Count: 1561
| [2017-10-26 13:50:25] |
| bala - Posts: 74 |
|
Currently I can see only 1min as the lowest value from the menu . For 30 sec I have to go to the chart settings. Can I customize the menu to include 30 sec and 15 sec? Thanks |
| [2017-10-26 15:02:09] |
| Xfanman1 - Posts: 320 |
|

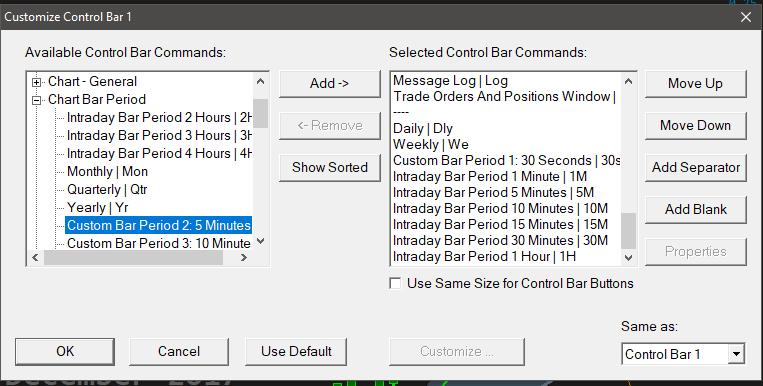

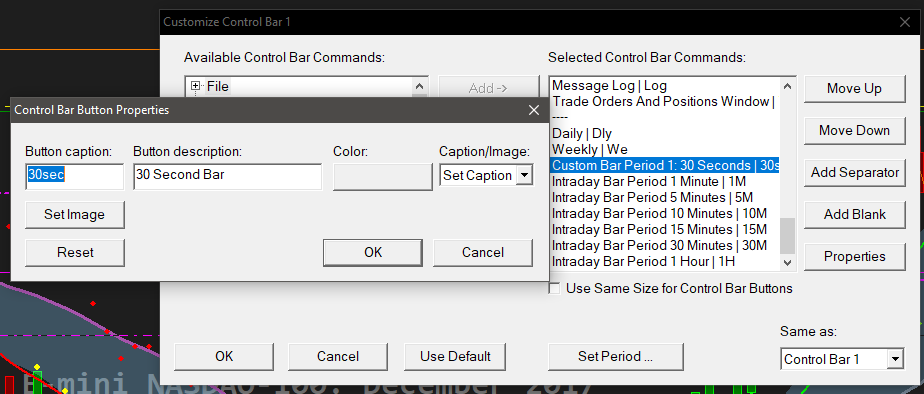

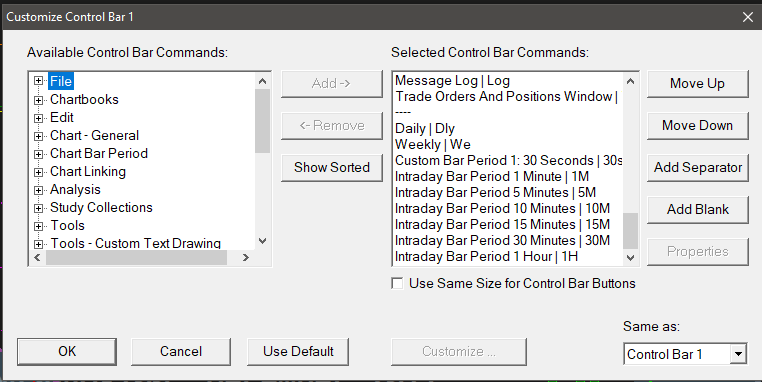

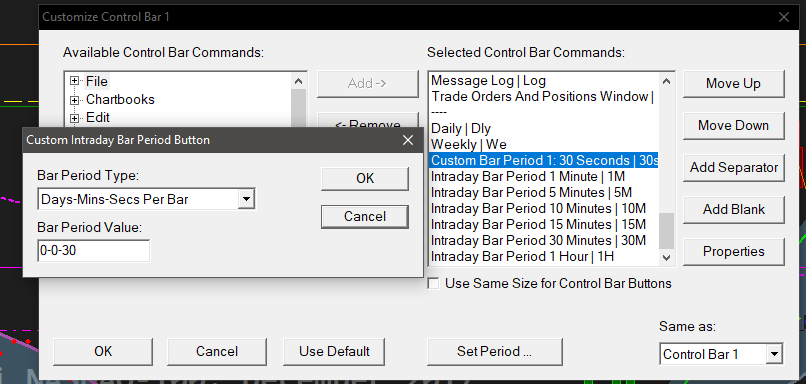

Add a Custom Time Period Button to your menu. See the images below but right click on the menu bar and select Customize Control Bar. Then add your settings by selecting the Custom Time Period, modify it to your timeframe and then label it by changing the button properties as shown.
|
 30 Second Button.PNG / V - Attached On 2017-10-26 14:58:57 UTC - Size: 28.76 KB - 383 views Custom Bar Period.PNG / V - Attached On 2017-10-26 14:59:27 UTC - Size: 31.79 KB - 379 views Set Time Period.PNG / V - Attached On 2017-10-26 14:59:46 UTC - Size: 35.01 KB - 363 views Button Properties.PNG / V - Attached On 2017-10-26 15:00:15 UTC - Size: 39.4 KB - 337 views Menu Bar.PNG / V - Attached On 2017-10-26 15:02:01 UTC - Size: 4.61 KB - 340 views |
| [2017-10-26 17:59:26] |
| |
|
You cannot customize the menu but you can add your own custom Control Bar buttons for time periods: Control Bar: Custom Buttons for Intraday Chart Bar Period That is very good of you to provide those screenshots in post #2, but Sierra Chart already has complete documentation for this. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
