[Programming Help] - How to display data on retracement lines as per buffer order
View Count: 727
| [2016-11-08 11:14:52] |
| User429169 - Posts: 14 |
|
Hello, Why the data is not display in order as in arr4 and arr5. It is displaying in ascending order or high to loaw. How to display the data in arr4[] or arr5[] order. This piece of code for one retracement and another retrace is similar but with different number with arr5 float arr4[50] = { 0.87, 1.09, 1.53, 7.41, 9.80, 11.98, 61.00, 72.98, 88.89, 99.35, 100.00, 100.00, 2.18, 2.83, 3.27, 3.70, 4.88,5.45,6.75};
float arr5[50] = { 100.00, 98.47, 88.45, 76.47, 63.83, 50.98, 40.31, 16.78, 13.73, 9.15, 6.97, 5.88, 5.01, 4.14, 3.92, 2.83, 1.74, 0.65}; Tool.ChartNumber = sc.ChartNumber; Tool.DrawingType = DRAWING_RETRACEMENT; Tool.ExtendLeft = 0; // .ExtendLeft = 1; int &LineNumber1 = sc.GetPersistentInt(1); if (LineNumber1 != 0) Tool.LineNumber = LineNumber1; // Update BarIndex to 40 bars from the end BarIndex = sc.ArraySize - 16; BarIndex = max(BarIndex, 0); Tool.BeginDateTime = sc.BaseDateTimeIn[BarIndex]; Tool.EndDateTime = sc.BaseDateTimeIn[sc.ArraySize - 1]; Tool.BeginValue = sc.High[sc.ArraySize - 1]; Tool.EndValue = sc.Low[BarIndex]; Tool.Color = RGB(0, 0, 255); // Blue Tool.AddMethod = UTAM_ADD_OR_ADJUST; for (int i = 0; i < 30; i++) { Tool.RetracementLevels[i] = arr4[i]; } Tool.ShowPrice = 1; Tool.ShowPercent = 1; Tool.RoundToTickSize = 0; Tool.TextAlignment = DT_RIGHT; //DT_VCENTER; // label vertical alignment sc.UseTool(Tool); LineNumber1 = Tool.LineNumber;//Remember line number which has been automatically set Thank You, Answers Appreciated[/i][/i][/i] Date Time Of Last Edit: 2016-11-11 10:56:52
|

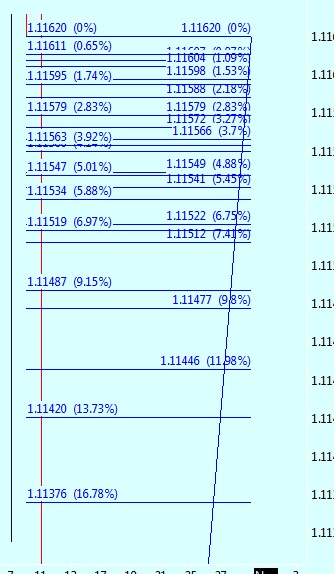

 retracement-order.jpg / V - Attached On 2016-11-08 11:08:30 UTC - Size: 65.57 KB - 260 views |
| [2016-11-11 07:28:59] |
| User436215 - Posts: 1 |
|
Hello All, Any solution to this? Thank You, Answers Appreciated |
