[User Discussion] - Color Bar BAsed on Alert COndition Output
View Count: 1875
| [2016-01-11 18:40:46] |
| User121729 - Posts: 37 |
|

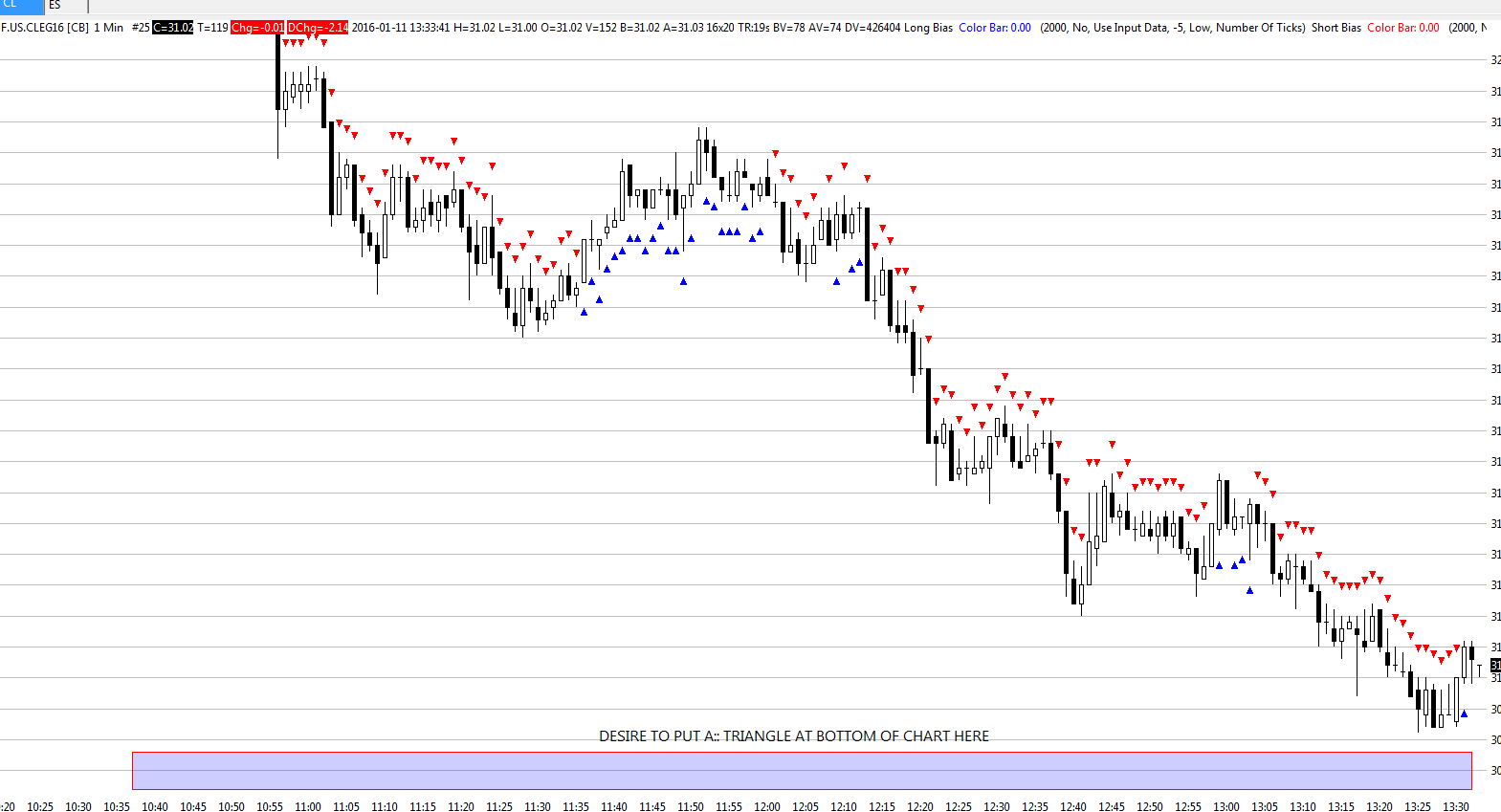

I have a color bar based on alert condition study that outputs triangles. I desire to place teh triangles at the bottom(or possibly top) of my chart versus somewhere on the chart. I have attached a chart for reference and indicated where I would like to place these triangles. Can this be acomplished?
|
 Markers at Bottom of CHart.png / V - Attached On 2016-01-11 18:40:07 UTC - Size: 45.86 KB - 398 views |
| [2016-01-12 06:49:11] |
| jackw - Posts: 57 |
|
Fairly easy to do. The attached picture shows a simple example where green arrows indicate a higher high than the previous bar and red arrows indicate a lower low than the previous bar. You can go through the attached chartbook to see how I did it. Note that the chartbook expects to find data for the symbol 'ES-201603-GLOBEX' when it opens. So, if you don't have data for that symbol, just change the symbol name to something you do have after you open it. |
 Chartbook1.cht - Attached On 2016-01-12 06:48:24 UTC - Size: 57.41 KB - 479 views Chartbook1.png / V - Attached On 2016-01-12 06:48:35 UTC - Size: 109.87 KB - 379 views |
| [2016-01-12 13:12:54] |
| User121729 - Posts: 37 |
|
I think than works jackw......... Thank you sir!
|
| [2016-01-12 21:59:44] |
| User380760 - Posts: 88 |
|
What's the purpose for horizontal lines?
|
| [2016-01-13 00:09:42] |
| jackw - Posts: 57 |
|
When the "Color Bar Base On Alert Condition" study is placed in a subgraph region by itself, part of the triangle drawing can get cut off. Since this study returns the value 1 when a condition is true, I added hidden horizontal lines at 0.5 and 1.5 to vertically center the triangle drawing within the region. I had originally tried using a "User Defined" Scale to accomplish the same thing without these lines, but I couldn't get it to work. |
| [2016-01-15 03:58:54] |
| |
|
We have created an example here to demonstrate how this can be done: http://www.sierrachart.com/index.php?page=doc/AdditionalFiles.php Refer to #36 on that page. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2016-01-15 04:17:51] |
| User380760 - Posts: 88 |
|
I want to add color arrow or dot to the existing indicator, eg, TRIX, but the arrow/dot are not at zero line, but at the top edge, and only half shown. How can I show that on zero line?
|
| [2016-01-15 04:31:26] |
| |
|
Provide an image of the chart, by following these instructions: http://www.sierrachart.com/index.php?l=PostingInformation.php#Image Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2016-01-15 04:46:06] |
| User380760 - Posts: 88 |
|
see attached
Date Time Of Last Edit: 2016-01-15 04:46:23
|
| 2016-01-14_23-44-56.png / V - Attached On 2016-01-15 04:46:19 UTC - Size: 40.33 KB - 379 views |
| [2016-01-16 01:06:51] |
| |
|
Refer to the documentation here: http://www.sierrachart.com/index.php?page=doc/doc_ChartStudies.html#AddingHorizontalLine Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2016-01-16 02:16:33] |
| User380760 - Posts: 88 |
|
this doc reference is not helpful at all. I have no problem put a horizontal 0 line together with trix. However, when I add the color bar into the same region, if automatic, the trix line is flat. If I choose independent, the arrows only half show, but at the top of the region. I tried all the scale options, none works.
|
